A Comprehensive Analysis of SAS Cables: 8654, 8087 and High-Performance Storage Connections
In today's data-intensive computing environment, the performance and reliability of storage systems are directly dependent on the connecting components. SAS (Serial Attached SCSI) technology, as the mainstream interface for enterprise-level storage, has seen its physical connection solutions evolve through multiple generations, resulting in a variety of cable standards. This article will delve into the analysis of three key components: SAS 8654 4i cable, SLIM SAS 8654 8I to MINI SAS 8087 cable, and SFF 8087 cable, exploring their roles and applications in high-performance storage architectures.
Core Standard Analysis: From Interface Form to Performance Differences
First, let's clarify the technical standards involved in these cables. The SFF 8087 cable was a classic design widely used in the SAS 2.0 era. Its Mini SAS HD interface provides 4-channel connections, with each channel having a theoretical bandwidth of 6Gb/s. This SFF 8087 cable, with its stable electrical characteristics, was the mainstay for connecting storage arrays and server backplanes in the early days and is still in service in many traditional data centers.
With the introduction of the SAS 3.0 standard, the SAS 8654 4i cable emerged. This cable, featuring the SFF-8654 interface, achieves a single-port 4-channel 12Gb/s transmission rate, doubling the bandwidth of its predecessor. Notably, the SAS 8654 4i cable maintains high performance while optimizing space usage. Its compact design is particularly suitable for high-density storage environments. Many modern all-flash arrays rely on this SAS 8654 4i cable to achieve high-speed interconnection between controllers and hard disk expansion cabinets.
Hybrid Connection Solutions: The Bridge Between Old and New Standards
In actual storage upgrade and expansion scenarios, it is common to encounter the mixed use of new and old equipment. In such cases, the SLIM SAS 8654 8I to MINI SAS 8087 cable plays a crucial bridging role. This conversion cable features two SFF-8654 interfaces (totaling 8 channels) on one end, which are in the style of SAS 8654 4i cables, and two SFF 8087 cable standard Mini SAS interfaces on the other end.
The design of the SLIM SAS 8654 8I to MINI SAS 8087 cable takes into account compatibility and performance balance. When enterprises connect new-generation SAS 3.0 controllers with still-in-use SAS 2.0 hard disk expansion cabinets, this SLIM SAS 8654 8I to MINI SAS 8087 cableensures the system operates normally while maximizing the value of existing equipment. In actual deployment, the length selection and signal integrity of the SLIM SAS 8654 8I to MINI SAS 8087 cable become key considerations.
Application scenarios and deployment considerations
In hyper-converged infrastructure, the SAS 8654 4i cable is often used for inter-node storage network interconnection due to its high bandwidth characteristics. In contrast, the traditional SFF 8087 cable is more commonly found in the connection between hard disk backplanes and RAID controllers. The SLIM SAS 8654 8I to MINI SAS 8087 cable is mainly used during the transition period of hybrid architectures. When enterprises gradually replace SFF 8087 cables with the newer SAS 8654 4i cables, this conversion cable ensures a smooth upgrade process.

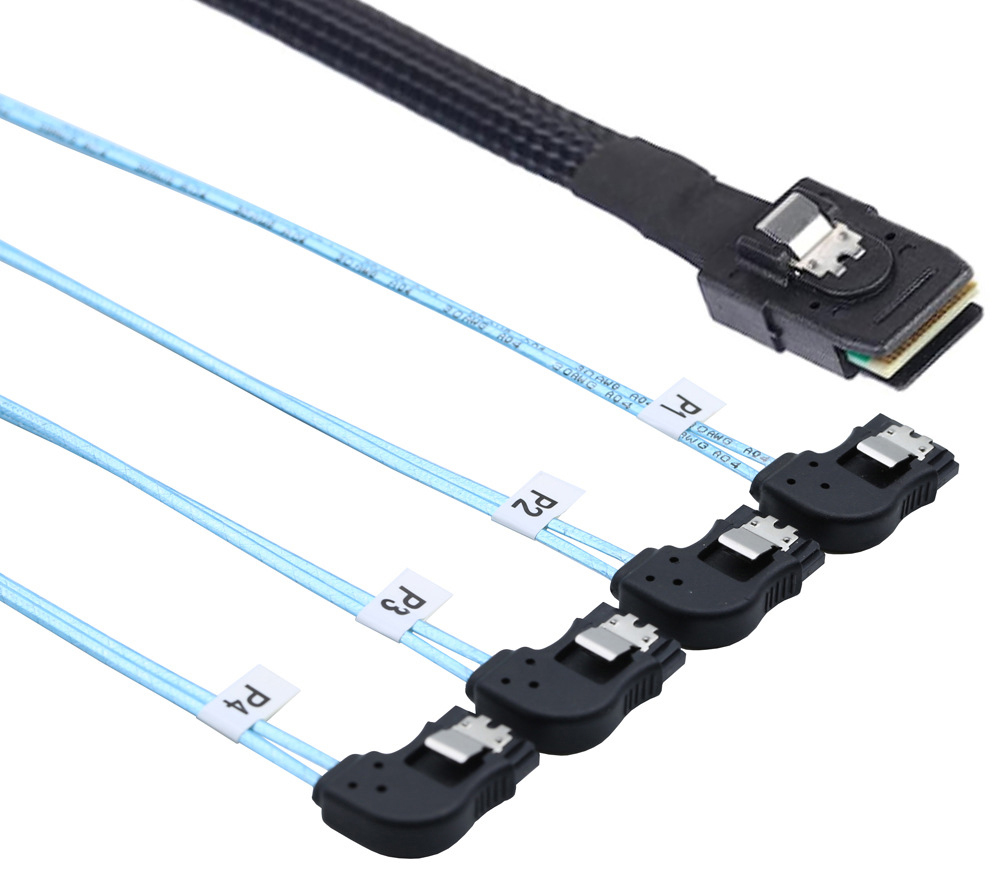

When choosing these cables, it is important to note that the SAS 8654 4i cable comes in internal and external versions; the SFF 8087 cable needs to be distinguished between straight-through and branch configurations; and the SLIM SAS 8654 8I to MINI SAS 8087 cable must support the required transmission rate downgrade compatibility. Cable quality directly affects the bit error rate and system stability, so it is recommended to choose products certified by the SFF standard.
Technical evolution and future outlook
With the advancement of the SAS 4.0 standard, 24Gb/s interfaces are gradually entering the market, but the SAS 8654 4i cable and its related products will remain important for several years. For many enterprises, making full use of the existing SFF 8087 cable infrastructure and achieving progressive upgrades through transition solutions such as the SLIM SAS 8654 8I to MINI SAS 8087 cable is a more economical and practical choice.
Whether it is the classic SFF 8087 cable, the mainstream SAS 8654 4i cable, or the SLIM SAS 8654 8I to MINI SAS 8087 cable as a transitional solution, they collectively form a solid foundation for enterprise storage connections. Understanding the characteristics and application scenarios of these cables will help IT architects make the best choices in terms of performance, cost, and compatibility, and build more efficient and reliable data storage architectures.
