Analysis of Mini SAS Connectors
In modern data storage and server systems, cables serve as crucial components for connecting hardware devices, and their types and performance directly affect the efficiency and reliability of data transmission. MINI SAS 36P to SATA 7P Male cables, MINI SAS 8087 cables, and MINI SAS 8087 to SATA 7P Male cables are three common connection solutions widely used in enterprise-level storage arrays, server backplanes, and hard disk expansion scenarios. This article will detail the features and applications of these cables and explore their significance in practical use.
Firstly, the MINI SAS 36P to SATA 7P Male cable is an efficient data transmission cable designed to convert a MINI SAS 36-pin interface (typically used for high-speed SAS devices) into multiple SATA 7-pin interfaces (suitable for SATA hard drives). This cable supports the SATA III standard and offers a transmission rate of up to 6Gbps. It is often used to connect multiple SATA drives to a SAS controller, thereby enhancing the flexibility and scalability of storage systems. For instance, in data centers, the MINI SAS 36P to SATA 7P Male cable can easily connect SAS host adapters to SATA SSDs or HDDs, enabling hybrid storage configurations.
Secondly, the MINI SAS 8087 cable is another common type of connection cable, based on the SFF-8087 standard, featuring a 36-pin interface. It is mainly used for internal connections, such as linking RAID controllers to hard disk backplanes. This cable supports the SAS 2.0 protocol, with a transmission rate of up to 6Gbps, and allows multiple devices to transfer data through a single cable, enhancing the efficiency of system integration. The MINI SAS 8087 cable is extremely common in servers and storage devices because it simplifies cabling, reduces space occupation, and ensures signal integrity.

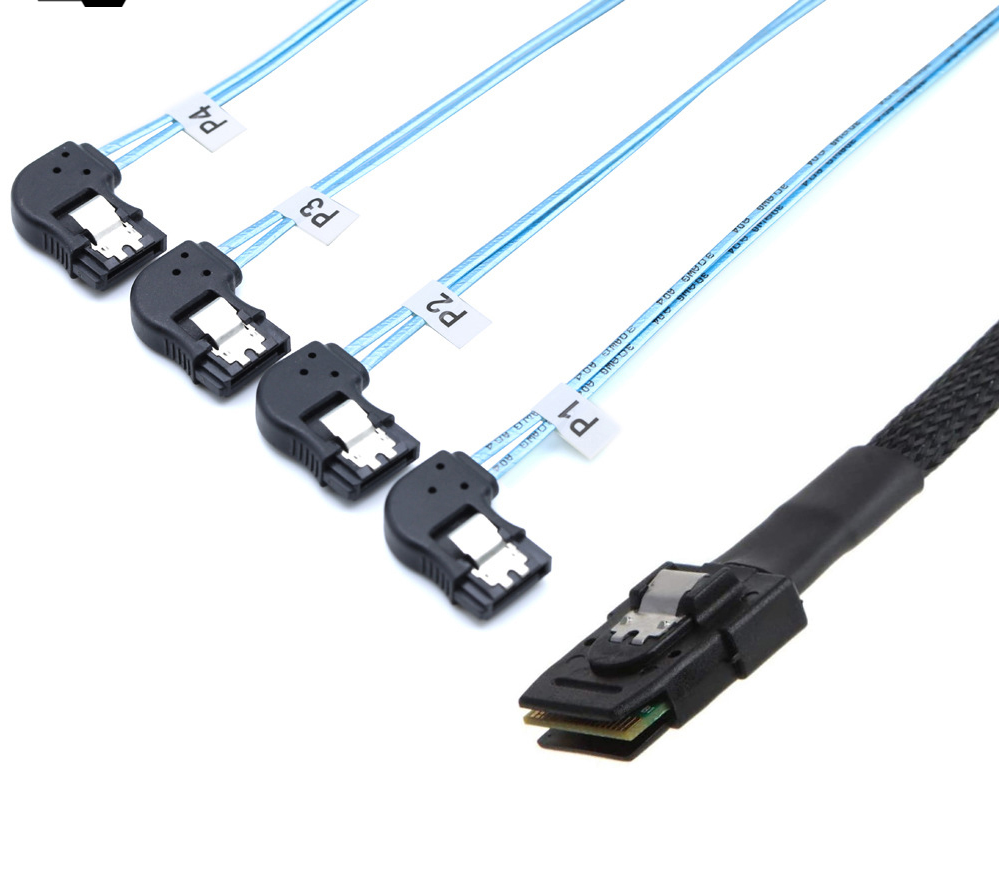

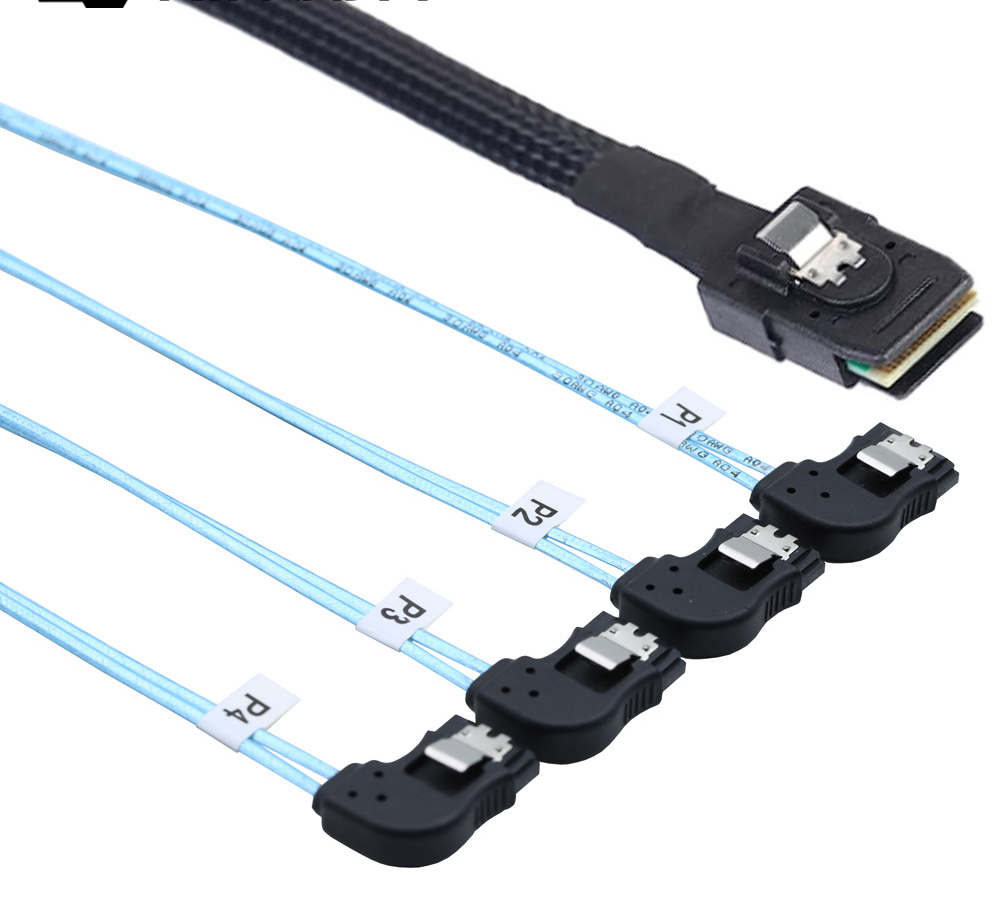

Finally, the MINI SAS 8087 to SATA 7P Male cable combines the advantages of the previous two. It converts the MINI SAS 8087 interface into multiple SATA 7-pin interfaces, enabling users to directly connect SAS controllers to SATA drives. This cable is particularly suitable for upgrading or expanding storage systems. For instance, in enterprise environments, using the MINI SAS 8087 to SATA 7P Male cable allows for the quick addition of extra SATA hard disks without the need to replace the existing controller. It not only supports high-speed data transfer but also is compatible with hot-swapping, ensuring system reliability and maintainability.
In summary, the MINI SAS 36P to SATA 7P Male cable, the MINI SAS 8087 cable, and the MINI SAS 8087 to SATA 7P Male cable play crucial roles in modern storage architectures. By providing efficient connection solutions, they help enterprises optimize data flow, reduce costs, and enhance performance. When choosing, users should select the appropriate cable type based on specific requirements such as transmission rate, device compatibility, and cabling environment to ensure the best system operation. Whether deploying new systems or upgrading old equipment, these cables are indispensable components.
