Interchanges and Dedicated Ramps of the Data Highway A Brief Analysis of the MINI SAS 8087 and 8087-8482 Adapter Cable
In the enterprise-level storage and high-end workstation fields, efficient and reliable data transmission is a core requirement. During this process, various cables play a crucial role as "data arteries". Today, we will focus on two important types of cables: the universal MINI SAS 8087 CABLE (SFF-8087 cable) and the SAS SFF 8087 TO SFF 8482 cable with specific conversion functions, revealing their roles, differences, and application scenarios.
I. The Foundation Choice: MINI SAS 8087 CABLE (SFF-8087 Cable)

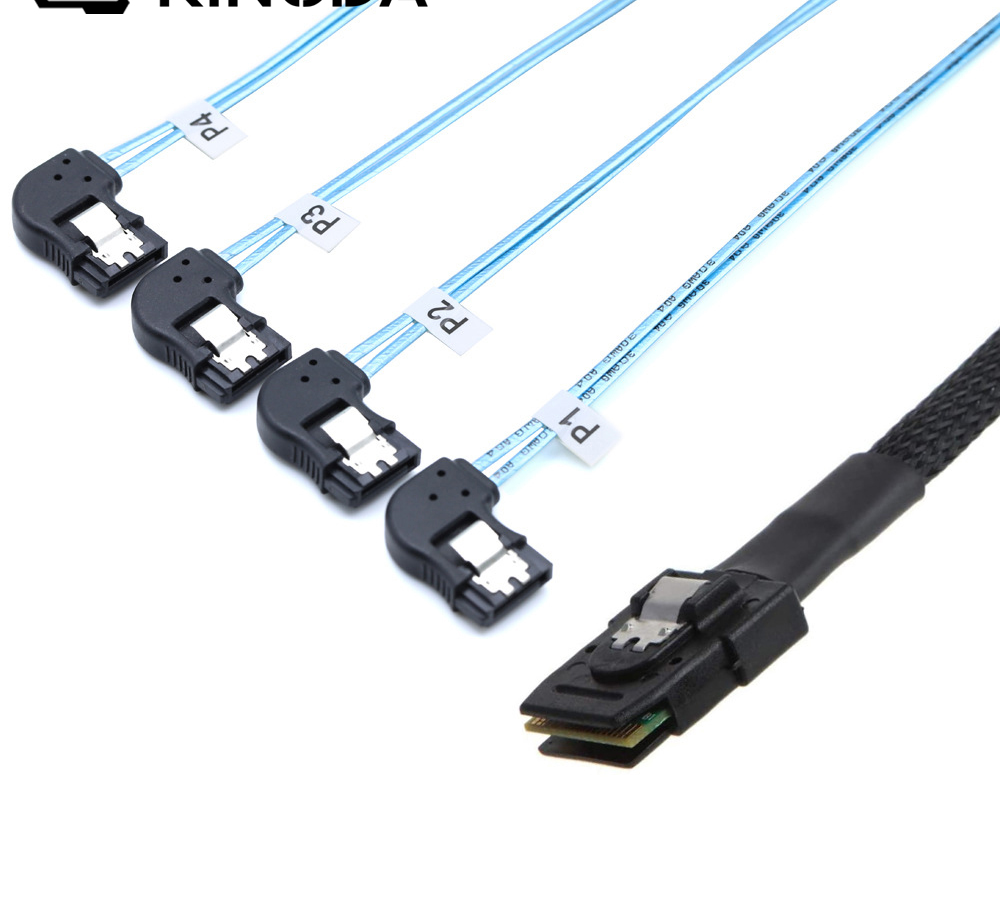

First, let's understand the basic component - the MINI SAS 8087 cable. The "8087" here refers to its connector type, following the SFF-8087 standard.
Physical Characteristics: One end or both ends of this cable use a compact, 36-pin "Mini SAS" connector. It is usually wider and more sturdy than the traditional SATA data interface, with a convenient snap-lock mechanism to ensure a secure connection and prevent accidental detachment.
Technical Specifications: A standard SFF-8087 cable integrates 4 independent SAS or SATA channels. Under the SAS 2.0 (6Gbps) standard, the single channel bandwidth is 6Gbps, and the aggregated total bandwidth can reach 24Gbps. It is backward compatible with SAS 1.0 (3Gbps).
Core Function: Its main role is to perform high-bandwidth, multi-channel data transmission within the storage system.
Typical Application Scenarios:
1. Connecting HBA/RAID cards to the backplane: This is the most common use. Connect the SFF-8087 interface on the HBA or RAID card directly to the hard drive backplane inside the server chassis.
2. Implementing multi-disk connection: With one cable, you can manage up to 4 disks on the backplane, greatly simplifying the wiring inside the chassis.
3. In simple terms, the MINI SAS 8087 CABLE is the "main artery" for building internal connections in modern servers and storage arrays.
II. Special Bridge: SAS SFF 8087 TO SFF 8482 Cable (Conversion Cable)
Now, let's look at the more targeted SAS SFF 8087 TO SFF 8482 cable. The name of this cable clearly reveals its mission - conversion and adaptation.
Connector Parsing:
One end (SFF-8087): As mentioned above, it is a 36-pin Mini SAS connector used to connect HBA cards or RAID cards.
The other end (SFF-8482): This is a very unique connector. It combines the SAS data interface and the SATA power interface into one. The data part has a shape similar to the SATA data interface, but it has an additional pin for SAS communication, and next to it, a 4-pin SATA power socket is directly integrated.
Core Function: This cable essentially serves as a "bridge", converting the multi-channel Mini SAS ports on the motherboard or HBA card into interfaces that can directly connect a single hard drive with SAS interface (or SATA hard drive).
Unique Advantages and Application Scenarios:
1. Direct connection to enterprise-level SAS hard drives: In many scenarios where direct connection rather than through the backplane is required, such as certain workstations, small servers, or storage expansion cabinets, using this cable can directly provide data (via the SFF-8482 interface) and power (via the integrated power port) to SAS hard drives.
2. Simplified wiring: It solves the problem of data and power transmission with a single cable (of course, the power end still needs to be connected to the SATA power line from the power supply), making the system interior more tidy.
3. Compatible with SATA hard drives: Although the SFF-8482 interface was originally designed for SAS hard drives, it can also perfectly connect SATA hard drives because they are physically and electrically compatible downward.
In summary, the SFF 8087 to SFF 8482 cable is a "one-to-one" or "one-to-four" conversion cable. One SFF-8087 port can be split and connected to a maximum of 4 such cables, thereby directly driving 4 SAS or SATA hard drives.
III. Comparison Summary: How to Choose?
To more intuitively understand the differences between the two, please see the following comparison:
Features: MINI SAS 8087 CABLE (Straight Connection) SAS SFF 8087 TO SFF 8482 Cable (Conversion Cable)
Main Function: Internal backbone connection within the system Direct connection from port to hard drive
Typical Connections: HBA/RAID card ↔ Hard drive backplane HBA/RAID card ↔ Single SAS/SATA hard drive
Connectors: SFF-8087 ↔ SFF-8087 SFF-8087 ↔ SFF-8482
Power Supply Method: Power supply to hard drives through the backplane Direct power supply through the integrated SATA power port
Applicable Scenarios: Standard server chassis, storage array Workstations with direct connection to hard drives, servers without backplanes or hard drive enclosures
Conclusion
When building or upgrading your storage system, choosing the right cables is of utmost importance.
If you need to connect the HBA card on the server motherboard to the hard drive backplane provided by the chassis, then the MINI SAS 8087 CABLE is your standard and sole choice.
If you need to directly connect the Mini SAS port on the HBA card to a single SAS enterprise-level hard drive or a SATA hard drive that requires direct power supply, then the SAS SFF 8087 TO SFF 8482 cable is the specialized tool for this task.
Understanding the subtle differences between these two types of cables not only ensures hardware compatibility but also optimizes the air circulation and wiring management within the system, thereby constructing a more stable and efficient data storage solution.
