USB4.0 80G Thunderbolt 4 cable80Gbps Data Transfer aluminum case USB 4.0 Cable 80G 100W Fast Charging 5K@60Hz For Mac Book -JD-CC11

Short Description:

1. Aluminum case USB4 cable

2. Gold plated connectors

3. Conductor: Tinned Copper

4. Gauge: 22/32AWG

5. Jacket: PVC jacket with special technology shielding

6. Length: 1M/ 2M/3Mthers.

7. Support 3840×2160, 2560×1600, 2560×1440, 1920×1200, 1080p and etc. 4k@60HZ

8. All materials with Rosh complaint

we can Accept customization according to customer’s requirement.

Send email to us

Product Detail

Product Tags

Applications:

The USB4 cable 80Gbps Type C cable widely used in COMPUTER, Mobile Phone, MP3 / MP4 Player, Video, etc

Detail:

【40Gbps Data Transfer】

USB C to USB C Cable supports data transfer rates up to 40Gbps, 80x faster than USB 2.0 Type C cable, only a few seconds with an

HD movie. And large files will be finished in seconds. Note: The actual data transfer denpens on the size and type of files.

【100W Power Delivery】

With E-marker chip inside, this USB C to USB C cable offers rapid charge up to 20V/5A (max). Your new 87W 15” MacBook Pro at full speed. Besides, it supports Quick charge QC 3.0 and PD rapid charging (with PD charger). NOTE: Please confirm that your mobile phones will support PD fast charge protocol.

【5K@60Hz Video Output】

This USB 4 Type C cable offers 5K@60Hz video output function from USB C laptops to USB C display or monitor, which is easy for you to enjoy watching TV shows, streaming videos and movies to a lager screen! Ideal accessories for your USB C devices for work, home use, business trip and more. NOTE: Both of the laptop and monitor should support 5K resolution.

Utral durability and shielding performance

The connector shell and contact part will usually use metal materials, such as brass, phosphor bronze and so on. These metal materials have good electrical conductivity and mechanical strength, to ensure a stable connection between the connector and the equipment, and can withstand multiple insertion and extraction and not easy to damage. Metal shell can also play a role in shielding electromagnetic interference, improve the stability of signal transmission.

Product Detail Specifications

80 Gbps USB4.0 male to male metal case cable

Physical Characteristics Cable

Length 1M/2M

Color Black

Connector Style Straight

Product Weight

Wire Gauge 22/32WG

Wire Diameter 4.5 mm

Packaging InformationPackage

Quantity 1Shipping (Package)

Weight

Product Detail Specifications

Connector(s)

Connector A USB C Male

Connector B USB C Male

Aluminum case USB 4 100W 80Gbps cable

Contact gold plated

Color Optional

Specifications

Electrical
Quality Control system	Operation according to regulation & rules in ISO9001
Voltage	DC300V
Insulation Resistance	2M min
Contact Resistance	5 ohm max
Working Temperature	-25C—80C
Data transfer rate	8K@60HZ

Previous: USB3.1 USB 3.2 5A 100W Type C Male To USB C male 20Gb Gen 2 with E-mark Fast Charging High speed USB C PVC mold EMI case-JD-CC09

Next: Rated for high temperature above 200 degrees (suitable for automotive applications) silicone USB 3.1 USB C male TO USB A male 10G High speed cable-JD-CA02

What are all the interface types in the USB 3.0 series?

The USB 3.0 interface mainly consists of the following types, classified according to their shapes and sizes.

Standard Type-A interface

This is the most common USB interface, usually used to connect devices such as mice and keyboards to a computer. The Type-A interface of USB 3.0 has 9 metal contacts, and the interface itself is usually blue to distinguish it from the 4 metal contacts of USB 2.0.

Standard Type-B interface

This type of interface is commonly used for devices such as printers and monitors. The Type-B interface of USB 3.0 also has 9 metal contacts and is backward compatible with USB 2.0 devices.

Micro Type-B interface

This type of interface is smaller and is commonly found in early Android phones and other devices. The Micro Type-B interface of USB 3.0 has 9 metal contacts, while the Micro Type-B interface of USB 2.0 has 5 metal contacts.

Type-C interface

Although the Type-C interface is not specifically exclusive to USB 3.0, both USB 3.1 Gen 1 (the improved version of USB 3.0) and USB 3.1 Gen 2 (USB 3.1) support the Type-C interface. The Type-C interface supports reverse insertion as well and has a faster transmission speed.

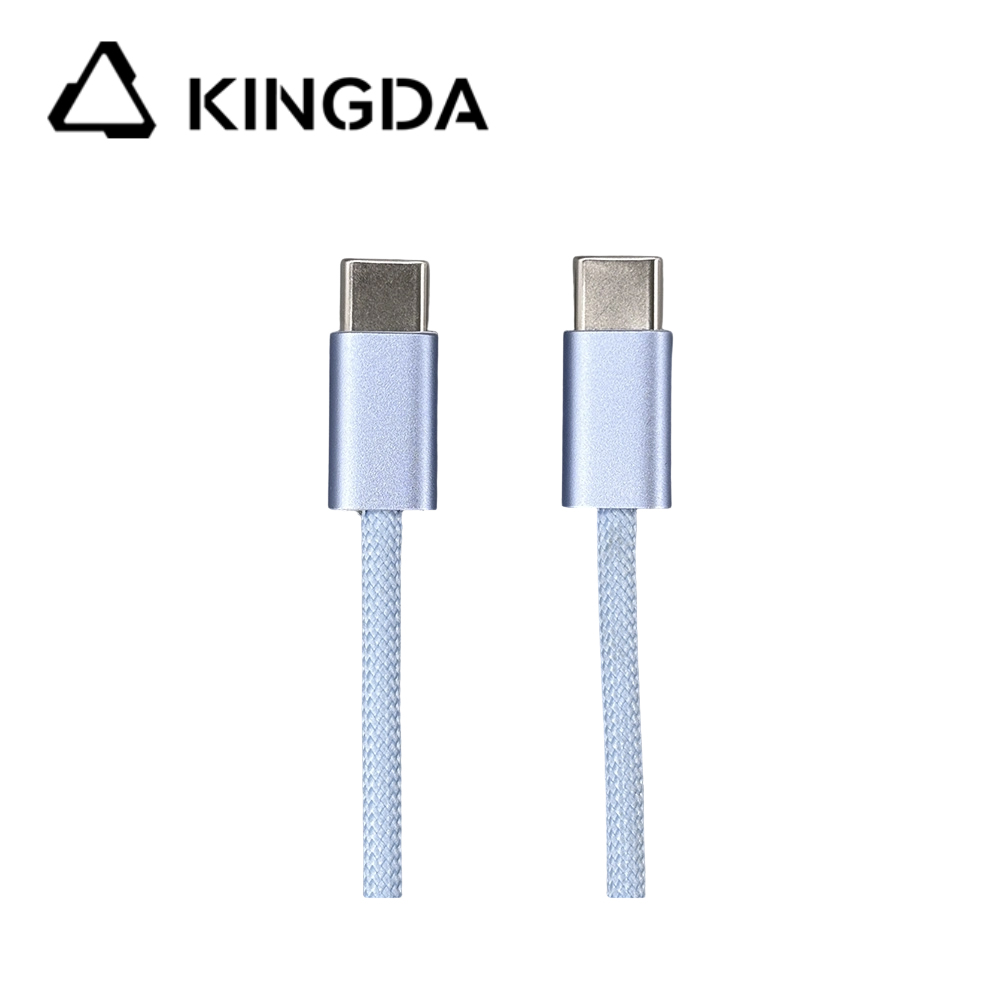

100W aluminum case USB4.0 80G cable
