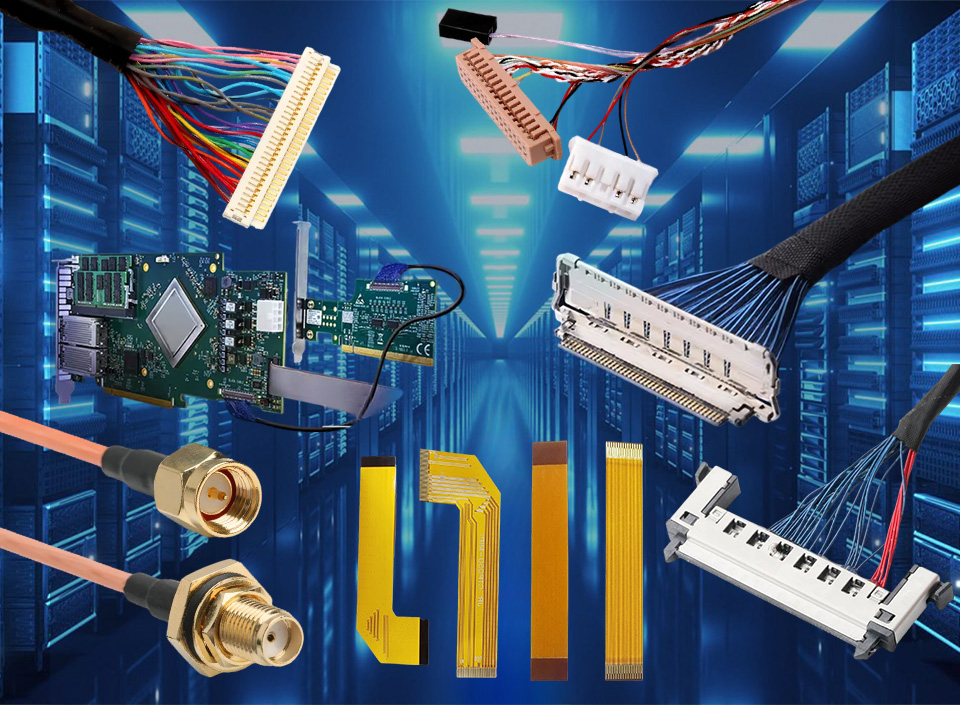

Specialized manufacturer of customized industrial cables
Custom Micro Coaxial、JAE、Molex、RF 、industrial Cable Manufacturer
All products, including length, casing, printing and packaging, can be custom-designed and produced according to customer requirements.Custom-made
- 1.Fully Customizable: Length, connector, materialstailored to your needs.
- 2.Quick Prototyping: Samples ready in 1-3 days, flexible batch production.
- 3.Certified Quality: Gold-plated contacts & RoHScompliant.
- 4.Engineering Support: Professional advice & seamlessintegration
- 5.Global Delivery: Stable supply for worldwide clients：Length, connector, materialstailored to your needs.
Our Specialized Industrial wiring harness Cable Solutions
We specialize in customizing Micro Coaxial 、RF、Industrial cable solutions for demanding application scenarios such as shock resistance, EMI、and high resolution. We also accept small-batch mixed customization orders.
-
Locking structure design
The locking design can effectively prevent signal instability transmission in high-vibration and swaying application scenarios.
&Locking structure
& The male and female parts are tightly
coupled to prevent vibration
& Elastic keys enable the wire to be easi... -
High-definition resolution
High-reliability LVDS connection solution, ensuring high-speed data transmission, achieving high-definition, stable and interference-free display
& High-speed and low-loss transmission, unlocking the potential of high-definition images.
& Using the **differential pair (Differential Pair)** structure, the positive and negative signals cancel out electromagnetic interference.
& The internal structure of the wire is controlled to achieve the characteristic impedance through the design of conductor spacing, insulation thickness and shielding layer. -
Bending application scenarios
Realize the stable transmission of cables in a highly curved environment
& Excellent torsion resistanceperformance
& Capable of withstanding repeatedbending, stretching and twisting...
-
Full EMC Shielding
It is specifically designed to reduce electromagnetic interference, maintain signal integrity, and ensure reliable data transmission in harsh environments.
& Foil, braid, or multi-layershielding
structures
& Optimized for
industrial,Sever,Data Center
Custom All kinds Of Industrial wiring harness Cables,Provide Total Solution
Dongguan Jingda delivers solutions from copper and RF cables depend on your actual detailed specifications such as length, connector, material, sleeve, etc. Enjoy the ease of one-cable-fits-all solutions.
- Supply data, signal, power
- Compatiable with EMI
- Transmission Resolution: 4K,8K
- Minimum wire diameter: 46AWG
- Compatible with JAE, JST, Mloex
- Certified By CE FCC
-
30PIN 1.0 pitch, LVDS LCD panel Cable Medical equipment wiring harness, robotic wiring harness,...
Short Description:
Get a Quote1. 30PIN 1.0 pitch wire cable
2. Sn or Gold plated connectors
3. Conductor: BC (bare copper),
4. Gauge: 32~36AWG
5. Jacket: pvc jacket with Graphene technology shielding
6. Length: 0.4m/ 0.5m or others. (optional)
7. All materials with Rosh complaint
we can Accept customization according to customer’s requirement.
-
4mm Plugs Gold Plating Musical Speaker Cable Wire Pin Banana Plug Connectors To DC jack cable-JD...
Short Description:
Get a Quote1. Electronic, Automotive, Medical, Mechanical, Robotics and PC wire harness
2. All parts and processing is compliant with ROHS,CCC
3. 26-32AWG UL or International Cable
4.2pin/3pin(customized)
5. RoHS, UL,ISO9001-2015, IATF16949-2016
we can Accept customization according to customer’s requirement.
-
Molex 4pin 1 to 4 IDE SATA 15Pin Hard Drive Power Supply Splitter Cable Cord for DIY PC Sever 4-p...
Short Description:
Get a Quote1. Mo lex 4PIN TO 4 IDE SATA 7PIN CABLE
2. SN/Gold plated connectors
3. Conductor: TC/BC (bare copper),
4. Gauge: 18/22AWG
5. Jacket: Nylon or Tube
6. Length: 0.3m/ 0.5m or others. (optional)
7. All materials with RoHS complaint
we can Accept customization according to customer’s requirement.
-
Aging test wiring harness 2*12-pin aviation plug industrial medical equipment cable Automotive, M...
Short Description:
Get a Quote1. Electronic, Automotive, Medical, Mechanical, Robotics and PC wire harness
2. All parts and processing is compliant with ROHS,CCC
3. 5-32AWG UL or International Cable
4. 0.3/0.4/0.5/0.8/1.0/1.25/1.27/2.0mm/2.54mm(customized)Pitch
5. 2pin-50pin(customized)
6. RoHS, UL,ISO9001-2015, IATF16949-2016
we can Accept customization according to customer’s requirement.
-
Double row LVDS 2*20pin to 2*20pin DuPont EDP converter assembles 40PIN 2.0Pitch LCD TV display L...
Short Description:
Get a Quote1. LVDS 2*20pin to 2*20pin Lvds cable
2. Sn or Gold plated connectors
3. Conductor: BC (bare copper),
4. Gauge: 36AWG
5. Jacket: pvc jacket with Graphene technology shielding
6. Length: 0.5/ 1m or others. (optional)
7. All materials with RoHS complaint
we can Accept customization according to customer’s requirement.
-
0.5 pitch 5~45pin FPC cable LVDS LCD panel Cable,FPC extension cable, Medical equipment wiring ...
Short Description:
Get a Quote1. 0.5 pitch 5~45pin FPC cable
2. Gold or sn plated
3. Length: 0.4m/ 0.5m or others. (optional)
4. All materials with Rosh complaint
we can Accept customization according to customer’s requirement.
-
30PIN 0.5 pitch, LVDS LCD panel Cable Medical equipment wiring harness, robotic wiring harness,...
Short Description:
Get a Quote1. 30PIN 0.5 pitch, Lvds cable
2. Sn or Gold plated connectors
3. Conductor: BC (bare copper),
4. Gauge: 32~36AWG
5. Jacket: pvc jacket with Graphene technology shielding
6. Length: 0.4m/ 0.5m or others. (optional)
7. All materials with Rosh complaint
we can Accept customization according to customer’s requirement.
-
24PIN 0.5 pitch, Teflon Coaxial cable LVDS LCD panel Cable Medical equipment wiring harness, ro...
Short Description:
Get a Quote1. 24PIN 0.5 pitch, Teflon Coaxial cable
2. Sn or Gold plated connectors
3. Conductor: BC (bare copper),
4. Gauge: 32~36AWG
5. Jacket: pvc jacket with Graphene technology shielding
6. Length: 0.4m/ 0.5m or others. (optional)
7. All materials with Rosh complaint
we can Accept customization according to customer’s requirement.
-
544 European standard waterproof industrial cable 16A three-phase 4-hole IP67ab TYP-252 Waterproo...
Short Description:
Get a Quote1 Host/controller connection: TYP-252 Waterproof industrial plug/Socket
2, Fire protection: VW-1
3.RoHS compliant
we can Accept customization according to customer’s requirement.
Structural Patent Technology
This patented technology of the fragment enables the product to be securely connected in a vibrating environment and ensures stable signal transmission. Moreover, when the cable is pulled out, it can be easily removed by simply pressing the "lock" button.
- Supports lightweight and flexible cable design
- Anti-shake and swaying design
- The T-shaped design of the snap-in contacts enables easy removal from the motherboard
- Maintains stable performance during repeated movement
OEM Special Cable Service, One-time Solution For
With our technology and equipment, we are capable of designing and manufacturing various types of PCI-e,MCIO，SAS，Slim SAS cables. We offer a full range of services including custom cable design, production specifications, sample production, sending samples to customers for confirmation, batch production, and logistics distribution.
#1
Bespoke Connections
-
Structural Patent Technology
The locking design can effectively prevent signal instability transmission in high-vibration and swaying application scenarios.
-
90 degrees up and down
An upward 90-degree and downward 90-degree structure is adopted, which facilitates the design of the equipment's angle.
-
90 degrees up and down
An upward 90-degree anddownward 90-degree structure is adopted, which facilitates the...
-
Expand SAS
Male-female extension cable,suitable for adjusting thetransmission distance of the...
#2
Cable Styles
-
round cable (standard)
Multi-layer shielding, supporting the highest 40G signal transmission and providing 5A curren
-
Flat cable
Color-coded wiring design enables quick identification of each signal, enhancing assembly efficiency and connection reliability.
-
Flexible flat cable
Ultra-thin and flat structure, saving space, enabling high-reliability connection of high-definition display modules
-
Differential pair wire
-
round cable (standard)
Multi-layer shielding, supporting the highest 40G signal transmission and providing 5A curren
#3
Premium Material Options
-
Tinned copper
offers excellent oxidation resistance, corrosion resistance, and solderability, providing stable electrical conductivity in long-term, high-reliability electrical connections.
-
Copper
High conductivity, low resistance, low transmission loss, stable conductivity and strong durability, which can provide more efficient and reliable power and signal transmission.
-
Sliver
High-purity copper core combined with silver plating process, low resistance for high-frequency transmission, featuring both stability and long lifespan.
-
Coxial
#4
Jacket Application 1
-
PVC(standard)
High-quality PVC sheath, featuring flexibility, durability, flame retardancy and economy, creating a stable and reliable protective layer for the wire.
-
mesh sheath
Effectively protect the internal wires and extend their service life. High-density weaving protection, effectively resisting wear and tear as well as tension.
-
Graphene
High strength, resistant to wear and bending, lightweight, with excellent heat conductivity and anti-electromagnetic interference performance, enhancing the lifespan and stability of the wire.
-
conductive fabric
The conductive surface shielding design effectively suppresses EMI interference, enhances the high-speed signal integrity, and provides stable and reliable connection assurance for thin and light electronic devices.
Application Areas of Products
We’ve manufactured thousands of cables for all sorts of applications, but we’re especially knowledgeable in these areas.
Get Custom Samples & Quotes
The Jingda Technology Standard - consistent quality, every time,
-

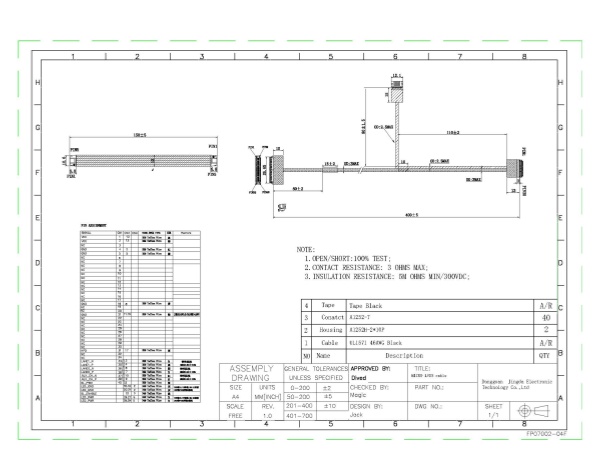

Custom design & Drawing
2D Drawings and drafts of cable assemblies
Rapid Prototyping of molded parts
Material design and cost assessment
V Adjust length, connector, and structure -

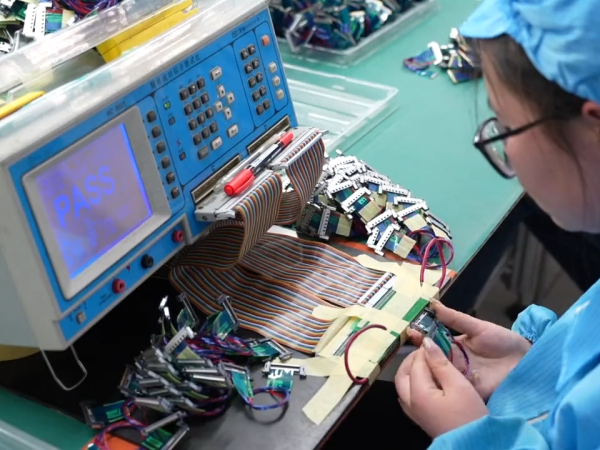

Cable-Connecting-Testing_
Connecting & resistance tests
ROHS/REACH in house testing
Durability tests
Bending tests
-

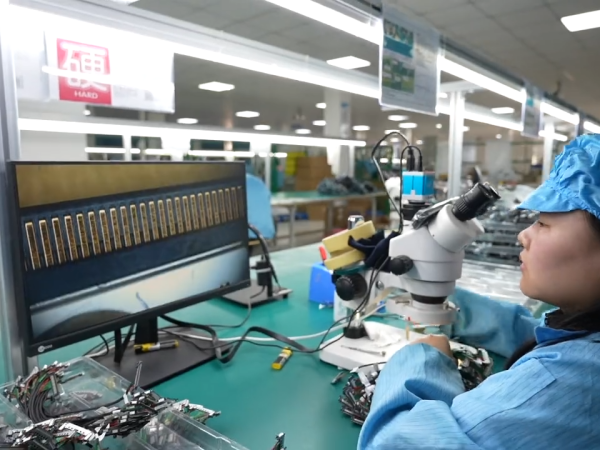

Gold Finger Inspection
- Gold Finger Inspection
- Appearance inspection
- CE Testing Report
- FCC Testing Report

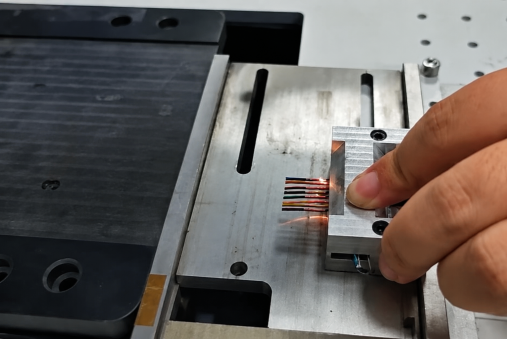

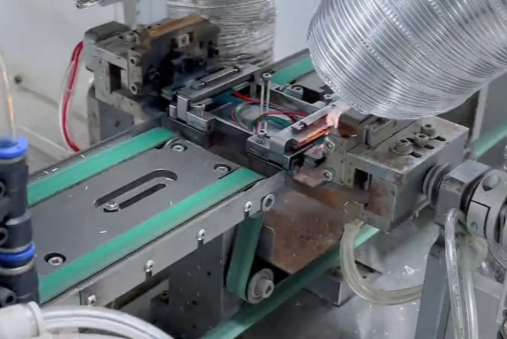

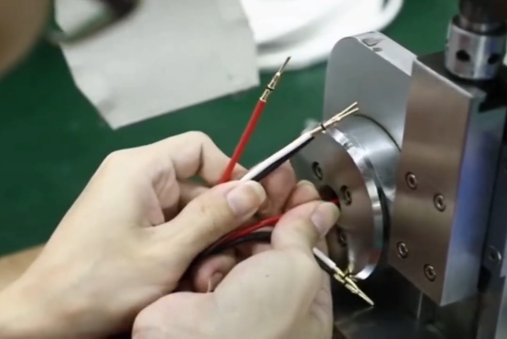

High Speed Industrial wiring harness Cable Manufacturing Process
Unlike most cable manufacturers, Jinda cables not only offer standard cables, but also place greater emphasis on the customized design and production of high-quality cables for specific application scenarios. Provide customers with total solutions
Have face-to-face communication with the buyer
Presenting high-speed wire material solutions at the exhibition, aiming to achieve mutual success with customers in the future.
