From SFF-8087 Pinout to 8643 Port How to Choose the Right Internal and External Interconnect for SAS 2.0 Era？
In servers, workstations, and high-performance storage systems, the selection of interface and connectivity standards directly determines data transfer efficiency and system stability. The keywords—8643 port, SFF-8087 pinout, and SAS 2.0—correspond respectively to connector type, pin configuration, and protocol version. While these three elements appear independent, they often coexist or evolve in tandem within the same storage link. This article will unpack their technical meanings one by one and analyze their practical interrelationships.
1. SAS 2.0: The Channel Foundation of the 6Gbps Era
SAS (Serial Attached SCSI) 2.0 was officially released around 2009 by the T10 Technical Committee. Its core feature is a single-lane data rate increased to 6.0 Gbps (approximately 600 MB/s effective bandwidth). Compared to SAS 1.0 (3 Gbps), SAS 2.0 not only doubles bandwidth but also introduces expanded addressing capability (supporting up to 256 devices instead of 128), an improved expander auto-configuration mechanism, and enhanced error recovery features.
SAS 2.0 is backward compatible with SATA 2.0 and SATA 1.0, enabling systems using SAS 2.0 controllers to connect both SAS and SATA drives simultaneously. Typical application scenarios include 2U 12-drive servers, mid-range RAID cards, and 6Gbps backplane designs.
2. SFF-8087 Pinout: Pin Configuration for Internal Mini SAS 4-Channel Interfaces

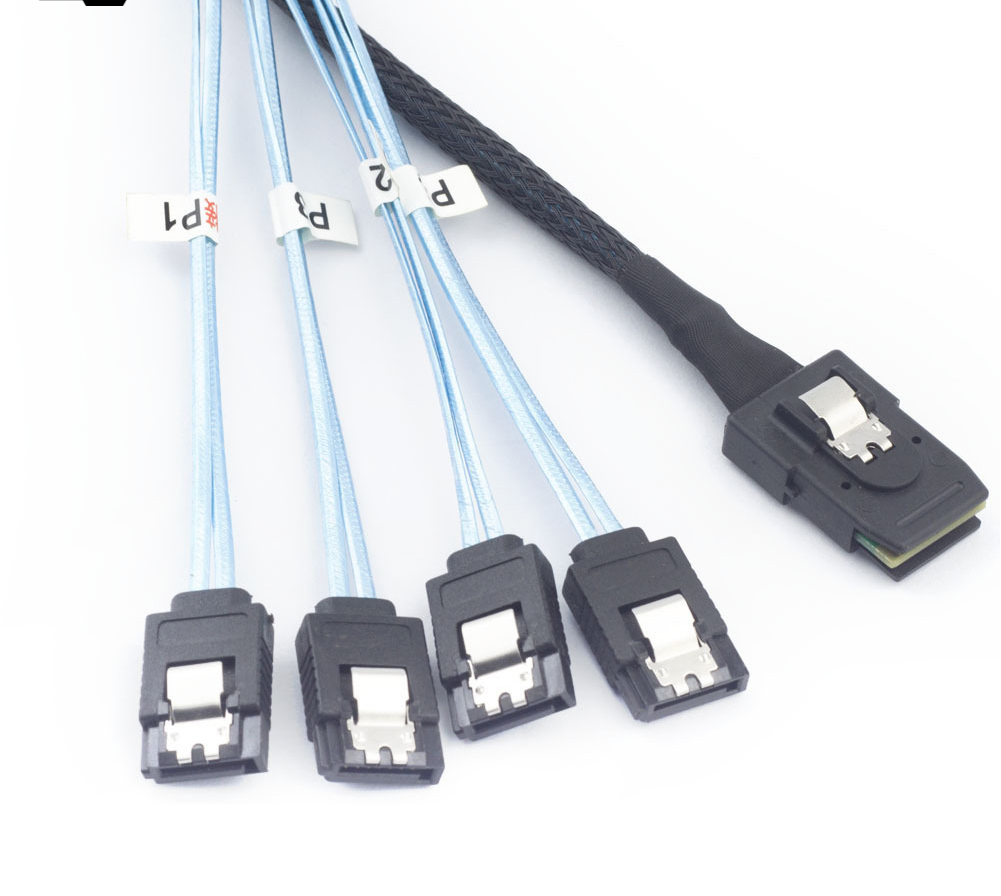

SFF-8087 is an internal mini SAS connector defined by the SNIA SFF (Small Form Factor) committee, commonly known as "Internal Mini SAS 4i" or "iPass." Its pinout defines how four SAS/SATA signals can be transmitted simultaneously over a single cable.
The SFF-8087 socket has 36 pins (with 34 physical contacts, two of which are alignment posts), divided into four differential pairs (lanes 0–3) for transmission, four for reception, plus sideband signals (SIDEBAND) used for LED indicators, activity status, and SGPIO (Serial General Purpose Input/Output) or I²C management bus.
Typical pin assignment logic (using a common direct-connect configuration as an example):
Pins 1–5: TX differential positive/negative and ground for channel 1
Pins 6–10: RX differential positive/negative and ground for channel 1
And so on, with the four channels arranged alternately to ensure signal integrity.

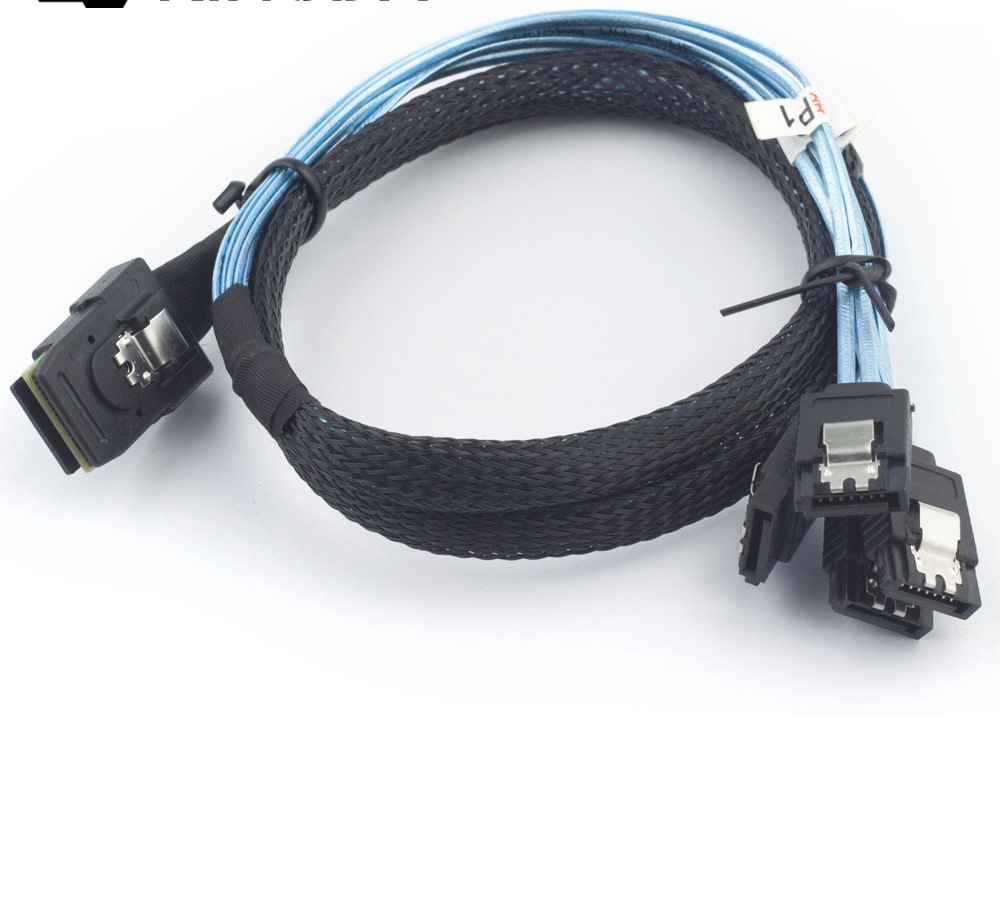

The design goal of SFF-8087 is to establish up to four SAS links between backplanes and RAID cards, each supporting up to 6 Gbps (SAS 2.0 speed). Thus, the theoretical aggregated bandwidth of a single SFF-8087 cable reaches 4 × 6 Gbps = 24 Gbps (raw data rate). In practice, it was widely used in servers and LSI/Avago (now Broadcom) RAID cards from 2009 to 2015, such as the LSI 9260-8i.
III. 8643 Port: Evolution from Mini SAS to Mini SAS HD
The 8643 port refers to the SFF-8643 connector, officially named "Internal Mini SAS HD (High Density) 4i/8i." It is an internal storage interface defined by the SFF-8643 specification and serves as the direct successor to SFF-8087.
Physically more compact than its predecessor, SFF-8643 supports higher signal frequencies—suitable for SAS 3.0 at 12 Gbps and SAS 4.0 at 22.5 Gbps—while still maintaining backward compatibility with SAS 2.0 speeds. Compared to the 36-pin design of SFF-8087, SFF-8643 features more pins (typically 68 or more) and a high-density contact design, enabling support for four or even eight SAS lanes.
In system design, 8643 ports are commonly found on new-generation RAID cards (such as the LSI 9361-8i), backplanes, and NVMe/SAS hybrid expansion cards. For systems still using SAS 2.0 drives but wishing to adopt newer connectors, manufacturers provide SFF-8643-to-SFF-8087 adapter cables to ensure physical interconnect compatibility.
IV. Practical Relationships and Compatibility Pathways Among the Three
Although SAS 2.0 defines the protocol and speed baseline, while SFF-8087 pinout and 8643 port represent physical interfaces, their relationship manifests in several key aspects:
Speed Matching:
The electrical performance of SFF-8087's pin design is sufficient to support 6 Gbps (SAS 2.0), but may not reliably sustain 12 Gbps. In contrast, the 8643 port was designed from the outset to handle higher-frequency signals with improved integrity. Therefore, when upgrading to SAS 3.0, backplane interfaces must transition from SFF-8087 to SFF-8643.
Cable Interoperability:
An internal SFF-8643-to-SFF-8087 cable allows a new RAID card equipped with an 8643 port to connect to an older backplane supporting only SFF-8087, provided both ends operate in SAS 2.0 mode (6 Gbps). In this scenario, the 8643 port effectively functions as an electrical equivalent of the SFF-8087 interface.
Consistent Signal Logic in Pinout:
While the physical layout differs between SFF-8087 and SFF-8643, their signal logic remains consistent: each lane follows the TX+/TX-/GND and RX+/RX-/GND pattern, along with sideband signals. This consistency ensures that adapter cables require only pin remapping, without needing protocol conversion.
V. Typical Troubleshooting and Design Considerations
Common issues encountered in practical engineering involving these three components include:
Misunderstanding that SFF-8087 and SFF-8643 can be directly plugged into each other: The two connectors differ in size and keying, making them incompatible; dedicated adapter cables are required.
Unstable data rates when using an SFF-8643-to-8087 cable on a SAS 2.0 backplane: Verify that the cable is labeled “6G compatible.” Poor-quality cables may introduce crosstalk and degrade performance. Misunderstanding the pinout can lead to burning homemade cables: certain sideband pins on SFF-8087 are 3.3V power supply (used for backplane LED drive), and incorrect grounding or short-circuiting may damage the RAID card.
VI. Conclusion
The 8643 port and the SFF-8087 pinout respectively represent two generations of internal connectors for storage, while SAS 2.0 is the protocol standard they jointly served in the 6Gbps era. Understanding the relationship among the three is helpful for engineers to make correct judgments when dealing with the upgrade of old servers, the replacement of RAID cards, or the debugging of backplane compatibility. In today's context of the widespread adoption of higher-speed SAS 3.0/4.0, SFF-8087 has gradually withdrawn from mainstream designs, but its pinout definitions of signal specifications and design concepts still deeply influence contemporary storage interface standards, including SFF-8643.
