How to select an SFF-8654 to SAS cable？
In the contemporary enterprise-level storage and high-speed interconnection field, the selection of physical interfaces directly determines the system bandwidth, signal integrity, and wiring density. To understand the current mainstream internal and external storage connection schemes, it is necessary to clarify three closely related core concepts: the connection logic from SFF-8654 to SAS, the diverse SAS Cable Connector Types, and the SFF-8654 SlimSAS Connector as the physical layer carrier. These three elements do not exist independently but form a complete technical chain from the protocol layer to the physical layer, from the board end to the cable end.
I. Physical Foundation: The Specification and Characteristics of SFF-8654 SlimSAS Connector
The SFF-8654 SlimSAS Connector is a high-density, multi-protocol universal connector standard issued by the SNIA SFF Committee. The term "Slim" in its name directly refers to its narrow design - compared to traditional Mini SAS HD or QSFP interfaces, it significantly reduces the PCB board area and panel hole size while maintaining the same or higher signal rates.
The core specifications of this connector include:
Number of pins and channel configuration: Commonly there are two mainstream variants, 4X (38-pin) and 8X (74-pin), respectively supporting 4 and 8 high-speed differential pairs.
Rate capability: Electrical performance covers PCIe Gen4 (16 GT/s) to Gen5 (32 GT/s), and is also backward compatible with SAS-3 (12 Gbps) and SAS-4 (22.5 Gbps), making it a physical bridge point for NVMe SSDs and SAS disks.
Key structure: Wrapped in a metal shell, with embedded fish-eye or SMT pins, supporting hot-swappable blind matching design, and featuring a robust locking mechanism to resist vibration environments.
The greatest value of this connector lies in protocol transparency - it does not solidify the transmission protocol but provides a pure high-speed differential signal path, which gives the subsequent "SFF-8654 to SAS" cable electrical feasibility.
II. Protocol Mapping: The Essence of SFF-8654 to SAS Connection
When discussing SFF-8654 to SAS, we are not referring to a single product, but a general term for a class of interconnection schemes. Its essence is: converting the SFF-8654 ports on HBA/RAID cards through specific cables into physical interfaces recognizable by standard SAS devices (hard disk backplanes or JBOD expansion ports).
This conversion process needs to address the following key issues:
Pin mapping: The 4X/8X high-speed differential pairs in SFF-8654 need to be mapped in the order defined by T10 for SAS channels, corresponding to the 4-lane or 8-lane transceivers in the SAS standard.
Sideband signal processing: The SAS protocol requires management signals such as SGPIO (serial general-purpose I/O), I²C, or sideband reset, which occupy low-speed pins in the SFF-8654 definition. These need to be directly connected or converted in the conversion cable.
Impedance and loss control: SFF-8654 to SAS cables typically use 100Ω differential impedance dual-shielded cables and strictly control insertion loss and return loss to ensure that 12G/22.5G high-speed signals can be transmitted without loss to the SAS backplane.

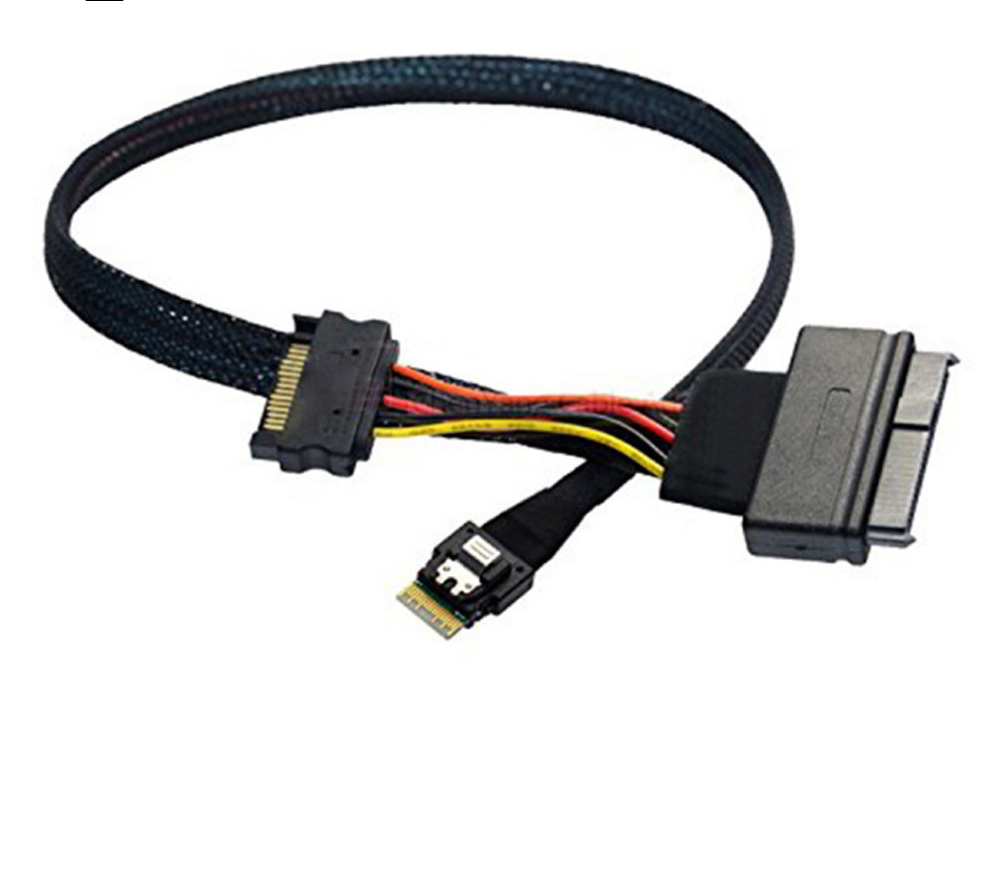

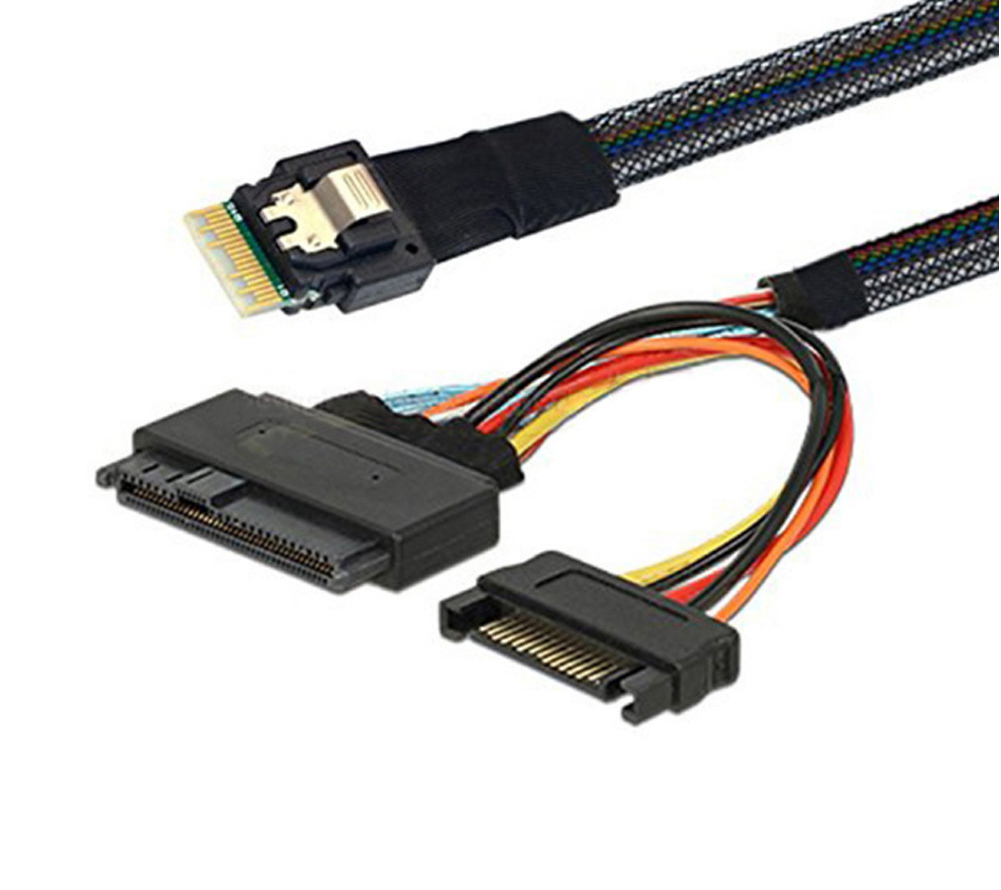

In actual deployment, the most common forms of SFF-8654 to SAS are SFF-8654 8i to 2× SFF-8482 (SAS hard disk dual ports) or to Mini SAS HD 4X (SFF-8674) fan-out cables, used to connect general SAS chassis backplanes or directly to hard disk cages.
III. Classification Overview: SAS Cable Connector Types and Their Intersection with SFF-8654
Understanding the family tree of SAS Cable Connector Types is the prerequisite for correctly selecting SFF-8654 to SAS cables. The SAS interface has evolved through multiple generations, and currently, the physical connector types that exist in parallel mainly include:
Connector type (SFF number) Characteristic Associated with SFF-8654
SFF-8482 (SAS hard disk interface) 7+15 pins, compatible with SATA physical shape, providing dual ports (Dual-port) Target end, usually terminated by SFF-8654 termination cable
SFF-8087 (Mini SAS 4X internal) 36-pin, plastic housing, with side latch, widely used for 12G and below internal connections Old HBA end, can be transitioned to SFF-8654 through adapter boards or passive conversion cables
SFF-8088 (Mini SAS 4X external) Similar to 8087 but with EMI clips, used for external connections to storage cabinets When expanding external storage cabinets, it needs to be interfaced with the external version of SFF-8654 (with shielding shell)
SFF-8644 (Mini SAS HD external) High-density metal housing, supporting 12G/24G, often used in SAS-3/SAS-4 external cables Shares the same high-density interface as SFF-8654 in the new generation, with interconversion cables
SFF-8674 (Mini SAS HD internal) 4X/8X high-density, with metal clips, widely used in 24G SAS backplanes Mostly paired with SFF-8654 on the backplane side, with highly compatible electrical characteristics
Among them, the SFF-8654 SlimSAS Connector itself is also included in the broad category of SAS Cable Connector Types, but it is different from the traditional Mini SAS series - its narrow design and PCIe compatibility give it an advantage in NVMe/SAS mixed backplanes. Therefore, when choosing the type of SAS cable, it is essential to clearly understand that one end of the cable is SFF-8654, and the other end belongs to which of the aforementioned SAS types. This directly determines the pin definition and mechanical structure of the cable.
IV. Key Selection Points in Engineering Practice
In the actual design of data centers or storage systems, when facing the interconnection requirement from SFF-8654 to SAS, differentiated choices need to be made based on the differentiated scenarios of SAS Cable Connector Types:
Scenario One (Internal Backplane Direct Connection): Select flat cables that convert SFF-8654 8i to 2× SFF-8674 (or SFF-8482). Make sure to confirm whether the backplane side is a 4-lane or 8-lane port to avoid channel mismatch.
Scenario Two (External JBOD Expansion): Choose shielded cables that convert SFF-8654 (external metal casing version) to SFF-8644, and pay attention to the electrostatic discharge (ESD) protection level of the cables.
Scenario Three (Mixed Protocol Deployment): If the backplane supports both SAS and NVMe hard drives, it is necessary to prioritize the use of SFF-8654 SlimSAS Connector as a unified interface, and then use conversion cables to be compatible with older SAS hard drives - this solution can retain the path for future full NVMe upgrade.
In addition, signal integrity is of crucial importance. At rates above 12Gbps, the insertion loss budget for SFF-8654 to SAS cables typically requires ≤ 1.5dB @ 6GHz, with an echo loss ≤ -10dB, and the skew within the differential pair needs to be controlled within 10ps. When purchasing, it is necessary to request the manufacturer to provide a TDR (Time Domain Reflectometer) test report.
V. Trend Outlook: Coexistence under Unified Interface
With the popularization of PCIe Gen5 and SAS-4 (24G), the SFF-8654 SlimSAS Connector is gradually replacing the traditional Mini SAS family and becoming a "universal interface" for storage and computing. However, the rigid requirement for backward compatibility of the SAS protocol determines that SFF-8654 to SAS conversion cables will still exist for a long time, and the diversity of SAS Cable Connector Types will gradually converge - the future differentiation may only exist in "backplane side (SFF-8674)" and "device side (SFF-8482)" types, while the other types will be gradually transitionally integrated through SFF-8654.
Understanding the hierarchical relationship among these three: SFF-8654 SlimSAS Connector is the physical carrier, SAS Cable Connector Types is the classification system, and SFF-8654 to SAS is the dynamic interconnection behavior. Mastering this logic will enable one to calmly handle any wiring design challenges in enterprise-level storage systems.
