Key Connections in High-Speed Storage Interfaces From MCIO Cables to SAS Dual-Port and STSDA 7P

Key Connections in High-Speed Storage Interfaces From MCIO Cables to SAS Dual-Port and STSDA 7P

In modern enterprise storage and server architectures, bandwidth, redundancy, and density are three non-negotiable design factors. With the continuous evolution of PCIe Gen5/Gen6 and SAS/SATA protocols, the selection of physical connectors and signal integrity management have become increasingly critical. This article explores three key technical concepts—MCIO Cable, SAS Dual Port, and STSDA 7P Connectivity—analyzing their individual functions and interrelationships.

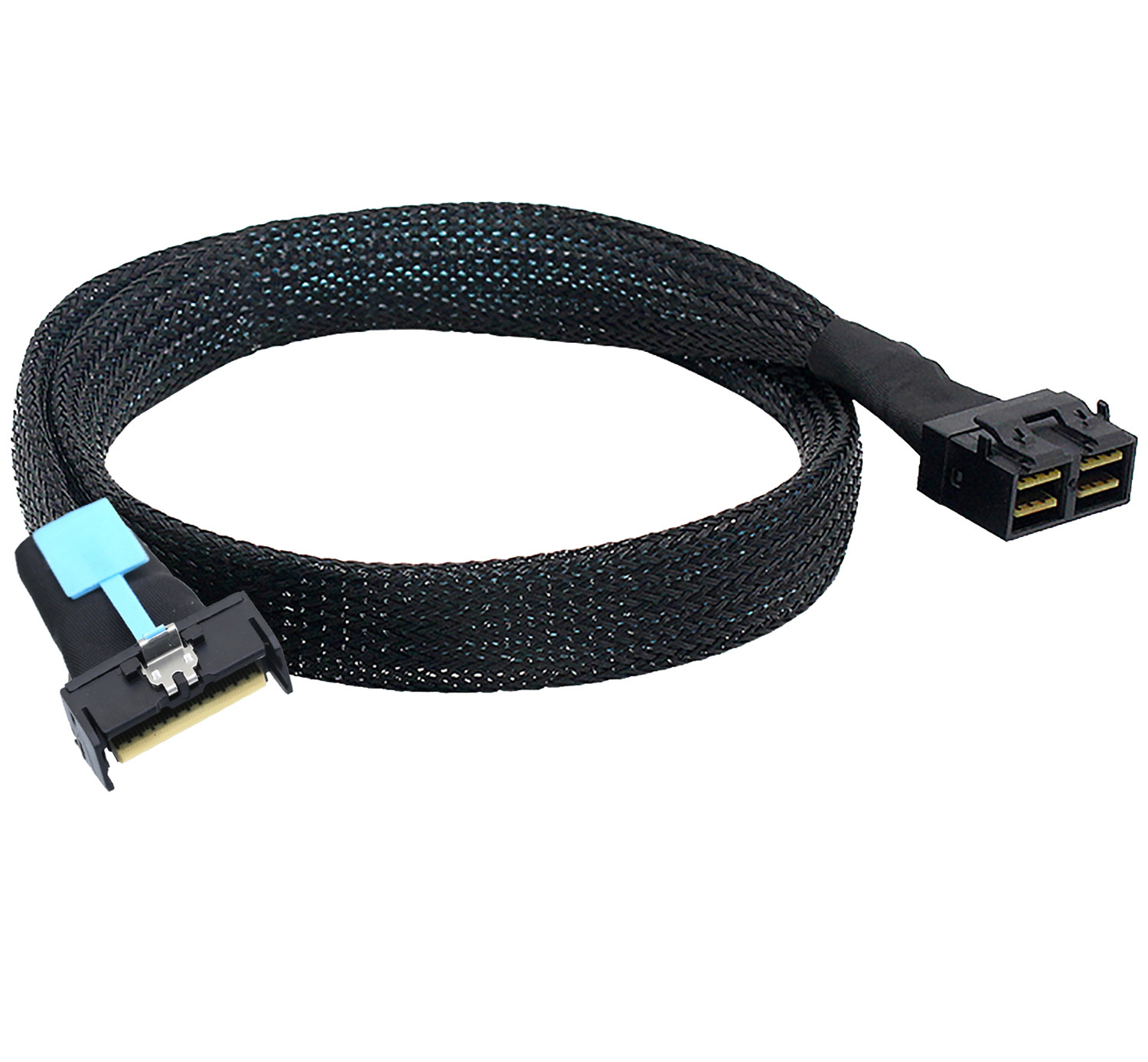

1. MCIO Cable: The "Invisible Backbone" for High-Density Internal Interconnects

MCIO (Mini Cool Edge IO) is an internal/external multi-protocol connectivity standard defined by the SNIA SFF TA Working Group (SFF-TA-1016), specifically designed for PCIe Gen4/5/6, SAS 4.0, and NVMe.

Structural Features: MCIO cables utilize miniature high-density terminals, supporting configurations with 4, 8, or even 16 lanes, with signal rates reaching up to 32 GT/s (PCIe Gen5) and beyond.

Typical Applications: Inside servers, MCIO cables connect motherboards to front-facing NVMe drive backplanes, SAS RAID cards to expanders, or split x16 slots into multiple x4/x8 links directly to E1.S or U.2 SSDs.

Advantages: Compared to traditional Mini SAS HD or OCuLink solutions, MCIO delivers higher lane density within the same board footprint, supports hot-plug capability, and enables unshielded flat cables while maintaining signal integrity over short distances.

When a system requires support for numerous SAS dual-port devices, an MCIO cable can carry two independent SAS physical links via a single bundle, thereby satisfying dual-port redundancy requirements at the physical layer.

2. SAS Dual Port: Enterprise Storage’s “Dual Insurance” for Disaster Recovery

SAS Dual Port is a core high-availability feature in the SAS protocol, purpose-built for mission-critical applications.

Operating Principle: A SAS disk (or SSD) is equipped with two independent PHY ports (Port A and Port B), each connected to a separate RAID controller or SAS expander. Each port has its own dedicated physical link, transceiver, and address.

Redundancy Value: When one controller, link, or port fails, the other port seamlessly takes over I/O operations, enabling controller-level failover. This contrasts sharply with SATA's single-port design, which cannot support such fault tolerance.

Integration with MCIO: Taking a dual-port SAS 4.0 SSD as an example, it requires at least two independent physical links. Using an 8-lane MCIO cable, four lanes can be allocated to Port A (connected to Controller 1), and the remaining four lanes to Port B (connected to Controller 2), achieving compact aggregation of physical links.

III. STSDA 7P Connectivity: Implementation of SAS Dual-Port in a Specific Architecture

STSDA 7P is not a universal public standard, but it may appear in some customized enterprise storage backplanes or test fixtures. Judging from its naming and practice:

STSDA: It might be an abbreviation for a SAS Triple Stack Device Adapter or a similar high-density backplane interface defined internally by a specific manufacturer (such as a server ODM or storage connector manufacturer).

7P meaning: 7 Position, referring to 7 signal or power contacts. In a typical SAS/SATA multiplexing scenario, the standard SAS data ports usually contain 7 signal pins (the first 7 pins of SAS/SATA share power and ground, but dual ports require an additional channel).

Function: STSDA 7P is likely to refer to a simplified definition for mapping the critical control and data signals of a dual-port SAS device (such as a 2.5-inch SAS SSD) to the backplane or test interface. For example, on a 1U server backplane, a single STSDA 7P connector may simultaneously carry the transmit and receive pairs of Port A and part of the sideband signals, and multiple 7P connectors converge to the MCIO cable input end.

In practical engineering, the 7P connection can also refer to a test point for measuring the quality of dual-port signals during fault troubleshooting - each dual-port SAS link's two differential pairs (Tx/Rx) plus the clock or reset line precisely fall within the range of 7 important nodes.

Collaboration: Building the Next Generation Dual-Port SAS Storage Pool

Take a high-availability dual-controller storage node as an example. The typical signal path is as follows:

Controller side: Two independent SAS controllers each output 4 physical links (a total of 8 lanes), entering a single MCIO connector on the motherboard.

MCIO Cable: An 8-channel MCIO internal cable, transmitting the 8 lanes completely to the MCIO socket on the front-end hard drive backplane.

Backplane demultiplexing: The PCB traces on the backplane distribute the 8 lanes to three or more STSDA 7P intermediate connectors, and each 7P interface is responsible for the port mapping of one dual-port SAS SSD (Port A + part of the sideband).

Dual-port hard drives: SAS SSDs are connected to the backplane through their dual-port interface - another set of lines on the backplane (from another MCIO cable or another connector) provides Port B. Two 7P interfaces jointly cover all the dual-port signals of a hard drive.

This design reduces the number of cables by more than 50% and ensures that any controller path can independently access the corresponding port of the specified hard drive. Summary

Key words: Role positioning, Core value

MCIO Cable: High-density physical transmission medium, supporting multiple protocols, saving space, 32Gbps+ capability

SAS Dual Port: Logical and protocol-level redundancy mechanism, controller fault switching, zero downtime maintenance

STSDA 7P: Specific backplane or test interface mapping, simplifying dual-port signal distribution, facilitating diagnosis

Understanding the hierarchical relationship among the three: MCIO cable provides the physical channel, SAS dual ports define the redundancy rules, and STSDA 7P completes the signal splitting and connection in the middle layer. In the next-generation PCIe 6.0 Ready and SAS-5 pre-research systems, such combinations will continue to evolve as the cornerstone of high-density storage interconnection.
