MCIO: The “Invisible Cornerstone” Unlocking High-Density Interconnection of AI Computing Clusters

MCIO: The "Invisible Cornerstone" Unlocking High-Density Interconnection of AI Computing Clusters

The main features of MCIO

High density and miniaturization:

The physical size of the interface is compact, providing a significantly higher number of channels per unit area compared to traditional interfaces such as SATA and SAS. A single MCIO connector can integrate up to 16 pairs of differential signal channels and simultaneously offer power pins. This makes it possible to connect a large number of high-speed signals in the narrow space of servers or switches.

Modularity and flexibility:

MCIO is a standardized "socket" interface, with its cables and plugs being separate. By using different "adapter cards" or "cable modules", the same MCIO host port can flexibly support multiple protocols and speeds, such as PCIe (Gen4/Gen5/Gen6), SAS, Ethernet, etc., achieving "one interface, multiple uses".

Support for ultra-high bandwidth:

To meet the explosive data throughput demands in AI/ML/HPC workloads, the MCIO interface design supports extremely high single-channel data rates (currently commonly supporting 32 GT/s for PCIe 5.0 and looking towards PCIe 6.0 and beyond). After aggregating multiple channels, the total bandwidth is extremely impressive (for example, a 16-channel MCIO interface can provide the full bandwidth of a PCIe x16).

Robust mechanical design:

It adopts a metal shell shielding and snap-lock mechanism, ensuring a firm connection, effectively resisting vibration, ensuring connection reliability in the complex environment of data centers, and reducing signal integrity issues caused by poor contact.

Support for high-power transmission:

In addition to high-speed signal pins, the MCIO connector is specially designed with high-current power pins, capable of directly providing up to hundreds of watts of power to remote devices (such as GPUs, accelerator cards, storage expansion cabinets), simplifying system power supply design.

The core advantages of MCIO

Optimizing system design and enhancing density:

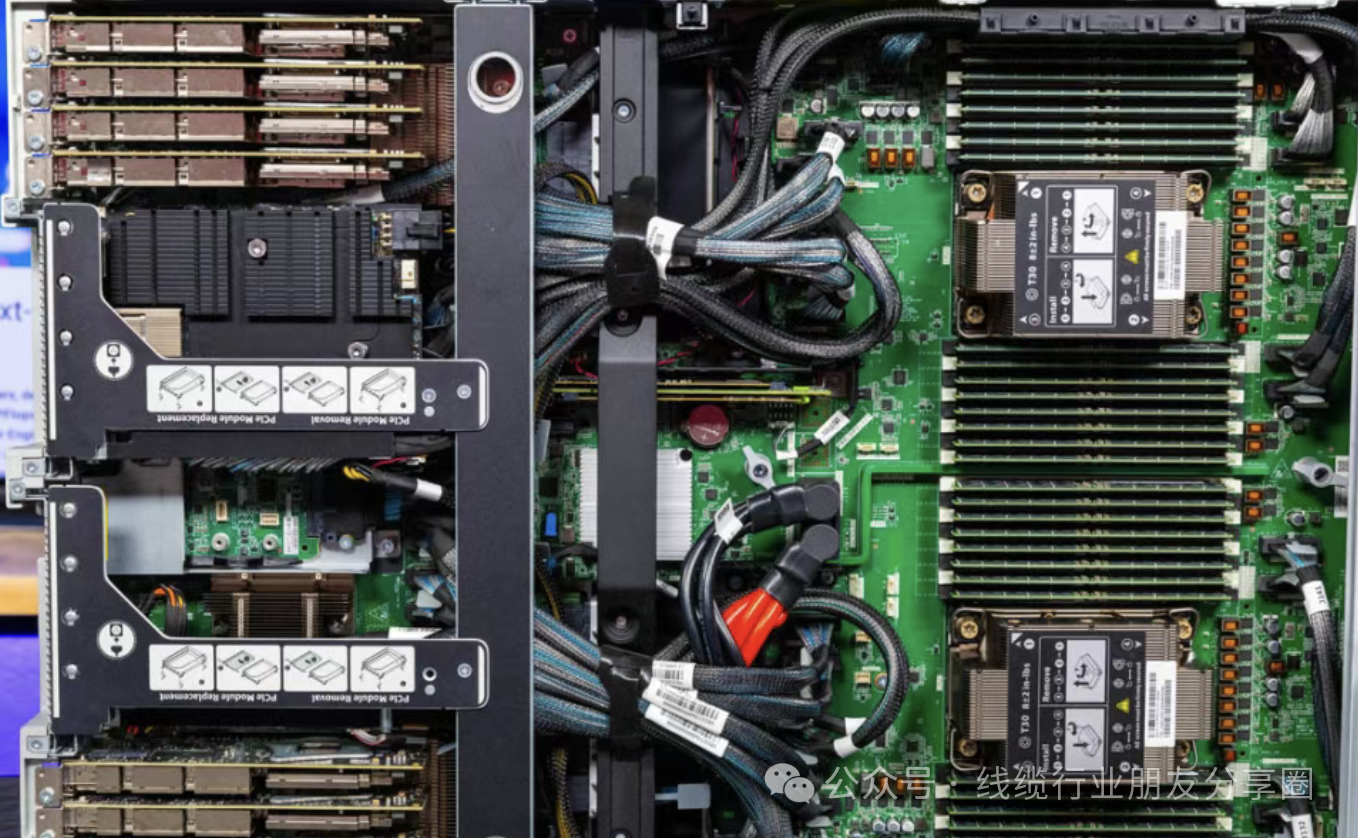

It replaces the messy, space-consuming, and difficult-to-manage multiple discrete cables, making the internal layout of servers neater and improving ventilation and heat dissipation efficiency.

It allows for the integration of more computing units (GPUs/ASICs) in 1U/2U standard server chassis, maximizing computing density.

Reducing deployment and maintenance complexity:

Pre-fabricated modular cables (such as flat cables or custom cable assemblies) are easy to install and remove, significantly reducing server assembly and on-site replacement time.

A unified interface standard simplifies supply chain management and spare parts inventory.

Enhancing signal integrity and reliability:

It is specifically optimized for high-speed signal transmission. Its shielding design and impedance control effectively reduce signal attenuation, crosstalk, and electromagnetic interference, ensuring stable transmission over longer distances (within the chassis or between cabinets).

The robust locking mechanism prevents cables from accidentally loosening during operation and maintenance, enhancing the overall reliability of the system.

Future-oriented scalability:

Its modular nature allows for supporting new protocols and higher data rates in the future by upgrading cable modules without changing the core design of the motherboard, protecting infrastructure investments.

Empowering heterogeneous computing and disaggregated architectures:

MCIO is one of the key enabling technologies for computing disaggregation and resource pooling. Through MCIO high-speed cables, resources such as GPUs, DPUs, and storage can be flexibly separated from the host and dynamically configured as needed, building a more efficient and flexible data center architecture.

NVIDIA's HGX platform (such as 8-GPU systems based on H100, H200, B200) is the hardware foundation of its high-end AI data center solutions. This platform adopts a highly integrated and modular design: Computing Core: Multiple GPU modules in OAM form (such as NVIDIA SXM GPUs) serve as computing units. They are not directly inserted into the server's PCIe slots but are integrated onto a carrier board called the "GPU baseboard," which is mainly responsible for power supply and primary signal distribution.

High-Speed Interconnect Network: All GPUs are connected to a central NVLink Switch Board via their on-board NVLink ports through MCIO cables. This switch board integrates multiple NVSwitch chips to form a non-blocking full-switch network, enabling 8 or more GPUs to be fully interconnected at a bandwidth far exceeding that of PCIe (for example, H100 NVLink reaches 900GB/s), which is crucial for efficient large-scale model training.

Host Connection: The NVLink Switch Board is also connected to a "host interface board" via MCIO cables. The core function of this interface board is to provide PCIe channels and typically integrates PCIe switch chips such as PLX to aggregate and convert the PCIe interfaces of the GPU cluster and connect them to the CPU on the server's motherboard, enabling the host to control and communicate with the GPU cluster.

Main Application Scenarios and Binding Strategies of MCIO

The core application scenarios of MCIO in this architecture are as follows:

Scenario One: High-Speed Inter-Board Expansion: This is the most critical use of MCIO in the HGX. It replaces the internal motherboard traces in traditional servers, flexibly "weaving" together the GPU baseboard, NVLink switch board, and host interface board. This design allows OAM GPUs, NVSwitches, and host interfaces to be independently designed and produced and assembled through standard cables, significantly enhancing the modularity and flexibility of hardware design.

Scenario Two: Replacing PCIe Slots: MCIO cables essentially carry high-speed differential signals (including NVLink and PCIe). Through them, GPUs can avoid occupying any physical PCIe slots on the motherboard, allowing for a GPU density and interconnect bandwidth far exceeding that of traditional 8-card PCIe servers within a single server. The full interconnection of 8 GPUs in the HGX platform is unachievable with traditional PCIe form factors.

Scenario Three: Potential Bridge for Rack-Level Expansion: Although currently mainly applied within a single node, the high bandwidth characteristic of MCIO makes it a potential physical layer option for connecting inter-node switching devices (such as InfiniBand or Spectrum-X switches) in the future, supporting the construction of even larger clusters.

NVIDIA's "Hardware-Software Synergy Binding" Strategy:

Through this HGX architecture with MCIO as the physical link, NVIDIA has achieved a deep binding from the chip to the system level, building an extremely high ecological barrier:

Hardware Lock: NVLink Ecosystem Closed Loop

Exclusive Protocol: NVLink is NVIDIA's proprietary high-speed interconnect protocol, and its physical layer and link layer protocols are not open.

Control of Key Components: NVSwitch chips, the firmware managing them, and the software stack are all under NVIDIA's control. Even if third parties (such as server manufacturers) can produce OAM GPU baseboards, they must purchase NVSwitch boards and corresponding licenses/firmware from NVIDIA.

MCIO as an "Authorized Cable": Using MCIO to connect these components physically enforces the requirement to use NVIDIA-certified NVLink network architectures. This ensures performance and reliability while controlling the entire high-speed interconnect supply chain.

System-Level Reference Design Binding OEM/ODM NVIDIA provides its partners (such as Dell, Lenovo, HPE, and Supermicro) with a complete HGX reference design. These manufacturers can produce their own HGX systems based on this design, but the core interconnect architecture, board design, and key components must adhere to NVIDIA's specifications. This has led to a high degree of homogeneity in the core interconnect topology of the top AI server product lines of major server manufacturers (such as OEM versions of DGX), with differentiation only in peripheral aspects such as cooling, power supply, and management software, while the performance core remains firmly in NVIDIA's hands.

Spiral Reinforcement of Software Stack and Hardware

NVIDIA's software libraries and communication libraries, such as CUDA, cuDNN, and NCCL, have been optimized to the extreme for this fully connected NVLink topology. NCCL, in particular, can automatically identify and optimize the utilization of the NVLink topology, achieving nearly linear multi-GPU communication performance. This synergy of software and hardware optimization makes it almost inevitable for customers to choose NVIDIA's complete solution (GPU + NVLink + certified system) to achieve the best AI training performance.

Even if competitors (such as AMD and Intel) can offer single GPUs with similar performance, it is extremely difficult for them to replicate this full-stack optimized ecosystem from physical interconnect to system software in a short period of time.

In summary, the MCIO cable in the HGX platform is not only the "blood vessels" for high-speed signals but also a key physical link for NVIDIA to build its closed yet high-performance hardware ecosystem. It enables NVIDIA to package its own GPUs, proprietary interconnect technology (NVLink/NVSwitch), and system design standards into a "black box" solution, providing top-tier performance while also creating a strong supplier lock-in effect and consolidating its dominance in the AI computing market.
