Mini SAS and Mini SAS HD—can you tell them apart?
In enterprise storage, servers, and data centers, SAS (Serial Attached SCSI) technology plays a central role. Whether connecting hard drive backplanes, RAID cards, or expanders, SAS cables are indispensable. However, users often feel confused when encountering terms such as SFF-8654, SFF-8643, Mini SAS, and Mini SAS HD. This article will systematically explain these concepts and their relationships using three key terms as guiding points.
1. What is SAS Cable? — Understanding the Essence of SAS Cables
SAS cables refer to transmission cables that comply with the Serial Attached SCSI (SAS) electrical and physical specifications, used to connect SAS controllers (such as HBAs and RAID cards), hard disk drives (HDDs/SSDs), and SAS expanders.
Key Features:
- Point-to-point topology: Unlike parallel SCSI, SAS uses serial point-to-point connections, enabling full-duplex communication.
- High bandwidth: Channel speeds range from 3 Gb/s (SAS-1) to 24 Gb/s (SAS-4), and even higher.
- SATA compatibility: SAS controllers can support SATA drives (but not vice versa).
- Multiple port aggregation: Wide ports combine multiple physical links (e.g., 4 lanes, or x4).
Typical Applications:
- Internal server connections between RAID cards and drive backplanes.
- External JBOD (Just a Bunch Of Disks) storage expansion.
- NVMe or tri-mode storage systems (supporting SAS/SATA/NVMe simultaneously).
Cable Types: SAS cables are not limited to a single physical interface; they have evolved into various connectors based on bandwidth requirements. Therefore, it's essential to distinguish between Mini SAS and Mini SAS HD.
II. Mini SAS vs Mini SAS HD - Differences between Standard Edition and High-Density Edition
1. Mini SAS (also known as SFF-8087 / SFF-8088)
Internal interface: SFF-8087 (commonly used for connection from RAID card to backplane).
External interface: SFF-8088 (commonly used for connection to external storage arrays). Feature:
Each interface supports 4 SAS channels.
Pin spacing is 0.8 mm.
The maximum rate is typically up to 6Gb/s (SAS-2) or 12Gb/s (SAS-3, but with limited signal quality).
Appearance: Plastic or metal snap-on type, relatively wide, with snap locks on the sides.
2. Mini SAS HD (High Density, namely SFF-8643 / SFF-8644)
Internal interface: SFF-8643 (replacing SFF-8087 to become mainstream).
External interface: SFF-8644 (replacing SFF-8088). Feature:
Higher density: Same 4 channels, but smaller in size; even there is an x8 version (such as SFF-8654, the next generation).
Pin spacing 0.6 mm.
Better signal integrity: Suitable for 12Gb/s (SAS-3) and 24Gb/s (SAS-4).
Compatible with three modes: Many Mini SAS HD interfaces can simultaneously transmit PCIe (NVMe) signals.
Appearance: Interface is more compact, with metal tabs or side locking points design.
Comparison summary table:
Feature Mini SAS (SFF-8087/88) Mini SAS HD (SFF-8643/44)
Density Low High (HD = High Density)
Maximum rate 6Gb/s stable, 12Gb/s limited 12Gb/s stable, 24Gb/s supported
Typical protocol SAS (SAS-2/3) SAS-3/4, some NVMe
Current status Gradually phased out Mainstream
Appearance volume Relatively large Smaller
Selection tip: New server or storage projects should prioritize Mini SAS HD (SFF-8643/8644). Only for upgrading old equipment, the Mini SAS (SFF-8087) solution can be retained.
III. SFF-8654 to SFF-8643 - When a New Interface Meets a Mainstream Interface
1. Understanding SFF-8654 (also known as SlimSAS or Multi-Trak)
SFF-8654 is an updated interface standard compared to Mini SAS HD, commonly found in:
Controllers supporting PCIe 4.0/5.0 (NVMe) + SAS.
High-density applications: One SFF-8654 interface can be x4, x8, or even wider channels.
Typical specifications:
SFF-8654 4i (4 channels) and 8i (8 channels).
The physical size is narrower (Slim type), especially suitable for compact servers.
Pin spacing 0.6 mm, signal rate up to 24Gb/s (SAS-4) or 32Gb/s (PCIe 5.0).
2. Why convert SFF-8654 to SFF-8643?
Scenario 1: A new HBA/RAID card or motherboard uses SFF-8654 interface (triple-mode design), but the existing disk backplane still uses SFF-8643 (internal interface of Mini SAS HD).
Scenario 2: To utilize the higher bandwidth of the new controller (such as 8-channel), but the backplane only supports x4 channel group access.
Conversion line structure:
Host end (new card) Destination end (backplane/disk) SFF-8654 (4i/8i) =====> SFF-8643 (x4)
Common specifications:

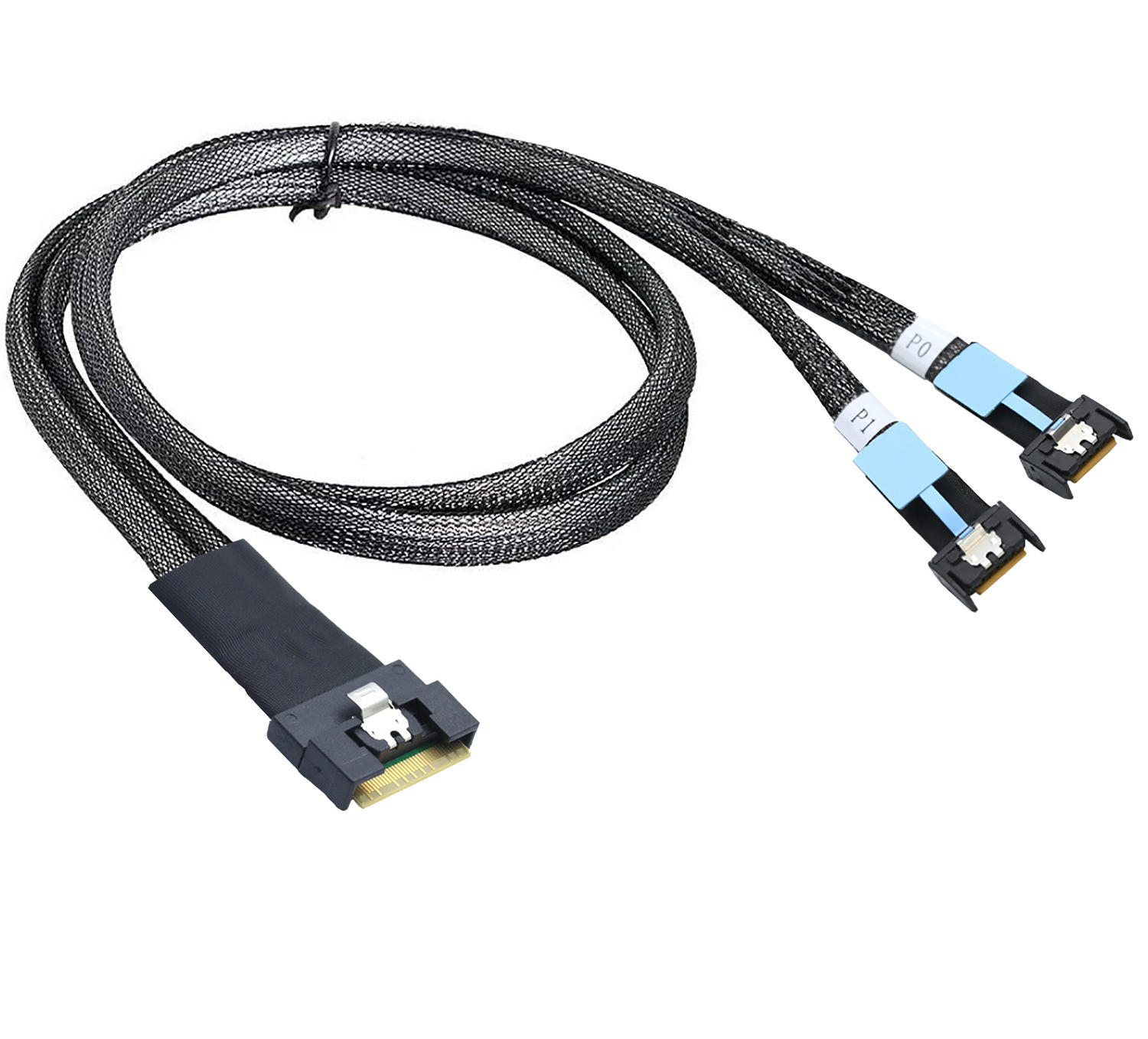

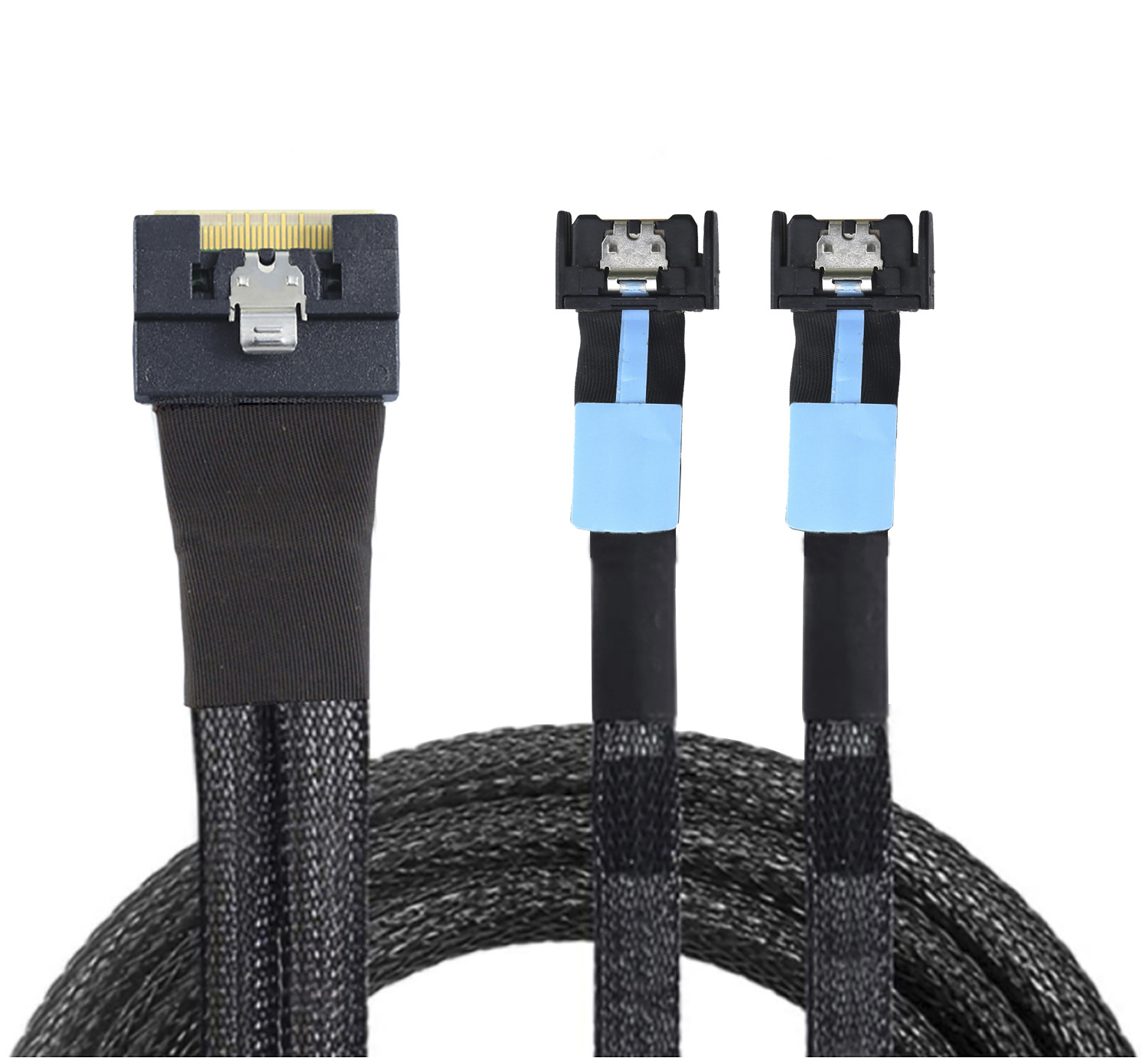

8654 to 8643 x2: Split SFF-8654 8i into two independent SFF-8643 interfaces (each x4).
8654 to 8643 x1: Direct conversion, maintaining x4.
3. Key considerations
Item Explanation
Protocol compatibility Confirm that the host end SFF-8654 is configured as SAS mode (rather than pure NVMe mode). Some triple-mode cards require BIOS/UEFI configuration.
Rate If the cable quality is poor, 24Gb/s SAS-4 may be downgraded to 12Gb/s.
Power supply SFF-8654 does not include power supply lines, and the backplane is powered by an independent power supply; this is a normal phenomenon.
Connection direction For SFF-8654 to 8643 conversion, it is mostly passive direct connection, no driver or chip required.
Application examples:
Broadcom/LSI 9500 series triple-mode HBA provides SFF-8654 interface for connecting SAS or NVMe disks. If connecting to an old SAS disk backplane (SFF-8643), such a conversion cable is required.
Summary: Relationship Diagram of the Three
SAS Cables ── Evolve by Performance/Generation ──► Mini SAS (SFF-8087) ── Low Speed/Outdated │ ▼ Mini SAS HD (SFF-8643) ── Current Mainstream SAS Internal Interface │ │ (New Host Interface Upgrade) │▼ SFF-8654 (SlimSAS) ── Supports PCIe + SAS, Higher Density Intermediate Bridge: SFF-8654 to SFF-8643 Adapter Cable
Clarify the types of SAS cables: From SFF-8087 → SFF-8643 → SFF-8654, it is the path of density and speed improvement.
Mini SAS vs Mini SAS HD: Choose HD (SFF-8643), unless it is necessary to be compatible with old devices.
SFF-8654 to SFF-8643: A practical solution for connecting existing SAS backplanes with new multi-mode cards.
