SFF-8087 to MCIO, has this been upgraded？
In an era of explosive data growth, enterprise storage and internal server data pathways are facing unprecedented bandwidth pressure. For IT infrastructure engineers and server DIY enthusiasts, the three keywords—SFF-8087, SFF-8611, and MCIO—represent three distinct generations in the evolution of storage interfaces. This article will delve into the technical positioning of these three cable types, with a particular focus on the practical significance of the "Red Mesh" design in high-speed data transmission.
I. Classic Legacy: The Golden Era of SFF-8087 and "Red Mesh"
SFF-8087 (Mini SAS 4i) is a long-standing staple in the SAS (Serial Attached SCSI) ecosystem. For many years, it served as the primary interface connecting RAID cards to backplanes. A standard SFF-8087 interface hosts four SAS/SATA lanes, delivering a total bandwidth of 24 Gbps at 6 Gbps per lane.
During this era, Red Mesh cables became synonymous with premium quality. The braided mesh layer beneath the red outer sheath was not merely aesthetic—it provided exceptional tensile strength and superior EMI (electromagnetic interference) shielding. Within the tightly packed confines of server chassis, cables frequently need to be bent and routed; the Red Mesh design effectively protects the internal twisted-pair structure, ensuring signal integrity over long distances at 6 Gbps. If you encounter an SFF-8087 cable with a red braided exterior in second-hand markets or data centers, it typically indicates compliance with OEM manufacturers’ stringent standards for heat resistance and shielding.
II. The Evolutionary Bridge: The Rise of SFF-8611 (Mini SAS HD)
With the widespread adoption of NVMe (Non-Volatile Memory Express), bandwidth limitations began to emerge. In response, SFF-8611 (also known as Mini SAS HD 4i) emerged as the physical successor to SFF-8087. Though smaller in form factor, it features higher pin density, enabling stable transmission of 12 Gbps SAS signals and even providing a physical pathway for early PCIe 3.0 NVMe devices.
At this stage, SFF-8087-to-SFF-8611 4i adapter cables became essential transitional bridges. During storage system upgrades, many motherboards or HBA (Host Bus Adapter) cards still retained legacy SFF-8087 ports, while newer backplanes had transitioned to SFF-8611 physical interfaces. These adapter cables, engineered with precise impedance matching, resolved compatibility issues between old and new physical formats. Notably, such intergenerational connections must strictly adhere to SAS-3 specifications; insufficient shielding can lead to frequent speed reductions or CRC errors—explaining why high-end adapters continue to employ composite shielding layers similar to the "Red Mesh" design.
III. The Future Is Here: MCIO’s Disruptive Arrival
If SFF-8087 represents the mechanical hard drive era, and SFF-8611 marks the age of SAS SSDs, then MCIO is the next-generation "species" designed specifically for PCIe 4.0/5.0.
MCIO is a next-generation internal interconnect interface defined by the PCI-SIG organization, distinguished by its outstanding signal integrity. Facing the ultra-high speeds of PCIe 5.0 (32 Gbps), traditional SFF interfaces struggle with crosstalk and insertion loss. MCIO achieves superior performance through optimized grounding and high-frequency design, supporting up to eight PCIe lanes within the same physical footprint. In the current hardware landscape, MCIO is rapidly replacing SFF-8611 as the primary interface for PCIe adapter cards and new E3.S/E3.L backplanes. No longer requiring differentiation between SAS and SATA protocols, its pure PCIe architecture makes it inherently compatible with AI accelerator cards and Gen5 NVMe SSDs.
IV. Practical Selection Guide: How to Choose?
When selecting among these three types of cables, your decision should be based on the motherboard interface type and protocol requirements:

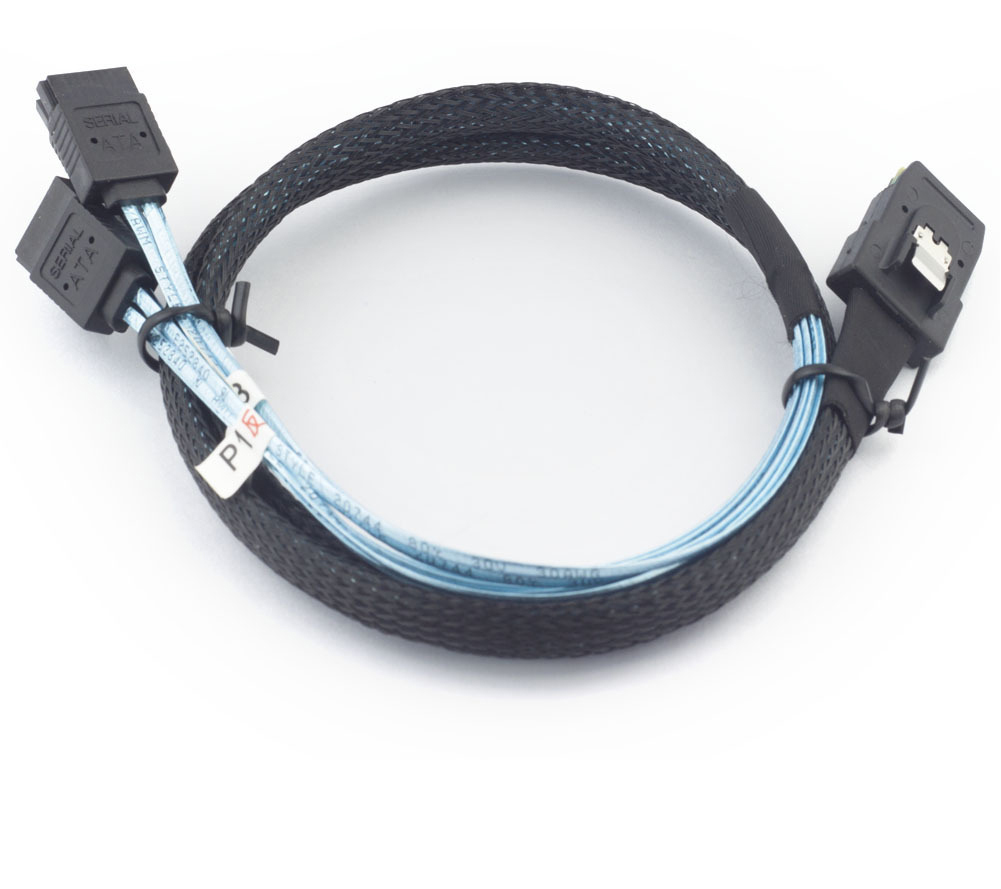

Expanding Old Equipment (SATA/SAS Drives): If your motherboard uses an older RAID card, opt for the Red Mesh SFF-8087 cable (or an SFF-8087-to-SATA fan-out cable). The red braided mesh ensures reliable physical layer performance.
Transition Bridging (Old Card with New Backplane): If your RAID card has an SFF-8087 interface but your drive backplane uses SFF-8611, you'll need an SFF-8087-to-SFF-8611 4i adapter cable. Note that this solution supports up to 12 Gbps SAS only and is not compatible with NVMe.
Future NVMe Deployment (PCIe 4.0/5.0): Simply discard the first two options and embrace the MCIO Cable. Even if your current motherboard still uses the SFF-8654 interface (another outdated standard), prioritize transitioning to MCIO via an adapter board to achieve optimal PCIe 5.0 signal integrity. Conclusion
From Red Mesh's physical shielding to MCIO's protocol revolution, the evolution of storage cables essentially reflects how data deluge has driven upgrades in the physical layer. SFF-8087 represents industrial robustness over the past decade, SFF-8611 addresses short-term transitional needs, while MCIO ushers in a new era of PCIe 5.0 all-flash systems. When procuring, be sure to avoid the trap of "similar appearance"—inserting an MCIO cable into an SFF-8611 interface may cause physical damage. Only when connector, protocol, and cable impedance are perfectly matched can a truly bottleneck-free data highway be built.
