SFF-8643 to SATA, can it really reach the full 12G SAS speed？
In the enterprise-level storage and data center field, each iteration of the physical connection form directly affects the system bandwidth, wiring density, and compatibility strategies. When we talk about the current mainstream mid-to-high performance storage solutions, the three keywords: 12G SAS connector, SAS ports, and SFF 8643 to SATA, precisely outline a complete technical chain from standard interfaces, port semantics to actual adapter applications. Understanding the relationship between these three is the foundation for selecting storage servers, designing backplanes, and planning cables.
1. 12G SAS Connector: The Benchmark of Speed and Physical Form
The 12G SAS connector does not refer to a fixed physical appearance, but rather an interface standard family defined by electrical characteristics and transmission rates. It represents that this connector supports a serial SCSI (SAS) data transmission rate of 12Gbps (approximately 1.2GB/s) per channel, and is the characteristic speed level of the SAS-3 (or SAS 3.0) era.
At the physical level, the common 12G SAS connector forms include:
SFF-8482 (traditional SAS hard drive interface, compatible with SATA but with a second notch)
SFF-8680 (24Gbps backplane for SAS-3, but backward compatible with 12G)
SFF-8639 / U.2 (for NVMe/SAS general high-speed drives)
SFF-8643 (Mini SAS HD, 4-channel/8-channel internal connector)

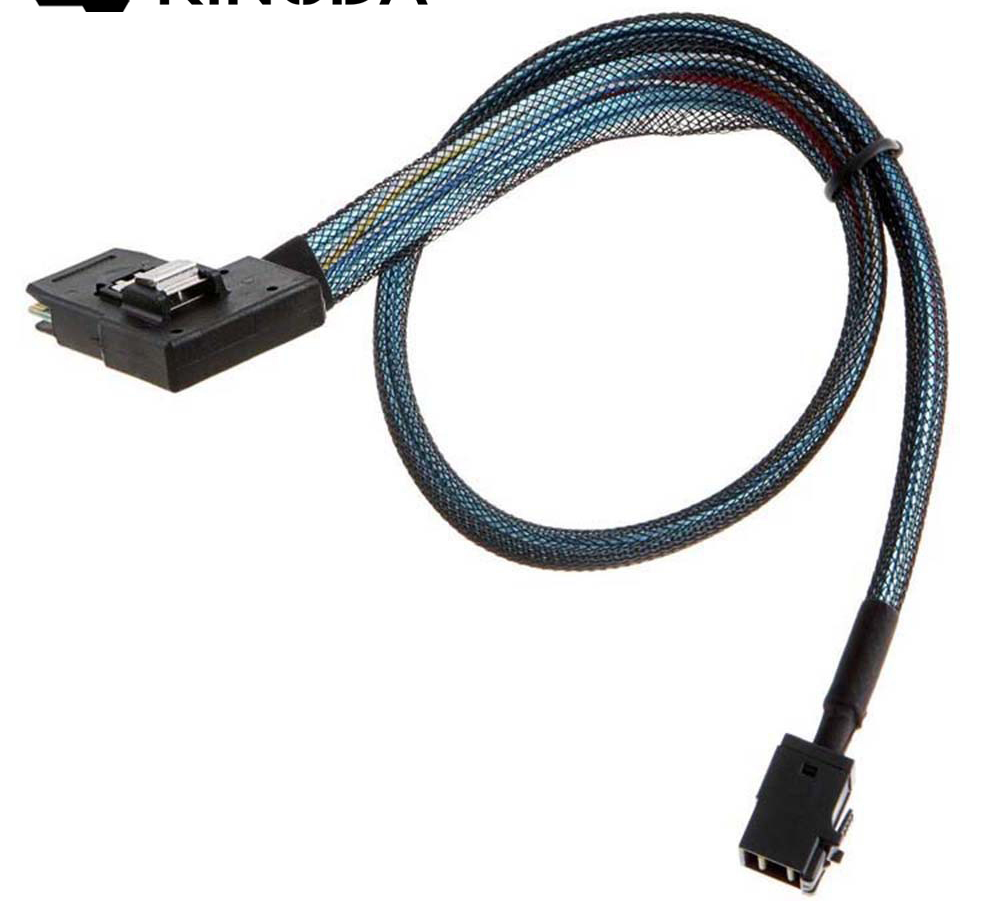

Among them, SFF-8643 is the most typical 12G SAS connector representative in current internal storage connections. It adopts a high-density metal contact design, supports passive copper cables or active optical cables, and can stably carry 4 12G SAS signals within the narrow space of the server, with a total bandwidth of 48Gbps. The key to this connector lies in its shielding performance and impedance control, ensuring that the transmission loss of 12Gbps high-speed signals on the backplane or cables is controlled within industry specifications.
II. SAS Ports: Dual Identity of Logical Links and Physical Ports
If the 12G SAS connector describes the thickness of the "pipe" and the style of the connector, then SAS ports define the logical organization of the "flow" and the count unit of the physical sockets. In the SAS system, SAS ports have dual meanings:
Physical Port: Refers to an independent SAS transmission link, usually corresponding to one or a pair of differential signal pairs (Tx/Rx) in the connector. For example, an SFF-8643 connector contains 4 physical SAS ports, each operating independently at 12 Gbps.
Wide Port: Binded by multiple physical ports (such as wide port 4-wide or 8-wide), achieved through SAS expanders or RAID cards to achieve link aggregation, increasing the total bandwidth or providing redundant paths.
In practical engineering, we pay more attention to the quantity and allocation of SAS ports. A HBA (Host Bus Adapter) card may indicate "8 internal SAS ports", which usually means it provides 8 independent physical links through two SFF-8643 connectors. These ports can be directly connected to hard drives or connected to SAS expanders. It is worth noting that SAS ports support tunnel transmission (STP) of both SAS and SATA protocols, enabling them to manage SAS and SATA hard drives through the same physical port, but this requires protocol-level distinction.
III. SFF 8643 to SATA: The Key Bridge for Downward Compatibility
The most practical aspect is seen in the SFF 8643 to SATA conversion scheme. Since the physical pins and signal level definitions of the 12G SAS connector (specifically the SFF-8643) are compatible with SATA, an SFF-8643 female socket can be converted to a standard 7-pin SATA data port (usually accompanied by a 15-pin power cable) through passive transfer cables or transfer boards.
The core value of the SFF 8643 to SATA cable lies in:
Compatibility: Allows servers equipped with 12G SAS connector backplanes or HBA cards to directly connect to ordinary SATA solid-state drives or mechanical drives without replacing the hard drive backplane.
Rate Reduction: When the 12G SAS signal of the SFF-8643 is connected to a SATA 6Gbps hard drive through the transfer cable, the link will automatically negotiate to SATA III (6Gbps), which is the upper limit of the SATA physical layer. Therefore, this transfer does not cause protocol errors, but will lose the bandwidth advantage of the SAS channel.
Port Splitting: A standard SFF 8643 to SATA cable typically adopts a "1-to-4" design, that is, one SFF-8643 connector (containing 4 SAS ports) outputs 4 independent SATA interfaces, each corresponding to one physical port. This is very economical for connecting multiple SATA SSDs to build hierarchical storage or cold data pools.
However, it must be noted that the SFF 8643 to SATA transfer is only for data signals, and SATA devices do not support SAS-specific dual ports, arbitration, or advanced error recovery functions. Therefore, such transfers are often used in mixed storage nodes or cost-sensitive scenarios, while they are less used in full SAS arrays in critical business environments.
IV. The Collaborative Working Model of the Three Components
In a real storage system, the workflow of these three components is as follows:
The HBA/RAID card provides multiple SAS ports, outputting two 12G SAS connectors (SFF-8643) interfaces, with each interface carrying 4 12G signals.

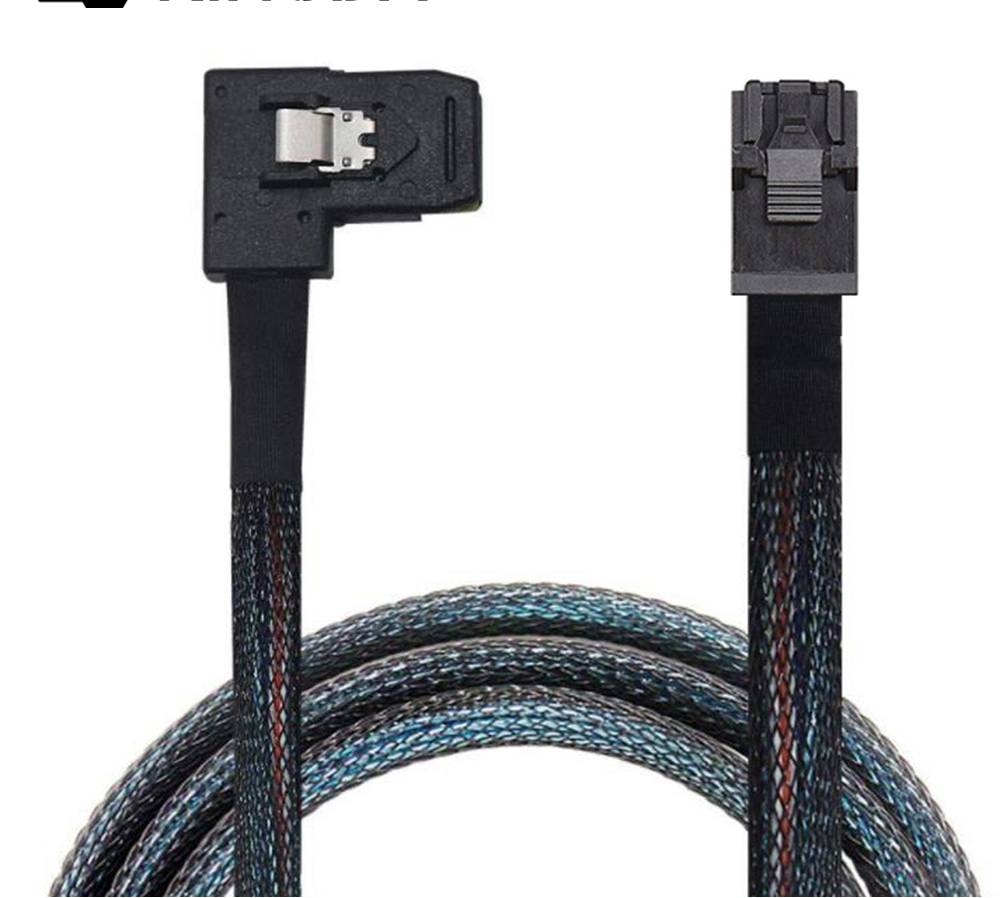

If the rear-end hard drives are all SAS interfaces (such as SAS SSDs), then directly use the SFF-8643 to SFF-8680 or to Mini SAS HD cables to directly connect to the backplane.
If the rear-end uses a mixture or all SATA hard drives, then introduce the sff 8643 to sata adapter cable, splitting each SFF-8643's 4 SAS ports into 4 independent SATA data heads, and connecting them to SATA hard drives respectively.
Throughout the entire link, the 12G SAS connector ensures signal integrity, the SAS ports are responsible for link management and rate negotiation, and the sff 8643 to sata completes the physical form conversion. All three components are indispensable and together form the complete data path from the controller to the storage medium.
V. Selection Suggestions and Common Misunderstandings
Misunderstanding 1: Believing that all 12G SAS connectors can automatically be compatible with SATA. In fact, this depends on whether the connector follows the SAS-3 SATA compatibility pin definition (such as SFF-8482 supports, SFF-8643 supports, but some custom connectors may not support).
Misunderstanding 2: Using the sff 8643 to sata cable for reverse connection (SATA hard drive end connected to SFF-8643 to HBA), this is completely feasible, but be aware of the cable directionality. Most cables are direct connections and do not require drivers.
Selection core: If only connecting SATA hard drives, choose the passive sff 8643 to sata cable; if connecting SAS hard drives or expanders, then must use SAS native cables, avoiding using adapter solutions.
In summary, from the high-speed physical carrying of 12G SAS connectors, to the logical resource management of SAS ports, to the flexible conversion of sff 8643 to sata, this link perfectly interprets how enterprise storage can maintain high-speed unified standards while achieving compatibility with the existing SATA ecosystem through physical layer conversion. Understanding these three components is equivalent to mastering the key to the entry-level of modern internal storage connection topology.
