SFF-8654 to SFF-8643 SlimSAS Connection in Practice
In server, storage systems, and high-performance computing environments, the SAS (Serial Attached SCSI) interface has long played a central role. It supports high-speed data transfer, is compatible with SATA drives, and enables daisy-chaining of multiple devices. As storage density and data bandwidth demands increase, the physical form factors of connectors have continuously evolved. Among these, SFF-8654 (SlimSAS) and SFF-8643 are two key standards. This article will explore the differences, conversion solutions, and application scenarios between these two port types within the context of "SAS connectivity."
1. Traditional SAS Connector Forms
During the SAS-2 (6Gbps) and SAS-3 (12Gbps) eras, common internal connectors included:
- SFF-8482: The standard interface used on device ends (hard drives), compatible with SATA.
- SFF-8087: Internal Mini SAS interface commonly found on RAID cards or backplanes, supporting 4 lanes with up to 12Gbps per lane.
- SFF-8643: The internal Mini SAS HD interface introduced in the SAS-3 era, offering 4 lanes, smaller footprint, and improved signal integrity.
With the arrival of SAS-4 (22.5Gbps) and PCIe 4.0/5.0, bandwidth requirements surged dramatically, necessitating upgrades in pin density and shielding design for traditional connectors. As a result, the SlimSAS standard began gaining widespread adoption.
2. Introduction to SFF-8654 (SlimSAS)
The SFF-8654 specification, developed by the SNIA SFF Technical Advisory Group, is commonly known as SlimSAS. Its main features include:
- Higher density: Compared to SFF-8643, it offers more pins within the same width, typically available in 4x, 8x, and even 16x configurations.
- Multi-protocol support: Besides supporting SAS (up to SAS-4 at 22.5Gbps), it natively supports PCIe (up to PCIe 5.0 at 32Gbps) and is widely used in modern storage interfaces such as NVMe, U.2, and U.3.
- Universal use for internal and external applications: SFF-8654 defines both internal and external versions, with the external variant featuring a more robust locking mechanism.
Common variants include:
- SFF-8654 4i: 4 lanes, typically used to connect a single U.2 NVMe SSD or SAS drive.
- SFF-8654 8i: 8 lanes, capable of connecting two U.2 devices or high-bandwidth RAID cards.
3. Review of SFF-8643
SFF-8643 (Mini SAS HD Internal) was the dominant high-density internal interface during the SAS-3 era:
- Fixed at 4 lanes, each operating at 12Gbps, delivering a total bandwidth of up to 48Gbps in SAS mode.
- Typically used to connect RAID/HBA cards to backplanes or directly to SAS-compatible backplanes.
- The connector consists of a plastic housing with metal contacts; it provides moderate plug-in force but has a significantly larger physical footprint than SFF-8654.
IV. Why Is an SFF-8654 to SFF-8643 Conversion Needed?
In real-world engineering deployments, it is very common to mix new and old equipment. Typical scenarios include:
- New RAID cards or motherboards using the SFF-8654 interface, while the backplane or expander still features SFF-8643 inputs: For example, a new generation of storage controllers supporting PCIe 4.0 may use SlimSAS interfaces, whereas the internal SAS backplane in a server only provides SFF-8643 ports.
- Reusing existing cabling resources: Data centers often already have large quantities of SFF-8643-to-SFF-8639 (U.2) or SFF-8482 cables and wish to connect them to new SlimSAS host ports.
- Testing and debugging: Engineers may need to capture signals on SlimSAS ports using traditional SAS analyzers equipped with SFF-8643 inputs.
As a result, SFF-8654-to-SFF-8643 adapter cards or passive straight-through cables have emerged as practical solutions.
V. Physical and Electrical Compatibility
Important premise: The conversion itself is passive and electrical, but protocol compatibility must be ensured.
| Direction | Protocol Compatibility | Bandwidth Limitation | Notes |
| SFF-8654 end (SAS mode) → SFF-8643 (SAS device) | Fully compatible; SAS protocol transparently passed through | Limited by the lower of the two (e.g., SAS-3 at 12 Gbps) | If the SFF-8654 operates in PCIe mode, it cannot connect to a pure SAS backplane |
| SFF-8654 end (PCIe/NVMe mode) → SFF-8643 (SAS-only) | Incompatible | N/A | Will result in link training failure or no device detection |
Therefore, before using such conversion cables or adapters, it is essential to confirm that the SFF-8654 source port is operating in SAS mode. Most motherboards or RAID cards allow their SlimSAS ports to be configured via BIOS or firmware settings as SAS, PCIe, or tri-mode (SAS/SATA/NVMe).
VI. Types of Conversion Solutions
Passive Straight Cable
One end features an SFF-8654 connector (4i or 8i), and the other end has an SFF-8643 connector, with pins connected one-to-one internally. Suitable only for short distances (under 1 meter) and when both ends carry SAS signals. Commonly used as custom internal cables within servers.
Internal Adapter Board
A small PCB board with an SFF-8654 socket on one side and an SFF-8643 socket on the other, designed for fixed installation inside chassis. Some adapter boards also include signal repeaters (redriver) to compensate for signal loss over long cable runs.
External Adapter
Converts an external SlimSAS port (SFF-8654 external type) into an internal SFF-8643 interface, useful in test racks or expansion cabinets where mixed equipment is deployed.
VII. Application Example
Scenario: A data center is upgrading its storage nodes. Newly purchased HBA cards feature an SFF-8654 8i interface (supporting SAS-4), but the existing 12G SAS backplane has only two SFF-8643 input ports.

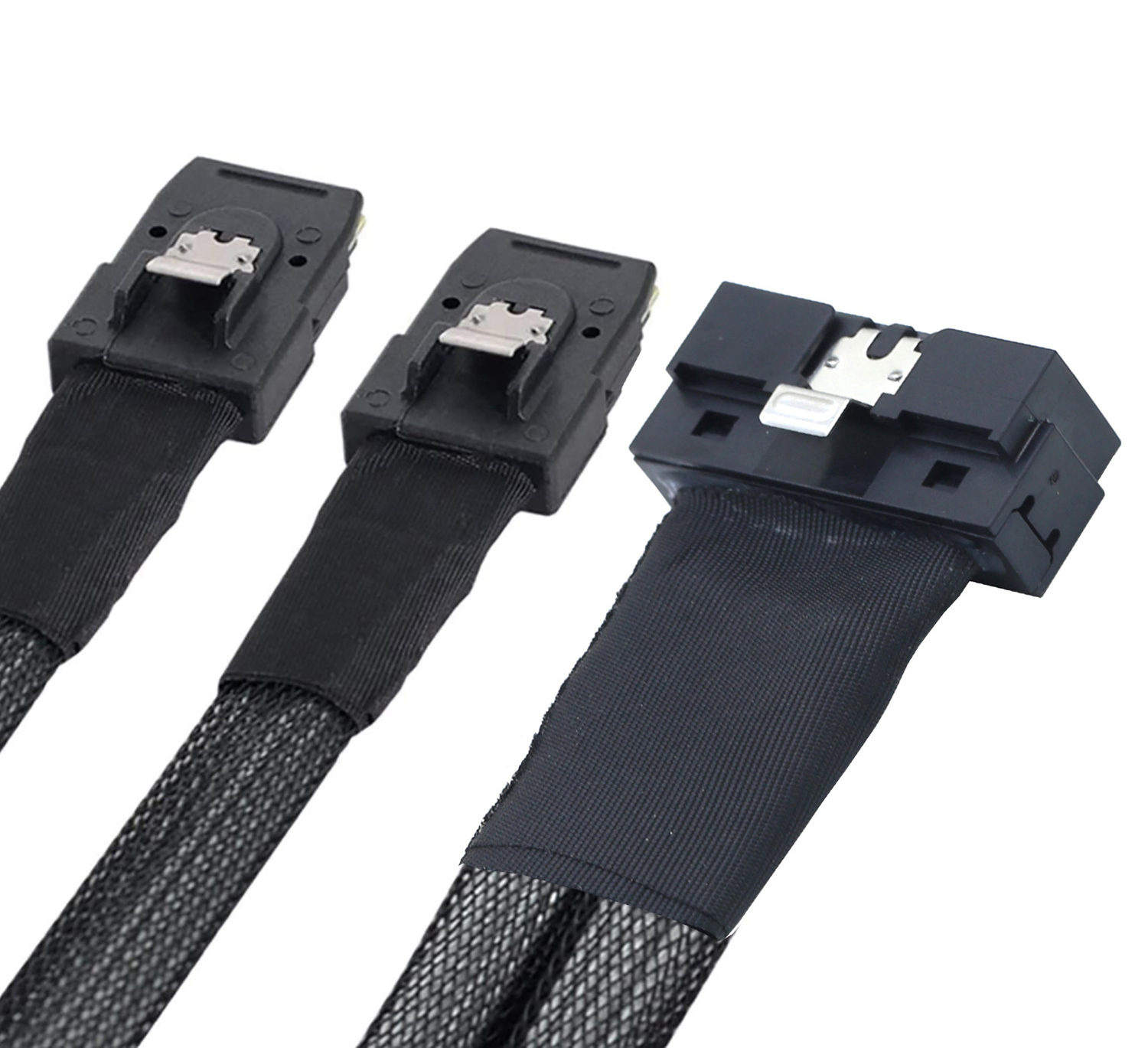

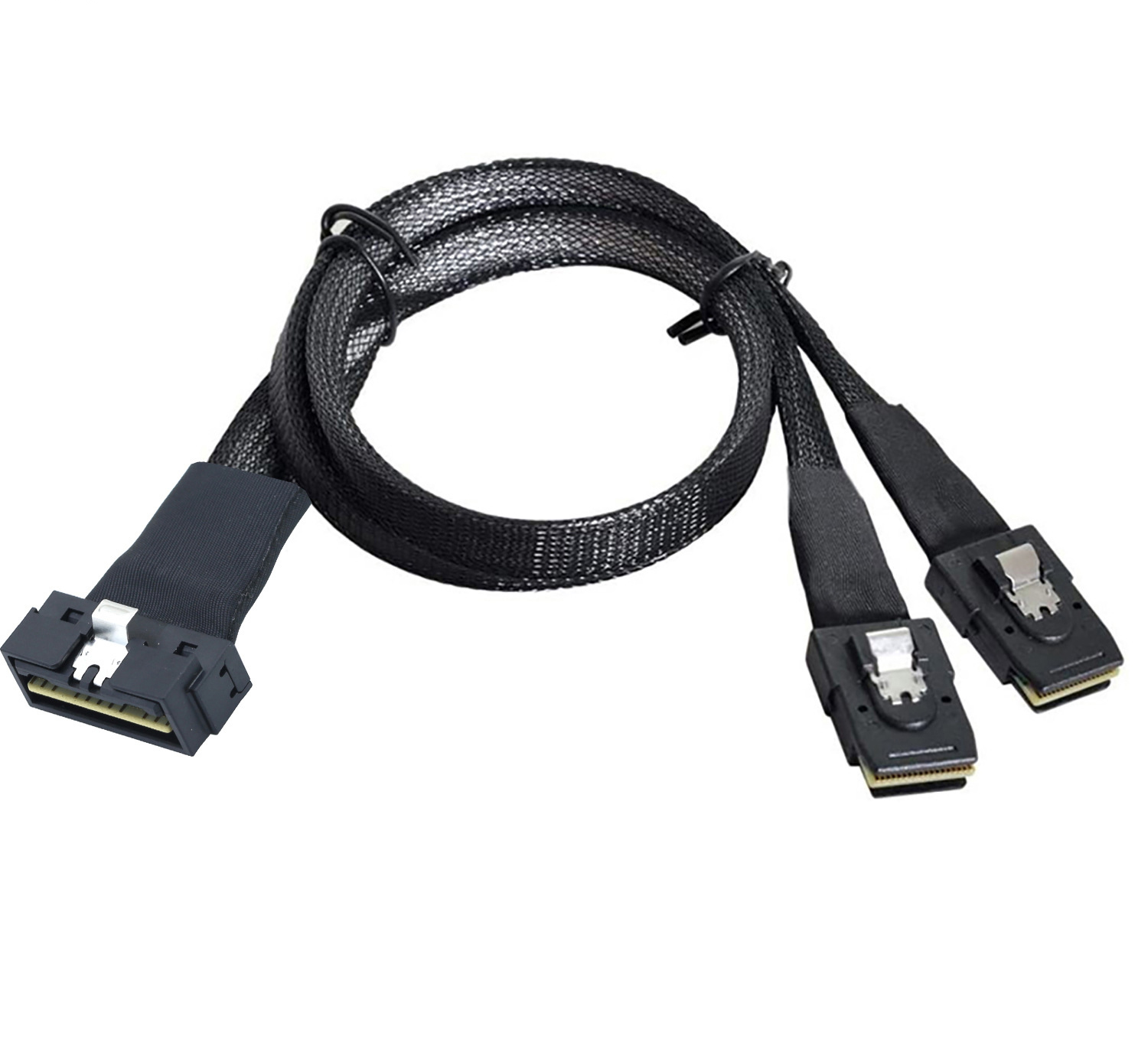

Solution: Use a "SFF-8654 8i to dual SFF-8643" Y-type cable. One end connects to the host’s SlimSAS plug, branching into two standard SFF-8643 plugs that connect to the two input ports on the backplane. The HBA card is configured in SAS mode, providing four lanes per branch (eight lanes total). Drives on the backplane operate at 12 Gbps, and future upgrades to 22.5 Gbps drives can be supported without replacing the backplane.
VIII. Purchase and Deployment Considerations
Confirm channel number matching: SFF-8654 has 4i/8i/16i options, while SFF-8643 is fixed at 4 channels. If 8i is converted to two 8643 units, it is a reasonable allocation; if 4i is converted to a single 8643 unit, it is directly usable; if 8i is converted to a single 8643 unit, it will waste 4 channels.
Cable length: Passive copper cables are recommended to be no more than 1.5 meters, especially when SAS-3 or higher speeds are involved. Longer distances require active (with Redriver or Retimer) cables.
Grounding and shielding: SlimSAS connectors have more closely spaced pins. Pay attention to choosing qualified cables; otherwise, crosstalk may occur, leading to link CRC errors.
Backplane power supply: Conversion cables do not transmit power. Ensure that the backplane is independently powered or obtain 12V/5V through other power interfaces.
IX. Future Trends
As PCIe 5.0 and SAS-4 gradually become widespread, SFF-8654 SlimSAS is rapidly replacing the position of SFF-8643 in new designs. However, due to the extremely strong backward compatibility of the SAS ecosystem, SFF-8643 devices will still exist in a large number of existing systems for the next 5-8 years. Therefore, the SFF-8654 to SFF-8643 conversion solution will exist as an important system integration method for a long time.
Ultimately, which interface to choose depends on your requirements for bandwidth, protocol flexibility, and physical density. If you need to support NVMe over SAS or a hybrid storage pool, directly using a full SlimSAS link is a more concise solution; in cost-sensitive or legacy scenarios, a reasonable adapter can effectively extend the lifespan of old equipment.
