The cable is plugged in, why isn't the hard drive being recognized？
During server maintenance or DIY high-density NAS (Network-Attached Storage) projects, we frequently encounter various types of "data cables" with different interface specifications.

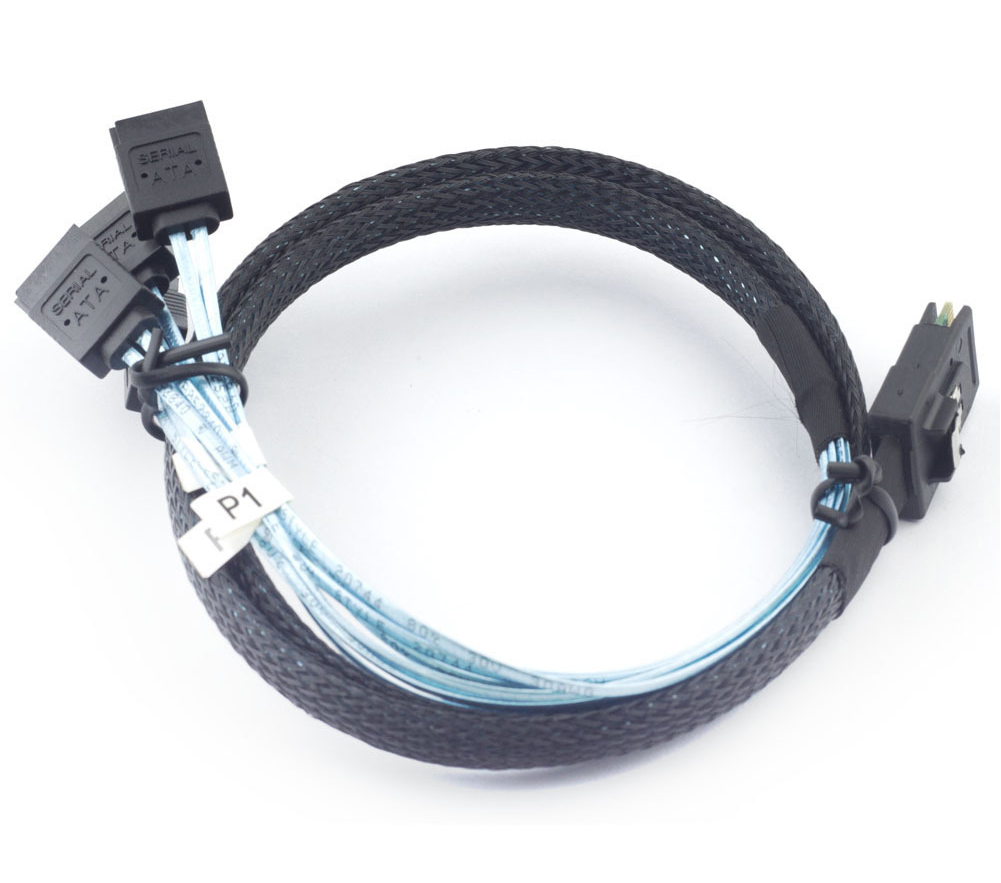

1. Traditional Bridge: SFF-8087 to SFF-8088 (Internal-to-External Conversion)
This is the most classic internal-to-external extension cable for servers.
Primary Use: SFF-8087 (Mini SAS 4i) is typically used inside the chassis to connect RAID cards to backplanes, while SFF-8088 (Mini SAS 4x) connects external disk expansion enclosures (JBODs). This cable essentially acts as a physical adapter, converting the narrow internal interface into a more robust external interface with fixed mounting posts.
Technical Limitations: It transmits SAS/SATA protocols with a typical bandwidth of 12 Gbps (corresponding to SAS 3.0). Although reliable and stable, this cable severely limits performance when used with NVMe SSDs and cannot carry PCIe signals.

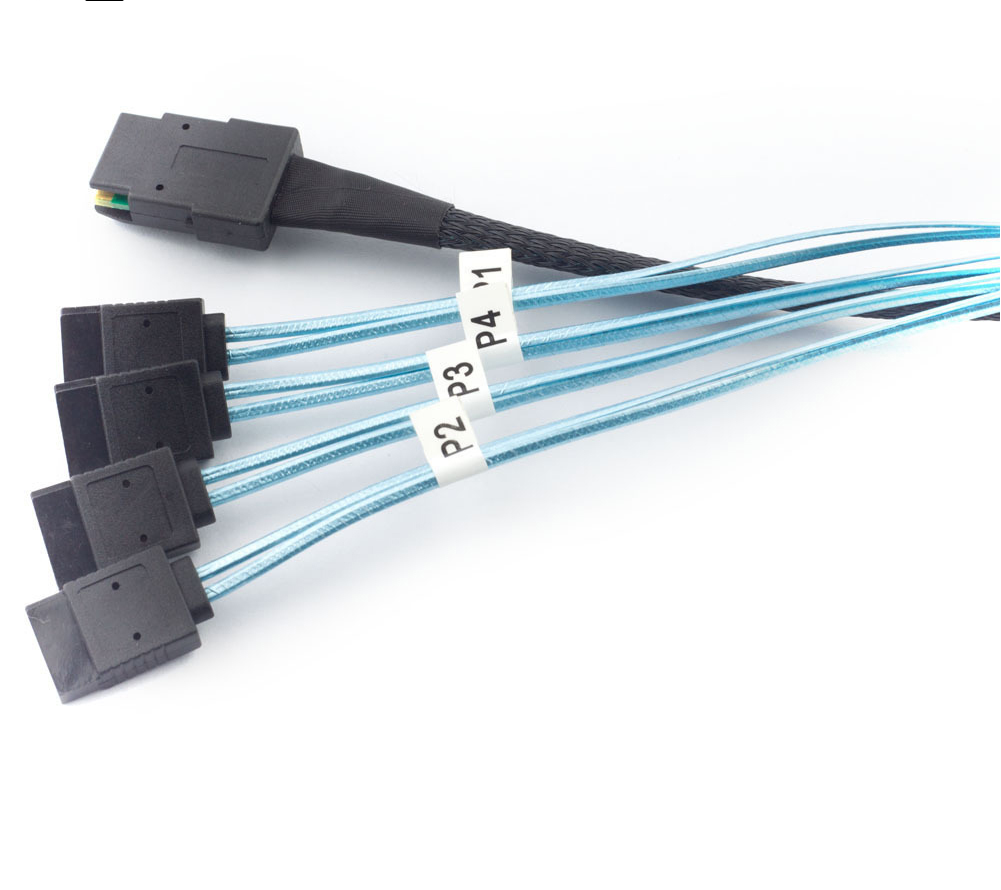

2. Transitional Solution: SFF-8087 to OCuLink 4I (Protocol Cross-Over)
This cable was designed to connect new-generation NVMe backplanes without replacing existing older RAID or HBA cards.
Underlying Principle: Although OCuLink (PCIe Express external connector) provides a PCIe physical channel, this specific adapter only performs a physical conversion. It routes signals through unused pins or specially mapped definitions within the SFF-8087 interface to the OCuLink connector.
Key Note: Not all SFF-8087 ports support PCIe signaling. The cable will only function if the motherboard or HBA card explicitly supports "Tri-Mode" or is labeled "NVMe Ready." If connected to a traditional SAS RAID card, it will fail to recognize NVMe drives. This cable is commonly used to connect U.2 NVMe SSDs to compatible adapter cards.
3. Future Mainstream: MCIO 74Pin (PCIe Gen 5 Direct Connection)
This is the most advanced server internal connectivity solution available today, completely abandoning legacy SAS-era designs.
Form Factor and Bandwidth: The MCIO (Mini Cool Edge IO) 74Pin connector has a narrower profile than SFF-8654 but features extremely high pin density. Designed specifically for PCIe Gen 5 (5th generation), a single cable supports up to 8 PCIe lanes (x8) with bandwidth reaching 32 GT/s.
Application Scenarios: In the latest GPU servers or all-flash arrays, the MCIO 74Pin directly connects the PCIe switch chip on the motherboard to E3.S or E1.S SSDs on the backplane. It eliminates protocol conversion and connects directly to the CPU, achieving ultra-low latency.
If you are procuring or installing these cables, please pay close attention to the following three points:
Protocol Compatibility is Critical:
- SFF-8087 to 8088 only supports SAS; NVMe drives will not be recognized.
- SFF-8087 to OCuLink requires verification that the PCIe pin definition on the motherboard side is fully supported.
- MCIO 74Pin only supports PCIe; inserting SAS drives will result in complete non-recognition.
Physical Keying Differences:
- SFF-8087 features metal spring clips, which are easy to insert and remove but may loosen over time.
- OCuLink has a metal housing providing moderate interference resistance.
- MCIO 74Pin is highly precision-sensitive—insertion and removal must be perfectly horizontal. Diagonal insertion is strictly prohibited, as it can easily damage the expensive connector on the motherboard.
Cable Length and Signal Attenuation:
- SAS signals (SFF-8087/8088) support passive copper cables over 1 meter.
- OCuLink cables should not exceed 1 meter.
- For PCIe Gen 5 MCIO cables, keep length under 0.8 meters. For longer runs, use active Retimer (re-timing) cables; otherwise, significant speed degradation or failure to initialize may occur.
Summary: How to Choose?
If connecting to an old mechanical hard drive array, choose SFF-8087 to 8088.
If temporarily testing an old HBA card with a new U.2 disk, choose SFF-8087 to OCuLink 4I (make sure the motherboard supports it).
If assembling a new Gen5 all-flash server, simply choose MCIO 74Pin and get it done in one step.
The physical interface is just the surface. What truly determines the transmission efficiency is the protocol signals carried behind the cables. In today's PCIe 5.0 era, MCIO is gradually replacing the SFF series and becoming the new standard for internal interconnection in data centers. I hope this article can help you clarify your thinking and avoid the awkward situation of "the cable can be plugged in, but the hard drive doesn't recognize it".
