Why do red SFF connectors keep causing issues when inserted into SAS devices？
In modern servers, NVMe direct-attached backplanes, and edge computing devices, connector density and signal integrity requirements continue to rise. The SlimSAS SFF-8654, a high-density connector interface supporting both PCIe and SAS protocols, is gradually replacing traditional Mini SAS HD in certain space-constrained applications. However, an often-overlooked phenomenon in engineering practice is that red SFF connectors may experience signal degradation or mechanical latching failure when used for SAS insertion. This article aims to analyze the technical reasons behind this issue.

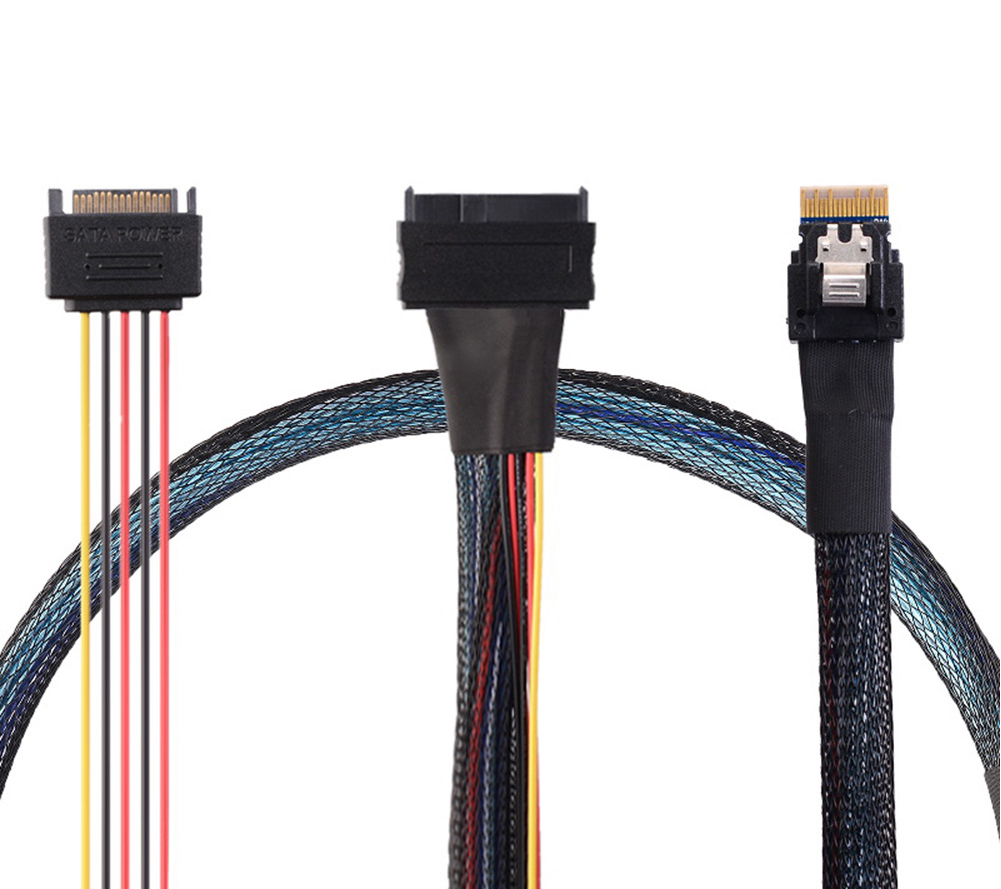

1. SlimSAS SFF-8654: Physical and Electrical Characteristics
The SFF-8654 (commonly known as SlimSAS) is a 74-pin pluggable connector defined by the SNIA SFF Committee, supporting either 4 or 8 differential lanes. With a pin pitch of just 0.6 mm—significantly smaller than the 0.8 mm of traditional Mini SAS—it can operate in PCIe Gen4/Gen5 or SAS-3/4 (12/22.5 Gbps) modes.
Physically, SFF-8654 comes in two common configurations:
- Right-angle / vertical plug (for cable end)
- Surface-mount receptacle (for PCB or backplane)
2. The Meaning of "Red SFF"
In the connector industry—particularly among storage backplane manufacturers such as Molex, TE, and Amphenol in non-public product lines—"red SFF" is not a standardized designation but rather an engineering visual marker. In practice, "red" may indicate:
- A special temperature rating (e.g., automotive or industrial grade from -40°C to 125°C), typically marked with a red plastic housing;
- A keying or anti-misinsertion color code (used to distinguish PCIe-only versions from SAS-compatible ones);
- A warning color from a contract manufacturer indicating significantly lower rated insertion durability (e.g., 50 cycles instead of the standard 250 cycles).
More importantly, some OEM service manuals use "Red SFF" to label connector versions compatible only with low data rates or passive cables.
3. Special Requirements for SAS Insertion
SAS (Serial Attached SCSI) insertion involves more than just physical mating. Electrically, it requires:
- Ground pins to make contact before signal pins (controlled sequencing);
- Side springs or latches providing consistent retention force (to prevent link reset due to vibration);
- Differential pair skew < 2 ps (for 22.5 Gbps SAS-4);
- Return loss below -10 dB up to 5 GHz.
Unlike PCIe, SAS controllers perform spread-spectrum clocking (SSC) and out-of-band (OOB) handshaking. Any impedance mismatch or mechanical micro-motion during insertion could be interpreted as a disconnection event, triggering a link reset.
4. Failure Mode: When "Red SFF" Meets SAS Insertion
In actual failure reports, engineers described that when an SFF-8654 socket with a red housing was used on the backplane and a standard SAS cable or SAS hard drive adapter was inserted, the system intermittently lost drives; switching to black or blue standard SFF-8654 connectors restored normal operation.
Analysis points to three possible causes:
| Phenomenon | Physical Cause |
| Abnormally low insertion force | The latch spring of the red SFF was incorrectly selected with low normal force (<0.5N), unable to resist SAS drive seek vibrations → fretting wear leads to oxide formation |
| Insufficient signal pin plating | To reduce cost, gold plating thickness was reduced from 30μ″ to 15μ″ (gold over nickel underlayer); friction during SAS insertion and removal exposes the underlying nickel → high contact resistance |
| Missing staggered backplane pins | Some red versions omitted the "longer ground pin" design (to save mold costs), violating SAS's requirement for grounding before signaling → charge injection damages SerDes upon insertion |
5. Troubleshooting and Recommendations
If you encounter link anomalies in your system integration involving SlimSAS SFF-8654 + SAS devices + red connectors:
- Check the connector datasheet’s protocol compatibility table.
- Confirm whether it explicitly states “SAS-3/4 Compatible.”
- If not, assume it supports PCIe Gen3 only by default.
- Perform insertion retention force testing.
- Standard SFF-8654 mating force should be 15–35N; red connectors below 12N are not recommended for SAS use.
- Examine contact surfaces under microscope.
- Blackening or exposed copper indicates insufficient plating.
Alternative Solutions:
- Replace with SFF-8654 connectors known to comply with SAS standards (typically black, white, or blue).
- Or downgrade to SAS-2 (6Gbps) to accommodate lower signal integrity requirements. Conclusion
"Red SFF" is not an official standard, but in engineering contexts it has evolved into a warning signal—typically indicating a SlimSAS SFF-8654 connector optimized for cost or specific low-performance scenarios. When used in serious SAS insertion applications, such connectors often reveal shortcomings in contact reliability, pin sequencing, and mechanical retention. Therefore, in designs involving SAS storage systems, connectors that explicitly support the SAS standard should be prioritized by color/series, rather than relying solely on physical interchangeability.
