Why does Micro HDMI have to bend？
In the era of high definition, HDMI is almost synonymous with "video transmission". However, when we shift from televisions and projectors to micro drones, action cameras, single-lens reflex monitors, and even single-board computers like the Raspberry Pi, the standard-sized HDMI interface becomes a luxury - its physical size is too large for these devices.
Thus, Micro HDMI Type D was born. And a special variant of it - Right Angle Micro HDMI - further solves another practical problem: space and cable routing.
I. What is Micro HDMI Type D?
Let's do a quick size comparison:
Standard HDMI (Type A): approximately 13.9 mm wide
Mini HDMI (Type C): approximately 10.4 mm wide
Micro HDMI (Type D): approximately 6.4 mm wide and 2.8 mm high
The shape of the Type D interface is completely different from traditional HDMI - it resembles a flat, double-sided usable rectangle, with two rows of pins squeezed into an extremely narrow space, totaling 19 contacts (with the same functionality as standard HDMI).
Its design goal is simple: to retain full HDMI 1.4 functionality (4K@30Hz, Ethernet channel, ARC audio return, etc.) on extremely small devices. Therefore, you will find it on the following devices:
Some action cameras (such as GoPro Hero 5/6/7)
Compact single-lens reflex and mirrorless cameras from brands like Sony and Panasonic (for outputting images to external monitors)
Some older tablet computers and ultrabooks (such as the first-generation Surface Go)
Raspberry Pi 4 (its two micro HDMI ports once prompted a global update of DIY players' equipment)
II. Right Angle Micro HDMI: When Space Turns
Even though Micro HDMI is already very small, after inserting the cable, the tail of the cable still protrudes at least 2-3 cm from the side of the device. In some extremely compact scenarios - such as mounting a camera on a stabilizer, routing cables inside a drone arm, or fitting a development board into a small handheld device case - this "straight tail" may be more of a headache than the interface itself.

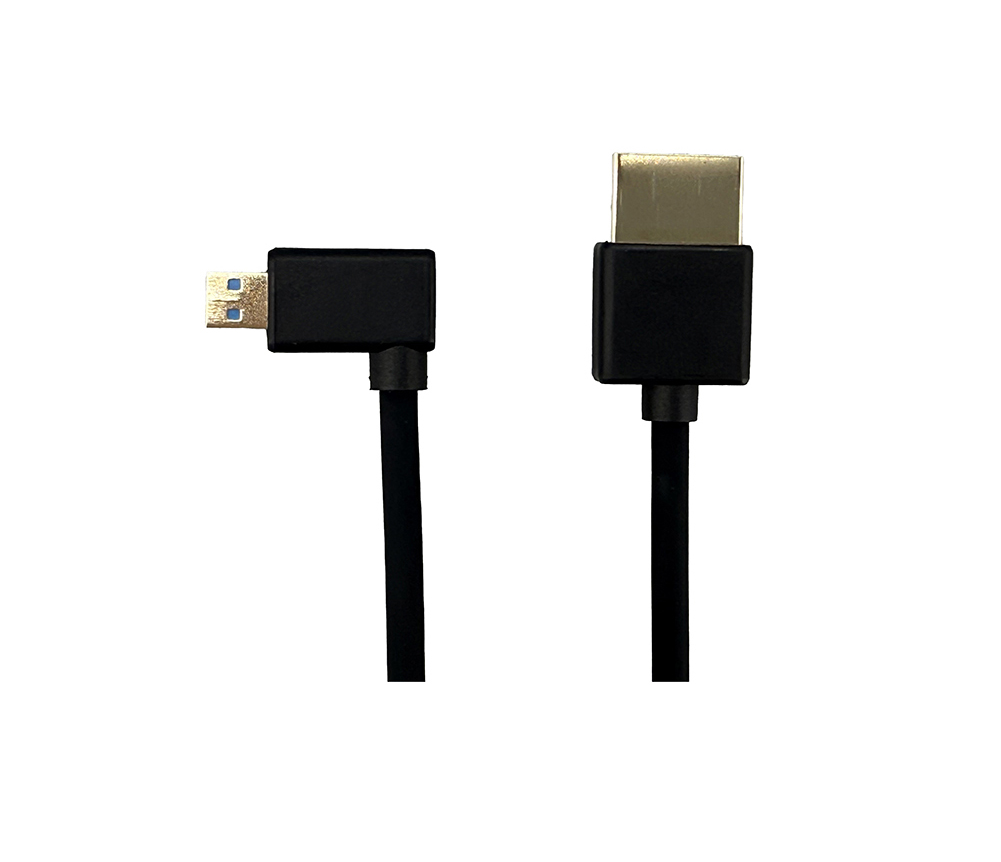

Thus, Right Angle Micro HDMI (right-angle Micro HDMI connector or adapter) was born. Its plug is still Type D size, but the cable exit direction is at a 90-degree angle to the plane of the plug. In simpler terms:
Originally, the cable went straight out from the side; now, the cable can run along the surface of the device to the back or bottom.
Depending on the actual design requirements, right-angle Micro HDMI comes in two common directions:
Up/Down Bending: suitable for devices with limited side edge height but space on the back
Left/Right Bending: suitable for devices where the thickness direction is fully occupied but the side allows the cable to run horizontally along the edge
This adapter is very common in professional video shooting, drone modification, and embedded system integration. For example, if you connect an Atomos monitor-recorder to a mirrorless camera with a straight micro HDMI cable, the bending radius of the cable might cause the stabilizer to get stuck; with a right-angle adapter, the cable can run directly along the side of the camera, completely avoiding the gimbal arm.
III. D Type HDMI: A Confusing Term
"D Type HDMI" is often used in everyday language to refer to Micro HDMI Type D. However, some people also use it to describe a less common type of "dual-sided HDMI" counterfeit cables, or mistakenly apply it to certain customized miniature HDMI derivative specifications.
Strictly speaking, in the official HDMI naming system:
Type A → Standard HDMI Type C → Mini HDMI
Type D → Micro HDMI
So "D Type HDMI" is actually Micro HDMI Type D, not two different standards. But why is it singled out as a keyword? Because on e-commerce platforms (Taobao, Amazon, eBay), many sellers list "Micro HDMI", "Type D", and "D-type HDMI" as separate terms to cater to different users' search habits.
Four. When combined: A typical practical example
Imagine you are assembling an FPV drone:
The transmission module needs a Micro HDMI Type D interface to receive the picture from the camera;
However, the internal width of the arm is only 10 mm, and the straight micro HDMI cable cannot fit inside;
You found a Right Angle Micro HDMI cable, with the cable head facing down and tightly adhering to the PCB board of the module, perfectly avoiding the carbon fiber arm;
When purchasing, you entered "D Type HDMI Right Angle" in the search box and successfully found the compatible model.
This is the relationship among the three: D Type HDMI is the physical standard, Right Angle is the structural form, and Micro HDMI is the common daily name.
Five. Some practical reminders
Micro HDMI is very fragile
The mechanical strength of the Type D interface is significantly weaker than that of the standard HDMI. Frequent plugging and unplugging, excessive force, or using non-standard cables can easily cause the interface on the device to come loose or the solder pads to tear. If it is a welding interface on a drone or camera, the repair is very troublesome.
Right Angle ≠ Compatible in all directions
When purchasing a Right Angle Micro HDMI cable, be sure to check the product diagram and instructions. Some are "downward bent", some are "leftward bent", and if installed in the wrong way, they cannot fit into your equipment slot.
Cable length and signal attenuation
When transmitting 4K signals via Micro HDMI, if the cable length exceeds 2–3 meters, it is best to add a signal amplifier or choose an active optical cable; otherwise, it is prone to flickering or black screen.
From Type A to Type D, the physical size of HDMI has been reduced by more than half, but the function has not been compromised. And the emergence of Right Angle is essentially another compromise and optimization in the engineering world to "space constraints". You may not use them every day, but in those delicate handheld devices, the miniature drones that can fly over tree branches, or the camera in the photographer's backpack that monitors the live picture, that flat and curved small interface is quietly completing countless silent signal transmissions.
The next time you complain that "this interface is really hard to plug in" - perhaps think about that the person who designed it might have stuffed the entire high-definition world into a width of 6.4 mm for you.
