With so many SAS cables available, how do you choose between SFF-8088, SFF-8087, and SFF-8482?
When building servers, external storage arrays, or DIY high-capacity NAS systems, choosing the right SAS (Serial Attached SCSI) interface and cabling can be confusing. This article clarifies the common SAS physical interfaces and their interconnection methods by focusing on three key concepts: SFF-8088, SAS cable types, and the SFF-8087 to SFF-8482 adapter.
1. SFF-8088: The Robust External Channel

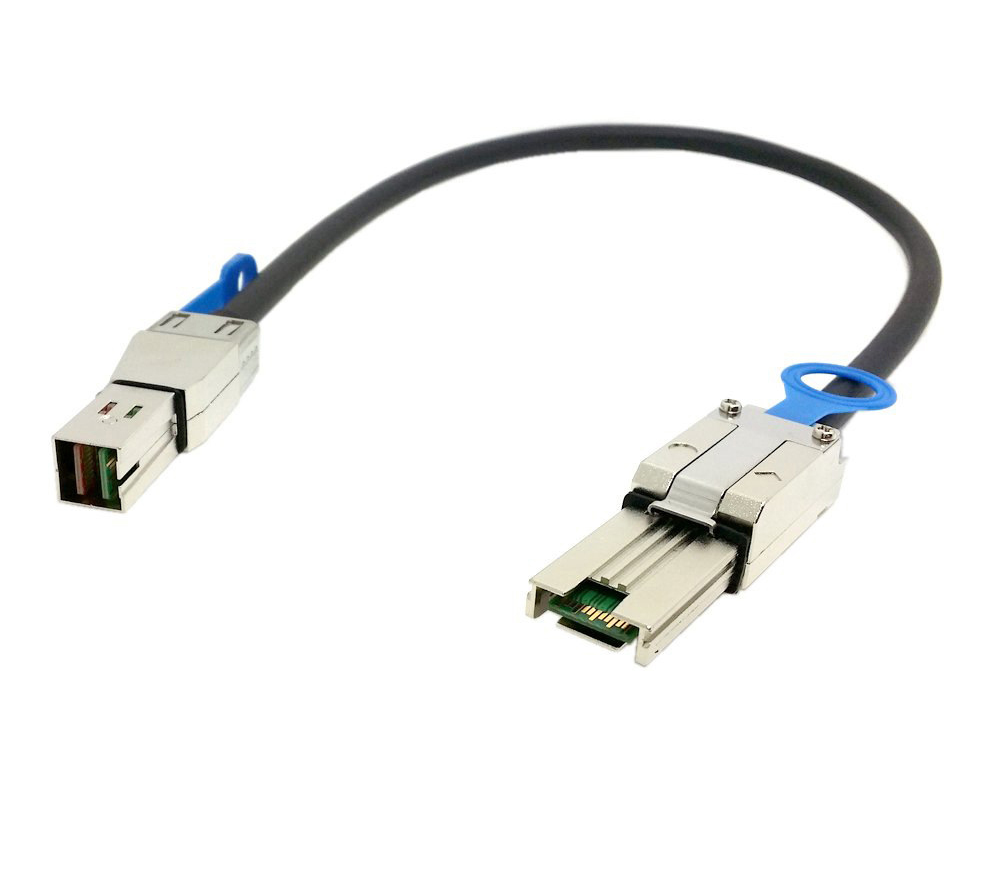

SFF-8088 is a 4-lane external SAS interface commonly found on the back of RAID cards, HBAs, or disk expansion enclosures (JBODs).
Shape: Rectangular with metal latching contacts, resembling a thicker USB or InfiniBand connector.
Speed: Supports SAS 1.0 (3 Gbps), 2.0 (6 Gbps), and 3.0 (12 Gbps) per lane, delivering up to 48 Gbps total bandwidth across four lanes.
Use case: Connecting external SAS disk enclosures or directly linking two servers via SAS.

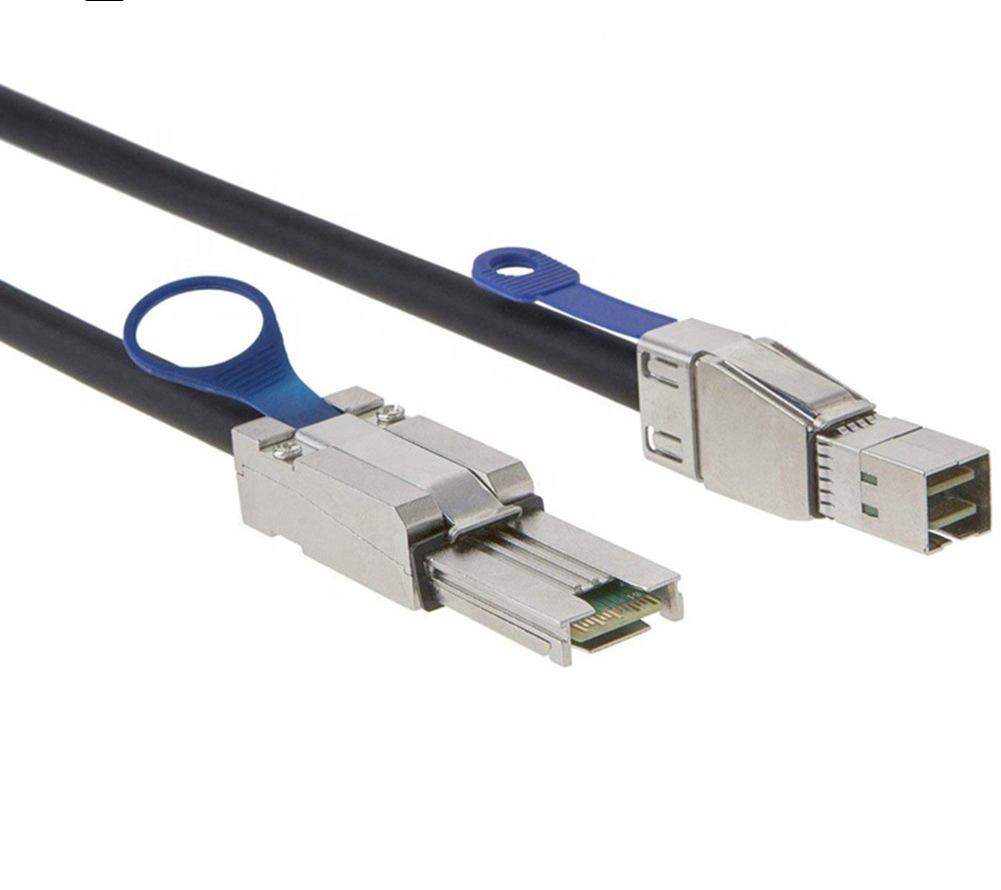

Cable match: External SFF-8088 to SFF-8088 cable (typically used for distances between 2 and 4 meters).
If you see a square-shaped port labeled "SAS OUT" or "EXT" on the back of a server, it's likely an SFF-8088.
2. SAS Cable Types: Distinguishing Internal from External
SAS cables are categorized based on internal/external usage and terminal connectors. Common types include:
| Type | Connector 1 | Connector 2 | Typical Use Case |
| Internal mini SAS | SFF-8087 (internal) | SFF-8087 (internal) | RAID card to backplane |
| Internal to direct connect | SFF-8087 | SFF-8482 (x4) | Direct connection to SAS/SATA drives |
| External mini SAS | SFF-8088 (external) | SFF-8088 (external) | Host ↔ JBOD |
| Internal-to-external adapter | SFF-8087 (internal) | SFF-8088 (external) | Chassis panel adapter card |
| External-to-internal adapter | SFF-8088 | SFF-8087 (with bracket) | Connecting external enclosures to internal backplanes |
Additionally, there are smaller variants such as SFF-8643/8644 (for 12 Gbps SAS 3.0) and SFF-8654 (used for 24 Gbps SAS/PCIe). However, for existing SAS 6G devices, SFF-8087 and SFF-8088 remain the most widely used.
III. SFF-8087 to SFF-8482: The Most Practical "Direct Disk Connection Cable"
The SFF-8087 to SFF-8482 is a golden combination of internal adapter cables, enabling direct connection of standard SAS or SATA hard drives to a controller card.
SFF-8087 (Mini SAS 4i): A 4-lane internal interface commonly found on RAID cards or motherboard SAS ports.
SFF-8482: A single-drive SAS-compatible interface with a physical design nearly identical to SATA, except for a connecting notch in the middle, supporting both SAS and SATA drives.
Key point: An SFF-8482 plug can be inserted into a SATA drive, but a standard SATA cable cannot connect to an SAS drive (due to missing signal pins).
This cable is typically a fan-out cable that converts one SFF-8087 connector into four straight or right-angle SFF-8482 connectors.
One end plugs into the SFF-8087 port on a RAID card or HBA card.
The other four SFF-8482 connectors can directly attach to four individual hard drives (powered via a large 4D or SATA power cable).
It supports mixed usage of SAS and SATA drives (note: when using SATA drives, the link operates at SATA signaling speed; with SAS drives, it uses SAS protocol).
Typical applications:
DIY servers: When the motherboard lacks a direct SAS backplane, this cable allows 3.5-inch drives to be connected directly from an HBA card.
Hard drive cage modification: For older cases lacking a backplane, use an 8087-to-4×8482 cable to route the HBA card output to fixed drive bays.
Drive bad-sector testing: Perform low-speed batch testing without relying on a backplane by connecting drives directly.
IV. Example Setup: Full SAS Path from External to Internal
Suppose you have a host system equipped with an external SFF-8088 interface and an external 8-bay SAS JBOD, where the JBOD contains an internal SAS backplane (with SFF-8087 input).
A typical cabling setup would be:
Host side: SFF-8088 external interface
External cable: SFF-8088 to SFF-8088 copper cable (maximum length ~4–6 meters)
Inside the JBOD: The external port connects via a breakout board (SFF-8088 to SFF-8087) or is directly shorted internally
Backplane to drives: If the backplane supports direct connections, no additional cable is needed. However, if there's no internal backplane in the JBOD, use an SFF-8087-to-4×SFF-8482 cable to individually connect each drive.
With this configuration, the entire SAS chain is fully established.
V. Purchase and Precautions
SFF-8087 vs SFF-8088: Do not purchase them together. The 8088 has a wider head and an external shielding structure, and cannot be inserted into the internal interface.
Compatibility of SFF-8482: This interface comes with signal and power pins (but the power is usually still provided by a separate power cable, and some cables have a power connector). When purchasing, make sure it is either "4×SFF-8482 without power" or "with SATA power direct connection".
Cable Length: For the internal 8087 to 8482 conversion, it is recommended not to exceed 1 meter; for the external 8088, it is not recommended to exceed 4 meters (shorter at 12G).
Rate Matching: The old 8087/8088 design has a maximum of 6Gbps. If your device is SAS 3 (12Gbps), the SFF-8643/8644 series is preferred, but note that some 8087 cables can also run at 12G (not guaranteed). Conclusion
Understanding the SFF-8088 (external), SFF-8087 to SFF-8482 (internal direct connection) and their positions throughout the SAS cable types can help you avoid confusion when dealing with storage expansion. Whether you are using old array cards in a new rack, or building a bare-board server with direct hard drives, this connection path from the outside to the inside, from the controller to each hard drive, is clear and reliable.
