0.5 pitch 5~45pin FPC cable LVDS LCD panel Cable,FPC extension cable, Medical equipment wiring harness, robotic wiring harness, industrial equipment wiring harness-JD-IS07

Why Choose FPC / FFC Cable?

Flexible, Ultra-Thin and High-Density Interconnect Solutions

FPC/FFC Cable is a flexible wire solution specifically designed for internal connections in electronic devices, featuring ultra-thinness, flexibility, high density, space-saving, and ease of installation.

FPC (Flexible Printed Circuit) adopts a flexible printed circuit structure, where copper foil lines form circuit connections with the flexible substrate; FFC (Flexible Flat Cable) consists of multiple parallel conductors arranged between insulating films to form flat flexible cables.

With excellent flexibility and space utilization, FPC/FFC Cable is widely used in consumer electronics, laptops, tablets, monitors, automotive electronics, medical equipment, industrial equipment, printers, household appliances, and smart devices.

We can provide complete solutions ranging from standard FPC/FFC Cable to customized FPC/FFC Cable Assembly, and can be customized according to the customer’s Pitch, Pin Count, Length, Thickness, Circuit Layout, Connector, and application environment.

FPC vs. FFC

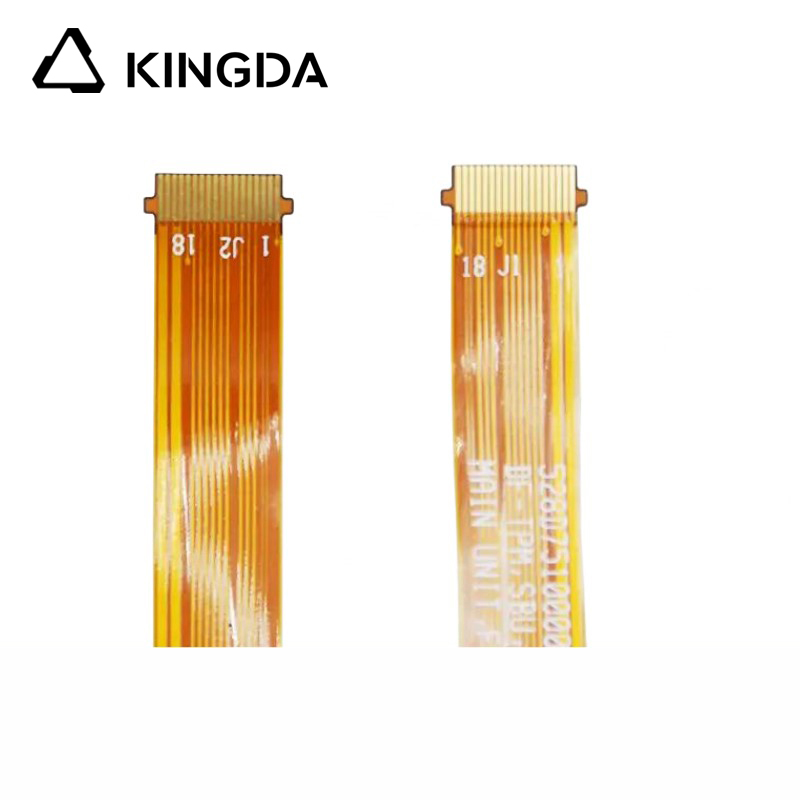

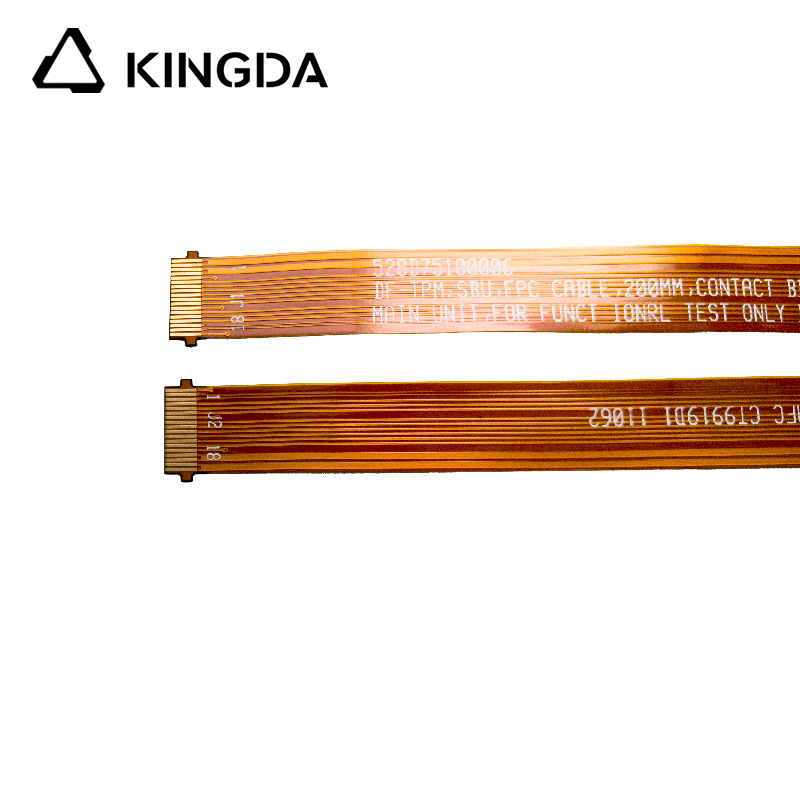

FPC — Flexible Printed Circuit

FPC is manufactured using flexible PCB technology, and the circuits can be designed into different shapes and routing patterns according to product requirements.

Key features:

Flexible Circuit Design

High Wiring Density

Custom Circuit Layout

Ultra-Thin Structure

Excellent Space Utilization

Suitable for Complex Connections

FPC is particularly suitable for electronic devices with limited space, complex wiring, and the need for three-dimensional bending of the wiring.

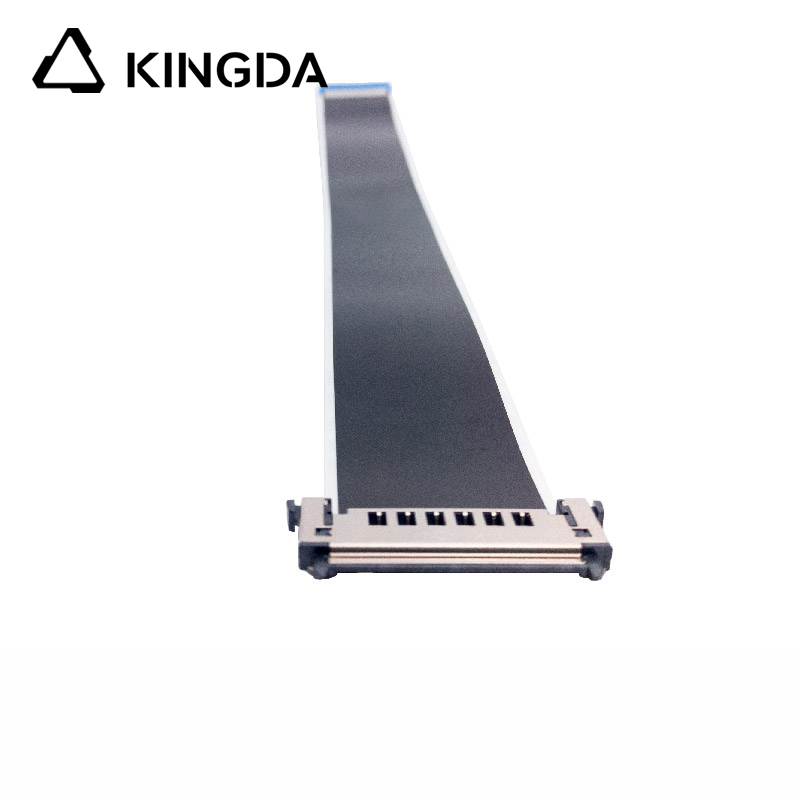

FFC — Flexible Flat Cable

The FFC adopts a parallel conductor structure, arranging multiple conductors in a fixed pitch and securing them with an insulating film.

Key features:

Flat Cable Structure

Parallel Conductors

Uniform Pitch

Thin and Flexible

Easy Assembly

Cost-Effective

FFC is more suitable for standardized, multi-core and large-scale internal connections in electronic products.

Product Structure

FPC Structure

Coverlay → Copper Circuit → Polyimide / Flexible Substrate → Copper Circuit → Coverlay

FFC Structure

Insulation Film → Parallel Conductors → Insulation Film

Key Advantages

1. Ultra-Thin and Space Saving

FPC/FFC Cable has a relatively thin structure, which can significantly reduce the space occupied within the equipment. It is particularly suitable for lightweight and highly integrated electronic products.

2. Excellent Flexibility

Flexible structures can accommodate bending, folding and complex wiring paths, and can be used in electronic devices that require dynamic or static bending.

3. High-Density Interconnection

By adopting a smaller Pitch and multiple Pin design, high-density electrical connections can be achieved within a limited space.

4. Lightweight

Compared with traditional circular wiring harnesses, FPC/FFC Cable is lighter in weight, which is beneficial for the miniaturization and lightweight design of electronic devices.

5. Easy Assembly

Standardized FFC/FPC Connectors can enable quick insertion and removal as well as automated assembly, thereby enhancing production efficiency.

6. Excellent Space Utilization

FPC can carry out customized routing and special design based on the internal structure of the product, effectively making full use of complex and irregular spaces.

7. Reliable Signal Transmission

By reasonably designing the width, spacing, copper thickness and impedance structure of the circuit, FPC can meet the transmission requirements of various types of power supplies, controls and high-speed signals.

FPC / FFC Cable Assembly

We offer from

Design → Material Selection → Circuit Fabrication → Connector Assembly → Electrical Testing → Final Inspection,

By integrating wires, circuits, connectors and assembly processes, we provide customers with a complete flexible connection solution.
