In enterprise servers, JBOD storage enclosures, and data center hardware deployment, SAS 3.0 12Gbps cable has become the mainstream standard for high-speed internal and external storage transmission. As the third generation of Serial Attached SCSI specification, it fully upgrades transmission bandwidth, signal stability, and compatibility compared with SAS 2.0 and SAS 1.0 versions.
Many system integrators and procurement engineers confuse SAS 3.0 cables with ordinary SATA or low-speed SAS wires, resulting in insufficient disk array performance, bandwidth bottlenecks, and unstable long-distance transmission. Choosing the correct Mini SAS cable specification is critical for enterprise storage stability and performance release.
This article systematically explains the definition, core specifications, working principle, key upgrades, and typical application scenarios of SAS 3.0 12Gbps cables, helping you complete standard and high-performance server storage wiring.
1. What Is SAS 3.0 12Gbps Cable?
SAS 3.0 is the third-generation Serial Attached SCSI transmission standard defined by the T10 technical committee.The 12Gbps represents the maximum signaling rate per SAS lane (PHY), which is the core technical identifier that distinguishes SAS 3.0 from older-generation SAS and SATA cables.
A SAS 3.0 12Gbps cable is a professional high-speed differential signal harness designed for enterprise-level storage arrays. It supports point-to-point full-duplex transmission and is widely used for connecting RAID/HBA cards, server backplanes, hard disk arrays, and external JBOD storage devices.
Different from consumer-grade SATA cables, SAS 3.0 cables focus on industrial stability, anti-interference performance, and reliable high-speed transmission, designed for long-term 7×24-hour enterprise storage environments.
2. Complete SAS 3.0 Core Specifications
The following parameters are the official standard specifications of SAS 3.0, which are also the core basis for distinguishing genuine 12Gbps high-speed cables from ordinary low-speed cables:
- Single-lane signaling rate: 12Gbps per PHY (double the 6Gbps rate of SAS 2.0)
- 4-lane configuration: Up to 48Gbps aggregate raw signaling rate
- Transmission distance: Typical passive cable applications support several meters of transmission distance depending on cable design, shielding structure and system signal loss requirements
- Signal mode: Differential low-voltage signal with strong anti-EMI interference performance
- Compatibility: Downward compatible with SAS 2.0 (6Gbps), SAS 1.0 (3Gbps), and SATA III devices
- Operating temperature: -40℃ to +85℃, suitable for harsh server room environments
3. How Does SAS 3.0 12Gbps Cable Work? (Working Principle)
3.1 Point-to-Point Differential Transmission Mechanism

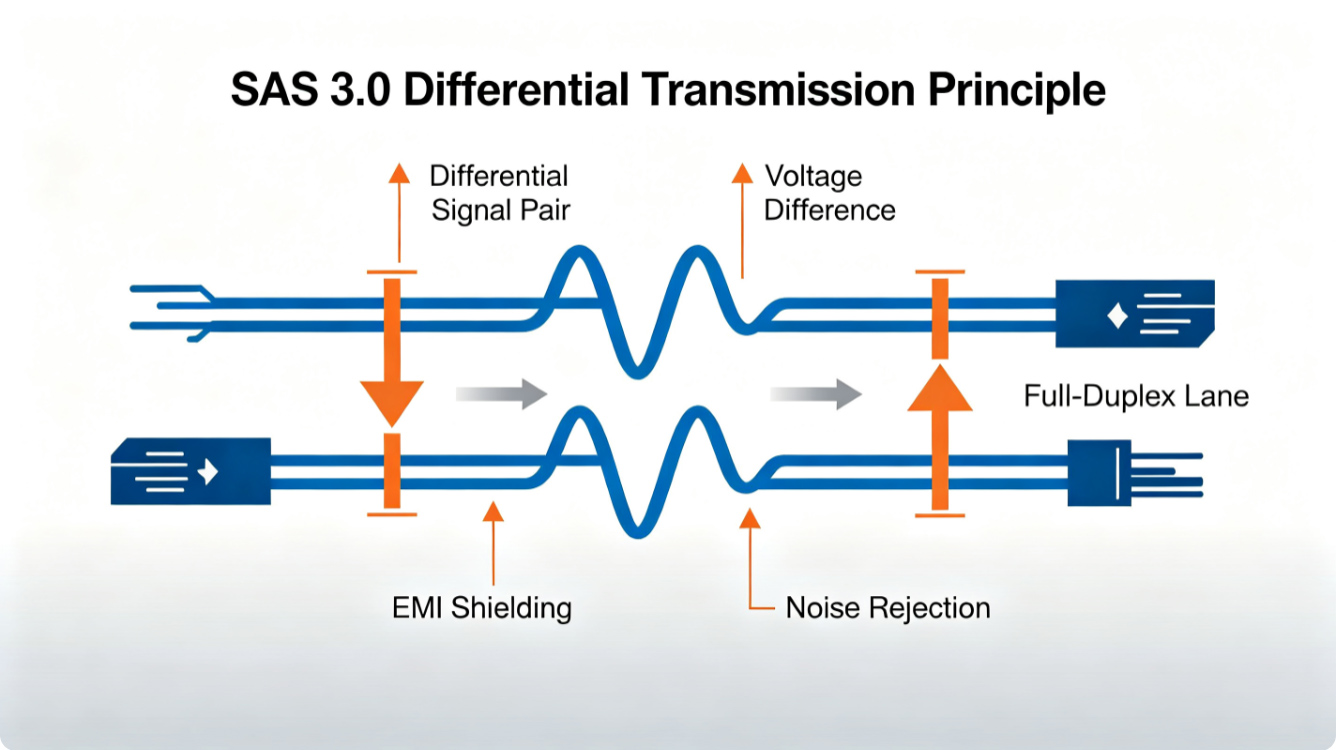

The core working principle of SAS 3.0 is serial differential signal transmission. Unlike parallel cables that are easily interfered, SAS 3.0 uses two paired signal lines for differential transmission. It identifies effective signals through voltage difference changes and eliminates most external electromagnetic noise.
Each SAS lane works independently in full-duplex mode, ensuring no data congestion during high-speed reading and writing of multiple hard disks.
3.2 Multi-Lane Parallel Aggregation

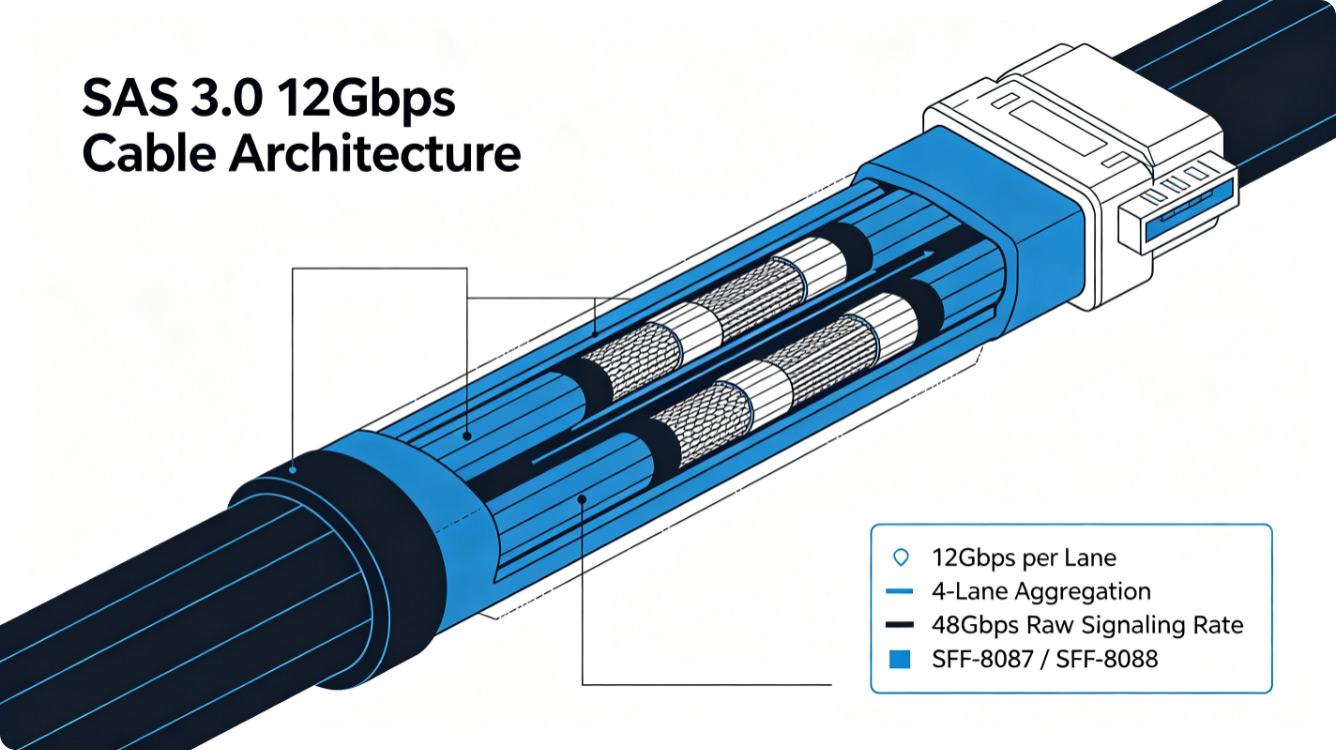

Common Mini SAS cables adopt a 4-lane integrated design. Four independent 12Gbps PHY signal channels are aggregated inside the cable, forming up to 48Gbps total raw signaling capacity. This mechanism supports simultaneous concurrent work of multiple hard disks in the server array and completely avoids single-channel bandwidth bottlenecks.
3.3 Dynamic Rate Adaptation
SAS 3.0 cables support automatic rate detection and adaptation. When connected with SAS 2.0 or SATA devices, it will automatically downgrade to match the device bandwidth, ensuring broad compatibility across different storage generations while retaining the highest transmission efficiency of the hardware.
4. SAS 3.0 vs SAS 2.0 vs SATA III: Key Differences for Enterprise Storage
Most server performance waste is caused by mismatched cable versions. The following structured comparison helps engineers and buyers quickly identify the right cable for enterprise storage deployments:
|
Specification
|
SAS 3.0 (12Gbps)
|
SAS 2.0 (6Gbps)
|
SATA III (6Gbps)
|
|---|---|---|---|
|
Max Single Lane Signaling Rate
|
12Gbps
|
6Gbps
|
6Gbps
|
|
Interface Design
|
Enterprise point-to-point
|
Enterprise point-to-point
|
Consumer storage interface
|
|
Duplex Mode
|
Full-duplex
|
Full-duplex
|
Half-duplex
|
|
Multi-device Support
|
Yes
|
Yes
|
Limited
|
|
Typical Application
|
Enterprise servers, RAID arrays, JBOD storage
|
Mid-range enterprise storage
|
PC and consumer-grade storage
|
|
Anti-interference Ability
|
Enterprise-grade strong shielding
|
Medium shielding
|
Consumer-grade weak shielding
|
|
Connector Example
|
SFF-8087 / SFF-8088
|
SFF-8087 / SFF-8088
|
Standard SATA Connector
|

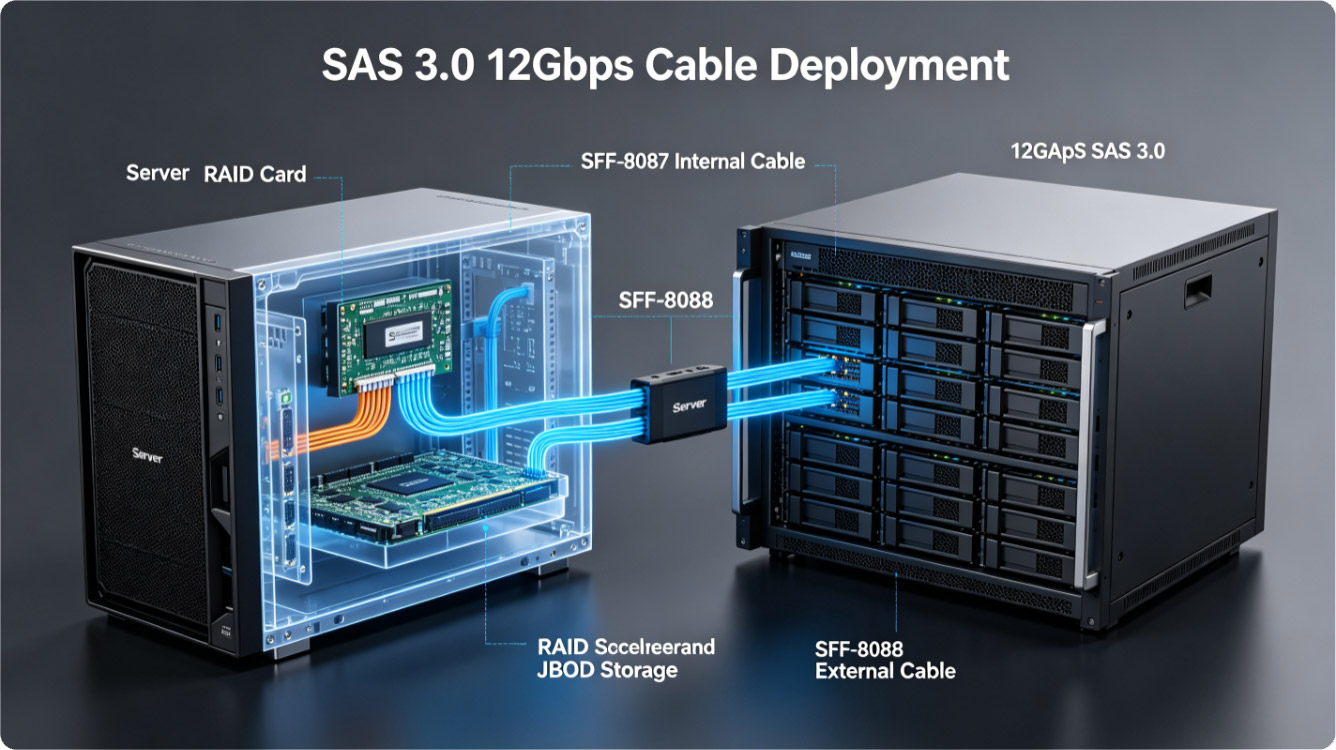

5. Main Types & Application Scenarios of SAS 3.0 Cables
According to the connector structure and usage environment, SAS 3.0 12Gbps cables are mainly divided into two core categories, covering all server storage deployment scenarios:
5.1 Internal SAS 3.0 Cable (SFF-8087)
Designed for inside server chassis wiring. Compact size, no bulky external metal shell, saving internal chassis space and ensuring smooth heat dissipation. It is mainly used to connect RAID/HBA cards and server hard disk backplanes, supporting high-speed transmission of internal disk arrays. As the standard SFF-8087 Mini SAS cable, it is the preferred solution for compact server internal wiring layouts.
5.2 External SAS 3.0 Cable (SFF-8088)
Equipped with full metal shielding and locking latch structure, with excellent EMI resistance and anti-loosening performance. It is suitable for server external connection with JBOD storage enclosures, adapting to complex vibration and electromagnetic environments in data centers. The SFF-8088 external SAS cable locking structure effectively prevents loose connection caused by equipment vibration and long-term operation.
5.3 Extended Application Scenarios
- Enterprise server disk array internal wiring
- Data center JBOD/SAN storage expansion
- Industrial high-load storage equipment signal transmission
- Server RAID card high-speed data transmission
6. JD Cables SAS 3.0 Cable Manufacturing Capability
JD Cables provides high-performance, factory-direct SAS 3.0 12Gbps cable assemblies customized for enterprise server and data center storage systems. All wiring harnesses strictly follow SAS 3.0 industry standards to ensure stable 12Gbps PHY signaling rate, complete signal integrity and long-term operational reliability.
Our full-range SAS 3.0 product solutions cover mainstream storage deployment requirements:
- SFF-8087 internal Mini SAS cables for server backplane wiring
- SFF-8088 external Mini SAS cables for JBOD storage connection
- Mini SAS breakout cables for multi-disk array expansion
- Custom cable length, connector angle and harness specifications
- OEM / ODM customized server high-speed wiring solutions
With precise impedance control, multi-layer shielding structure and 100% pre-shipment electrical testing, JD Cables supports system integrators and equipment manufacturers to build stable, high-speed, and low-failure enterprise storage connectivity systems. Our production capability covers prototype samples, small-batch validation and large-scale OEM manufacturing, meeting diverse customization demands for enterprise storage projects.
7. Common Selection & Deployment Mistakes
Even with SAS 3.0 hardware, incorrect cable selection will still limit overall device performance:
- Mistake 1: Using SAS 2.0 or SATA cables for 12Gbps array devices, resulting in hardware performance downgrade
- Mistake 2: Using unshielded internal cables for external deployment, causing signal loss and intermittent disconnection
- Mistake 3: Excessively long internal cables leading to poor chassis heat dissipation and signal attenuation
- Mistake 4: Using non-standard cables that cannot sustain 12Gbps long-term high-load operation
8. FAQ About SAS 3.0 12Gbps Cable
Q1: Is SAS 3.0 12Gbps cable backward compatible with old SAS devices?
A: Yes. Genuine SAS 3.0 cables are generally backward compatible with SAS 2.0, SAS 1.0 and SATA devices when supported by the controller and system architecture, realizing one-cable multi-scene adaptation.
Q2: Can SAS 3.0 cable reach 12Gbps in actual use?
A: The 12Gbps refers to per-PHY raw signaling rate. The actual throughput is affected by hard disk read-write speed, RAID configuration and protocol overhead. However, qualified SAS 3.0 cables can fully release the maximum hardware performance of enterprise 12G storage devices without cable-level bottlenecks.
Q3: What is the difference between SAS 3.0 and Slim SAS cables?
A: Slim SAS (SFF-8654/SFF-8644) is an upgraded compact version of traditional SAS 3.0, with smaller size and higher density, suitable for new-generation high-density servers, while traditional SFF-8087/8088 SAS 3.0 cables are more widely used in legacy enterprise devices. You can check our Mini SAS vs Slimline SAS upgrade guide for detailed deployment and selection suggestions.
Q4: How to choose a reliable SAS 3.0 cable manufacturer?
A: A professional and reliable SAS 3.0 cable manufacturer must ensure precise impedance control, standardized multi-layer shielding design, complete signal integrity testing, flexible customization capabilities, and stable batch production quality. For enterprise storage projects, factory-certified high-speed SAS cable assemblies effectively avoid signal attenuation, bandwidth loss and intermittent connection failures during long-term high-load operation.
Conclusion
SAS 3.0 12Gbps cable is the standard enterprise-level storage transmission solution for current data centers and server arrays. Its 12Gbps per-lane signaling rate, full-duplex transmission, and strong anti-interference capability solve the bandwidth bottleneck and stability problems of traditional low-speed cables.
Standardized selection and deployment of qualified SAS 3.0 cables can maximize server array performance, reduce equipment failure rates, and ensure long-term stable operation of enterprise storage systems. As a professional SAS cable manufacturer, JD Cables provides standardized and customized SAS 3.0 wiring solutions for global enterprise storage projects.
