SFF-8087 or MCIO 8654? How to choose the right server cable?
In the deep heart of modern data centers and high-performance computing clusters, cables are often the underestimated "unsung heroes." When we turn our attention to the intricate signal highways inside servers, three key components define the pivotal transition from traditional parallel architectures to next-generation high-speed serial interconnects: SFF-8087 to 8087 with red mesh, MCIO SFF-8654 8I 5.0 74P PCIe, and Server Connection Cable. These three are not merely substitutes for one another, but rather a dynamic picture shaped by the ongoing balance between bandwidth, density, and signal integrity.

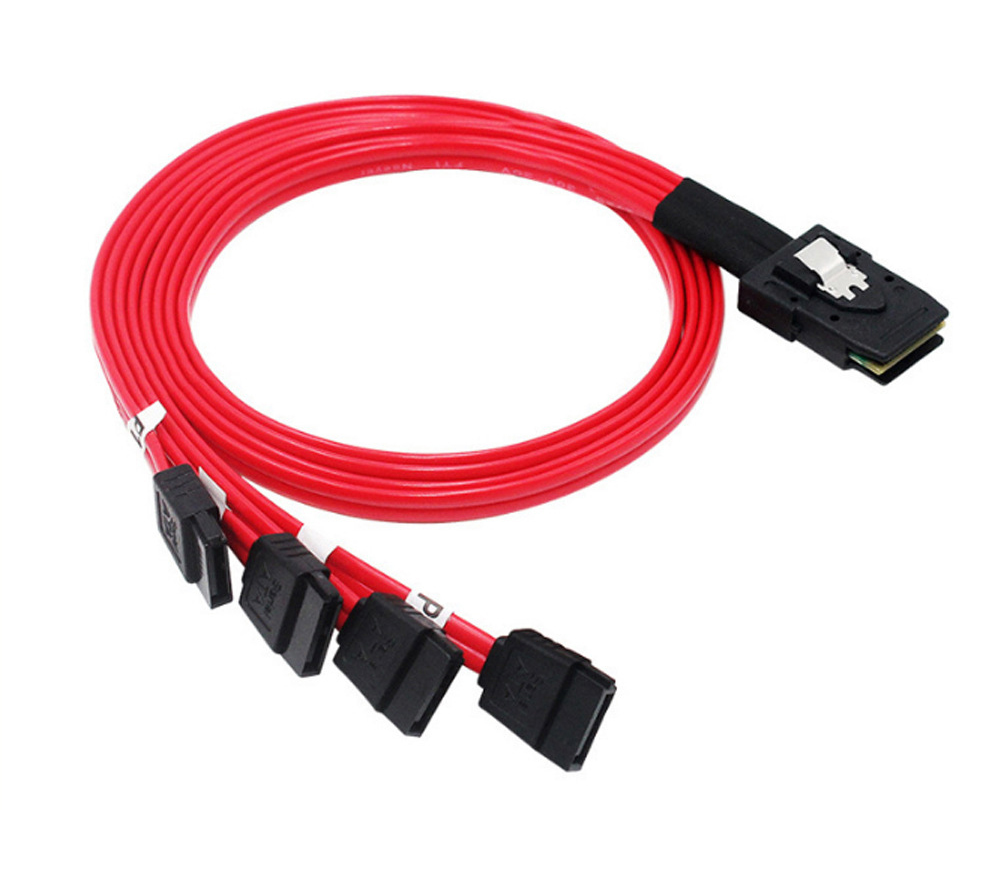

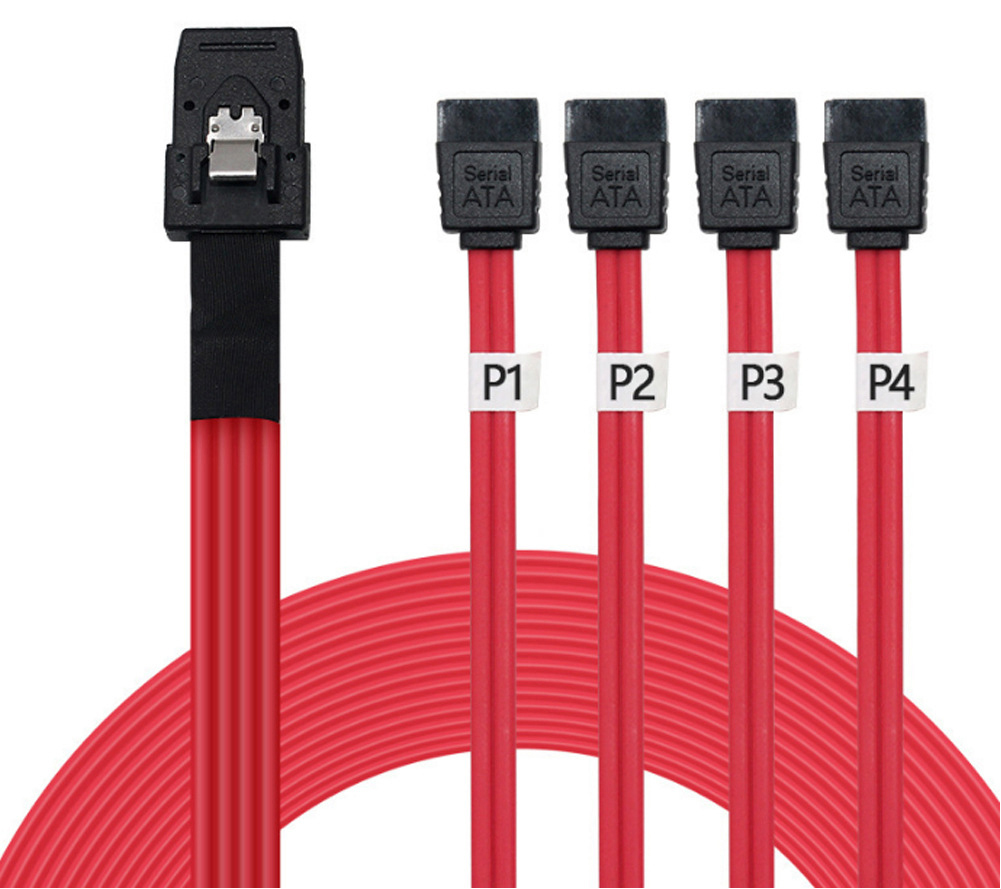

The Benchmark of the Classic Era: SFF-8087 Beneath the Red Mesh
During the era dominated by PCIe 3.0 and SAS 2.0/3.0 in server design, the SFF-8087 to 8087 with red mesh became nearly a standard visual signature within every storage server. The SFF-8087—precursor to Mini-SAS HD—served as an internal mini-SAS connector, delivering critical data pathways between RAID cards and backplanes through its compact 4-lane (4i) design.
Yet "with red mesh" is more than just aesthetic. This tightly woven red braided sleeving encasing the cable assembly plays multiple essential roles in engineering practice:
Physical Protection: Inside high-density chassis (such as 2U 24-drive or 4U 36-drive enclosures), cables must endure repeated bending and fan-induced vibrations. The red mesh sheath significantly enhances the cable's abrasion resistance and tensile strength, reducing the risk of terminal damage during installation.
EMI Suppression: The braided layer serves as a supporting skeleton for the metallic shielding mesh, effectively blocking electromagnetic interference from power backplanes and high-frequency clock signals within the chassis, ensuring sufficient eye diagram margin for four lanes of 12Gbps SAS signals when transmitted in parallel.
Operational Maintenance Identification: Amid chaotic internal cabling, the bright red color acts as a visual landmark for technicians to quickly identify "storage links," preventing confusion with network or management cables.
This classic Server Connection Cable has supported countless enterprise storage arrays in I/O throughput over nearly a decade, thanks to its stable and reliable physical-layer performance.
Bandwidth Anxiety and Interface Revolution: The Rise of MCIO SFF-8654
With the arrival of PCIe 4.0 and even 5.0, internal data throughput in servers is growing exponentially. The traditional SFF-8087’s 4-lane design is gradually becoming bandwidth-constrained, and its physical footprint no longer fits increasingly compact 1U half-width nodes or GPU-accelerated environments. Thus, the MCIO SFF-8654 8I 5.0 74P PCIe emerged as the new connectivity paradigm.
Breaking down this long technical name reveals a clear evolution path:
MCIO (Mini Cool Edge IO): This is a next-generation internal interconnect standard jointly promoted by SNIA (Storage Networking Industry Association) and PCI-SIG, aiming to unify physical-layer interfaces for PCIe, SAS, and SATA within servers.
SFF-8654 8I: Compared to the 4-lane SFF-8087, SFF-8654 8I doubles the number of channels to eight high-speed differential pairs (8I). This means a single cable can carry an x8 PCIe link, doubling bandwidth without significantly increasing board area.
The future divisions of server connection cables
From SFF-8087 to 8087 with red mesh to MCIO SFF-8654 8I 5.0 74P PCIe, what we see is not only a change in interface form, but also a transformation in the philosophy of server connection:
From "protection" to "performance": The red mesh focuses on the robustness and reliability of the physical world; while the MCIO cable shifts the design focus to high-frequency signal integrity - ultra-thin coaxial cables, foamed PE medium, precise impedance control have become the new "invisible armor".
From "universal" to "specific": SFF-8087 caters to both SAS and PCIe, being a universal storage cable; while the MCIO SFF-8654 8I 5.0 clearly points to a pure high-speed channel for PCIe 5.0/6.0, indicating that in the future, server internal data cables will be hierarchically divided based on rate levels.
From "visual identification" to "protocol identification": In the past, the red marking helped the human eye identify; in the MCIO era, the Sideband signals (sideband signals) of the cables will be intelligently negotiated the link protocol through pin definitions, achieving a higher level of system management.
