In enterprise server and data center storage deployment, SFF-8087 and SFF-8088 Mini SAS cables are the two most widely used legacy SAS connection solutions. However, most procurement personnel and junior engineers frequently select the wrong cables, resulting in unmatchable interfaces, unstable external signals, insufficient wiring space, and even server storage disconnection.
These two connectors support the same SAS 3.0 12Gbps transmission speed, but their application scenarios, mechanical structure, shielding performance, and environmental adaptability are completely different. They cannot be substituted for each other in most standard server deployment environments.
This article focuses on practical engineering selection and deployment experience. It clearly distinguishes SFF-8087 internal cables and SFF-8088 external cables, summarizes typical applicable scenarios and high-frequency procurement mistakes, and helps enterprise teams complete zero-error Mini SAS cable selection.
To build a stable and efficient storage hardware foundation, it is essential to follow standardized enterprise SAS cable architecture for server wiring and device expansion.

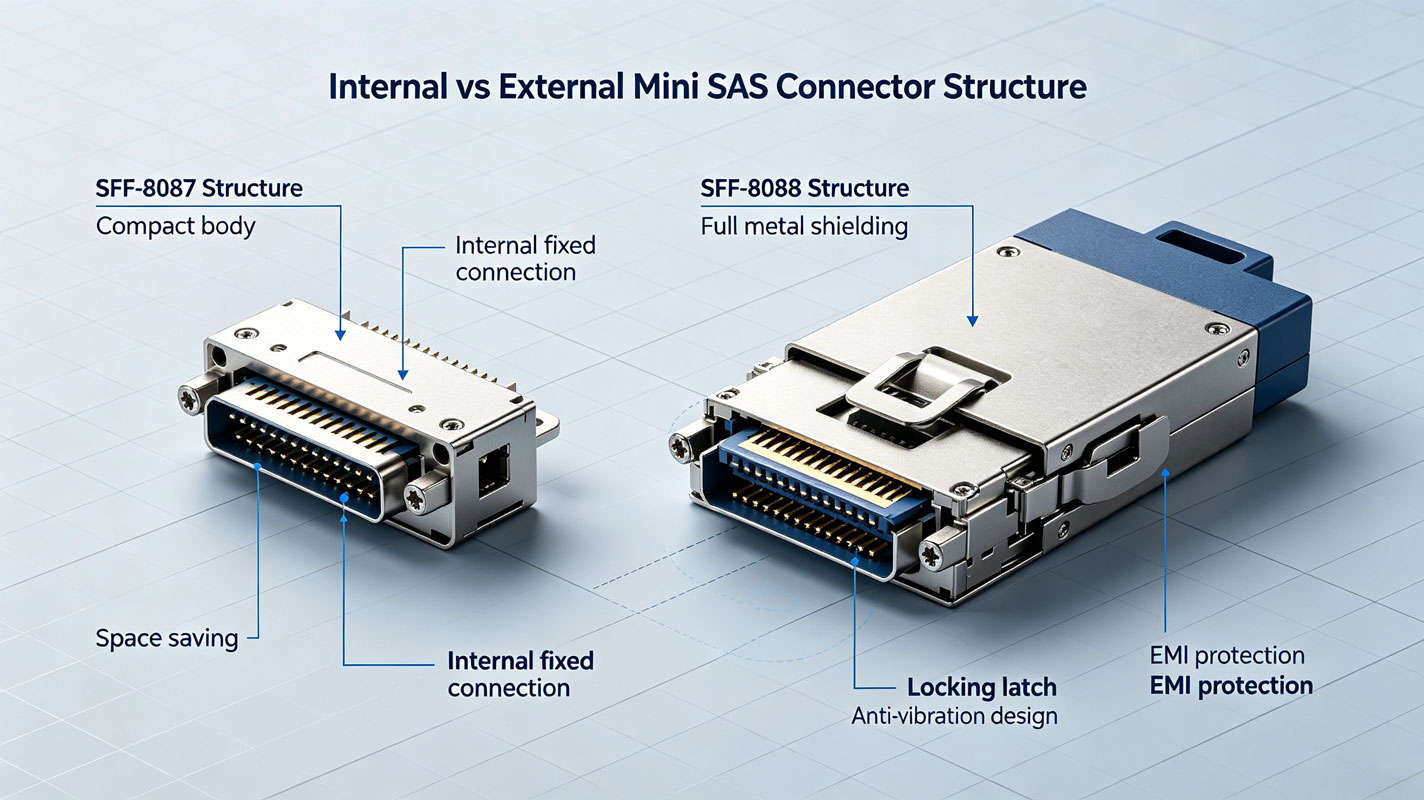

1. Core Definition & Structural Difference
The essential difference between SFF-8087 and SFF-8088 lies in internal chassis wiring vs external device connection, which determines their structural design and industrial application standards.
1.1 SFF-8087 (Internal Mini SAS 4i)
SFF-8087 is designed primarily for internal server chassis connections, featuring a compact form factor suitable for high-density internal wiring. It adopts a streamlined structure without bulky external metal shielding shells, saving valuable space inside 1U/2U rack servers.
Core characteristics:
- Compact body without external metal shielding shell
- Optimized exclusively for in-chassis fixed connection
- Mainly connects RAID/HBA card and internal hard disk backplane
- Supports SAS 3.0 12Gbps per lane, 48Gbps total bandwidth
1.2 SFF-8088 (External Mini SAS 4x)
SFF-8088 is an industrial-grade external connector built for stable external connection between servers and storage enclosures. It adopts a full metal shielding shell and professional anti-drop locking latch design, adapting to complex electromagnetic interference and minor vibration environments in data center equipment deployment.
Core characteristics:
- Integrated full metal shielding + anti-drop locking structure
- Excellent anti-vibration and anti-EMI interference performance
- Mainly used for server rear port connection with JBOD and external storage cabinets
- Consistent 12Gbps SAS3.0 high-speed transmission capability

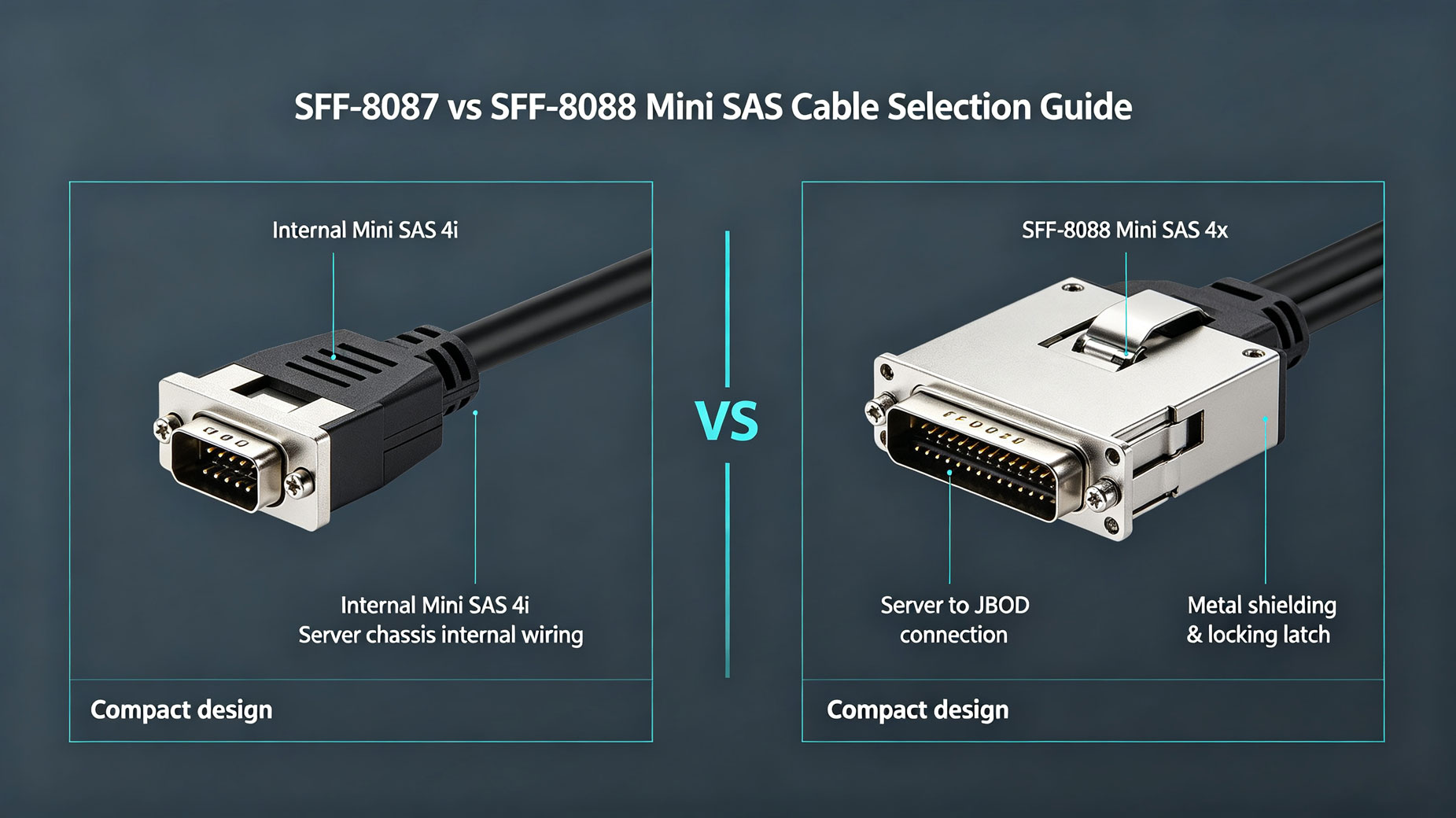

2. SFF-8087 vs SFF-8088: Full Comparison Table
The following comparison table helps engineers quickly confirm the matching cable type according to deployment location and environmental requirements:
|
Comparison Item
|
SFF-8087 (Internal 4i)
|
SFF-8088 (External 4x)
|
|
Usage Environment
|
Inside server chassis
|
External connection for storage devices
|
|
Shielding Structure
|
No external metal outer shell
|
Full metal anti-EMI shielding
|
|
Connection Stability
|
Standard stability for fixed internal wiring
|
Locking design, anti-drop & anti-vibration
|
|
Main Application
|
RAID card to internal backplane
|
Server to JBOD / storage expansion enclosure
|
|
Transmission Speed
|
SAS 3.0 12Gbps
|
SAS 3.0 12Gbps
|
|
Replaceable
|
Not suitable for external deployment
|
Bulky for narrow internal chassis wiring
|
3. Real Enterprise Deployment Scenarios (100% Practical)
The most reliable selection standard in engineering practice is: judge the cable type according to the actual wiring deployment scenario.
Scenario 1: Internal server hard disk array connection
When you need to connect the RAID/HBA controller on the server motherboard to the internal hard disk backplane, choose SFF-8087 to SFF-8087 internal cable. Its compact size will not block chassis airflow, ensuring stable heat dissipation and long-term internal system operation.
Scenario 2: Server needs external JBOD disk expansion
When the server needs to expand external storage capacity and connect to an independent JBOD disk cabinet or storage enclosure, choose SFF-8088 to SFF-8088 external cable. The professional locking structure effectively prevents cable loosening caused by equipment vibration, avoiding unexpected array disconnection issues.
Scenario 3: Internal RAID card needs to export external signal
If the RAID card is installed inside the chassis and needs to export SAS signals to external JBOD devices, a dedicated SFF-8087 to SFF-8088 conversion cable is required to realize stable internal and external signal conversion.
Scenario 4: Multi-SATA hard disk split connection
For multi-disk server arrays with insufficient SATA interface ports, Mini SAS breakout cable (8087/8088 to 4 SATA) can be adopted to realize one-to-multiple hard disk connection and expand storage port resources efficiently.
4. 4 Most Common Selection Mistakes in Data Centers
Incorrect cable selection is one of the common causes of storage connectivity issues during server deployment and equipment iteration. The following four mistakes occur frequently in enterprise storage projects and should be avoided in advance:
4.1 Using SFF-8087 cables for external wiring
Without complete metal shielding and professional locking structure, SFF-8087 cables face severe EMI interference and loose connection risks in open external equipment environments, easily leading to unstable signal transmission and occasional disk offline problems.
4.2 Confusing SFF-8088 with optical fiber cable
Many junior engineers mistakenly regard the SFF-8088 port as an optical fiber interface. In fact, it is a copper-based electrical transmission port that cannot match optical modules or fiber cables, and the two are completely incompatible.
4.3 Ignoring chassis space and selecting overlong cables
Standard-length cables easily cause wiring congestion and block chassis heat dissipation airflow in compact 1U ultra-thin servers. Customized ultra-short cables (0.15m/0.3m/0.5m) can effectively optimize internal wiring layout and maintain smooth heat dissipation.
4.4 Mismatched conversion cables leading to bandwidth loss
Non-standard conversion harnesses cannot support full SAS 3.0 high-speed bandwidth transmission, limiting the performance of enterprise-level hard disks and RAID/HBA controllers and resulting in unnecessary hardware performance loss.
5. Enterprise-Grade Procurement & Customization Suggestions
For data center construction and enterprise server batch procurement, cable scenario adaptability and long-term operational stability are far more important than unit price advantages.
- Core selection principle: internal fixed chassis wiring adopts SFF-8087, external storage device connection adopts SFF-8088
- Open equipment deployment environments must adopt locked external cables to avoid vibration-induced disconnection
- High-speed storage operation scenarios prioritize double-layer shielded cables to guarantee complete signal integrity
- Support non-standard length, special-angle connector and personalized customization for special chassis and customized deployment environments
6. Mini SAS Upgrade Trend: New Slimline SAS
SFF-8087 and SFF-8088 are mature and reliable traditional Mini SAS connection solutions widely used in existing enterprise storage devices. Newer interfaces such as Slim SAS Cable (SFF-8654 internal & SFF-8644 external) are increasingly adopted in high-density server platforms that require higher bandwidth and smaller form factors.
It is worth noting that new-generation Slimline SAS interfaces and traditional Mini SAS interfaces are physically incompatible. Enterprises need to reconfirm cable specifications during server hardware upgrades and device iterations to avoid compatibility failures.
FAQ – Professional Mini SAS Cable Selection Q&A
Q1: Are SFF-8087 and SFF-8088 cables interchangeable?
A: Not directly interchangeable. SFF-8087 is optimized for internal chassis fixed wiring, while SFF-8088 is designed for external anti-interference deployment. Cross-scenario use will cause unstable signals and poor connection reliability. Professional conversion cables are required for internal and external signal interconnection.
Q2: Do I need locked SAS cables for server internal wiring?
A: Generally not required. Locked structures will occupy limited internal chassis space. Lock-free SFF-8087 cables are more suitable for compact internal wiring, while locked SFF-8088 cables are essential for external storage device deployment.
Q3: Can Mini SAS cables support SAS 2.0 devices?
A: Yes. SAS3.0 12Gbps Mini SAS cables are fully backward compatible with SAS2.0 6Gbps and SATA III devices, delivering strong cross-version hardware compatibility for old and new server equipment.
Conclusion
SFF-8087 and SFF-8088 Mini SAS cables are indispensable basic accessories for traditional enterprise server storage systems. The core engineering selection logic is clear and unified: internal chassis wiring adopts SFF-8087, while external storage expansion deployment adopts SFF-8088.
Proper cable selection can significantly reduce compatibility issues and improve storage system reliability. For standard and customized enterprise-grade SAS Cable solutions and professional deployment guidance, welcome to browse our product catalog or contact our technical team for tailored project support.
