When upgrading or assembling enterprise rack servers, hardware engineers and procurement teams frequently confuse two similar-looking internal SAS connectors: SFF-8643 Mini SAS HD and SFF-8654 Slimline SAS. Choosing the wrong cable will lead to physical mismatch, failed storage connection and costly project delays.
Our previous full pillar guide covers all specifications of Slimline SAS cable system, including SFF-8654 and SFF-8644 standards. This selection guide focuses on the critical distinction between SFF-8643 and SFF-8654, helping you pick the correct internal cable for SAS 3.0 legacy hardware or new SAS 4.0 high-density servers.
1. What Is SFF-8643 Mini SAS HD Cable?
SFF-8643 is the transitional Mini SAS HD internal connector designed exclusively for SAS 3.0 12 Gbps infrastructure, sitting between traditional SFF-8087 Mini SAS and modern Slimline SAS hardware.
- Core hardware match: Mid-generation RAID/HBA cards, SAS 3.0 server backplanes, legacy all-flash storage nodes
- Bandwidth limit: Fixed 12 Gbps per lane, no native SAS 4.0 24 Gbps support
- Mechanical feature: Medium-sized housing, larger pin pitch than SFF-8654
- Common scenario: Server maintenance, replacement of original SAS3 storage wiring
2. What Is SFF-8654 Slimline SAS Cable?
SFF-8654 is the next-gen high-density internal Slimline SAS connector built for dual SAS 3.0 and SAS 4.0 transmission. It is the mainstream standard for newly manufactured 1U/2U rack servers.
- Core hardware match: New HBA/RAID controllers with SAS4 support, compact high-density server backplanes, AI & HPC storage clusters
- Bandwidth capability: Supports both 12 Gbps SAS3 and 24 Gbps SAS4 per lane
- Mechanical feature: Ultra-slim compact body, optimized chassis airflow and PCB space utilization
- Common scenario: New data center construction, SAS 4.0 hardware full upgrades

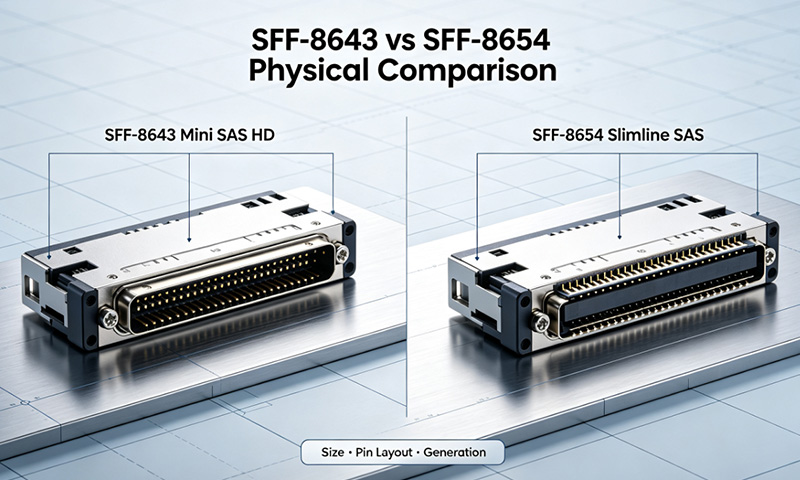

3. Full Comparison Table: SFF-8643 VS SFF-8654
| Evaluation Item | SFF-8643 (Mini SAS HD) | SFF-8654 (Slimline SAS) |
|---|---|---|
| Standard Generation | Transitional SAS 3-only interface | Next-gen dual SAS3/SAS4 standard |
| Max Single Lane Speed | 12 Gbps (SAS 3.0 ceiling) | Up to 24 Gbps (SAS 4.0 native) |
| Connector Size | Medium footprint | Significantly smaller slim housing |
| Chassis Thermal Performance | Average airflow | Excellent heat dissipation design |
| Supported Lane Layout | Only 4i single channel | 4i / 8i dual optional channels |
| Main Application | Legacy SAS 3 server maintenance | New SAS4 high-density server builds |
| Physical Interchangeable | Cannot plug into SFF-8654 ports | Cannot plug into SFF-8643 ports |
4. Key Compatibility Rules to Avoid Selection Mistakes
- Zero mechanical compatibility: SFF-8643 and SFF-8654 cables cannot be interchanged. Their pin layout and shell dimensions are completely different.
- SAS 4.0 hardware only supports SFF-8654 cables; SFF-8643 cannot reach 24 Gbps bandwidth even with adapters.
- Passive conversion adapters between the two connectors bring severe signal attenuation, which is not recommended for production data center environments. Direct matching cable purchase is the reliable solution.
- If your existing server only runs SAS 3.0 hardware, SFF-8643 cables remain cost-effective replacement options.
5. How to Choose Between SFF-8643 and SFF-8654 Cables
Choose SFF-8643 Mini SAS HD Cable If:
- You maintain old servers equipped with SAS 3.0 RAID cards and SFF-8643 backplane ports
- Only 12 Gbps storage bandwidth is required for your business
- You need low-cost replacement wiring for legacy storage arrays
Choose SFF-8654 Slimline SAS Cable If:
- You deploy brand-new 1U/2U high-density servers or AI/HPC computing clusters
- Your hardware stack supports SAS 4.0 24 Gbps high-speed transmission
- Long-term hardware upgrade scalability is required for future data center expansion
- Chassis internal space and thermal optimization are core priorities
6. Jingda Custom SAS Cable Solutions for SFF-8643 & SFF-8654
Jingda Electronic Technology Co., Ltd. (trading as JD Cables) manufactures full-series certified internal SAS cables to match SFF-8643 and SFF-8654 connector standards for global system integrators and OEM server brands.
Available Cable Products
| Cable Type | Customizable Options | Industrial Application |
|---|---|---|
| SFF-8643 4i Internal Cable | Straight / right-angle plugs, 0.3m–2m lengths, single/double shielding | Legacy SAS3 server replacement |
| SFF-8654 4i / 8i Cable | Low-profile elbow, multi-layer shielding, custom harness shaping | New SAS4 high-density storage servers |
| SFF-8654 to SFF-8643 Breakout Cable | Custom wire gauge, OEM marking | Cross-generation server hardware migration |
Factory Quality Guarantee
All internal SAS cables complete 100% electrical signal testing before shipment, with strict TDR signal integrity inspection. Our factory holds ISO9001, CE, FCC and RoHS global compliance certifications, supporting prototype sampling and mass customized orders.
Technical Inquiry Contact:
Email: sales2@jd-cables.com | Tel: +86 13538408353
7. Frequently Asked Questions
Q1: Can I use an adapter to convert SFF-8643 port to SFF-8654 cable?
A: Mechanical passive adapters exist on the market, but they will cause obvious signal loss under high-speed transmission. We do not suggest adapters for formal data center operation to prevent intermittent connection faults.
Q2: Can SFF-8654 cables work on SFF-8643 SAS 3.0 servers?
A: No. The two connectors have different physical structures and cannot be inserted into each other. You need to select cables matching the exact port model of your backplane or RAID card.
Q3: What hardware determines whether I need SFF-8643 or SFF-8654?
A: The port model on your server’s RAID/HBA controller and storage backplane is the only decisive factor. Confirm the printed SFF model number on hardware before ordering cables.
Q4: What’s the difference between Mini SAS, Mini SAS HD and Slimline SAS?
A: Traditional SFF-8087 is standard Mini SAS; SFF-8643 is Mini SAS HD transitional type limited to SAS3; SFF-8654 is modern Slimline SAS for SAS3 & SAS4. Check our early guide: Mini SAS vs Slimline SAS: Server Storage Cable Upgrade Guide.
Conclusion
SFF-8643 Mini SAS HD and SFF-8654 Slimline SAS target completely different server hardware generations. Mastering their bandwidth limits, physical differences and applicable scenarios can help you avoid wrong cable procurement and storage system breakdown.
For legacy SAS3 server maintenance projects, SFF-8643 cables are the economical choice; for new SAS4 high-density data center construction, SFF-8654 Slimline SAS cables deliver long-term scalability and thermal advantages. Jingda provides matching certified cable assemblies and customized wiring solutions for both connector standards.
