What's the difference between the MINI SAS 8087 CABLE and the right-angle adapter cable？
In server storage and data center cabling, the MINI SAS 8087 TO SATA 7P right angle female cable is a very common and crucial connection solution. Many engineers frequently encounter the MINI SAS 8087 TO SATA 7P right angle female cable in actual projects because it can efficiently connect SAS controllers to SATA hard drives. To meet the compact space requirements of different chassis, the right-angle female connector design of the MINI SAS 8087 TO SATA 7P right angle female cable significantly reduces the bending radius. This article will not only focus on the MINI SAS 8087 TO SATA 7P right angle female cable but also make a lateral comparison with the MINI SAS 8087 CABLE and the MINI SAS 36P to SATA 7P right angle female cable to help readers make the right choice in actual selection.
I. Technical Features of the MINI SAS 8087 TO SATA 7P right angle female cable

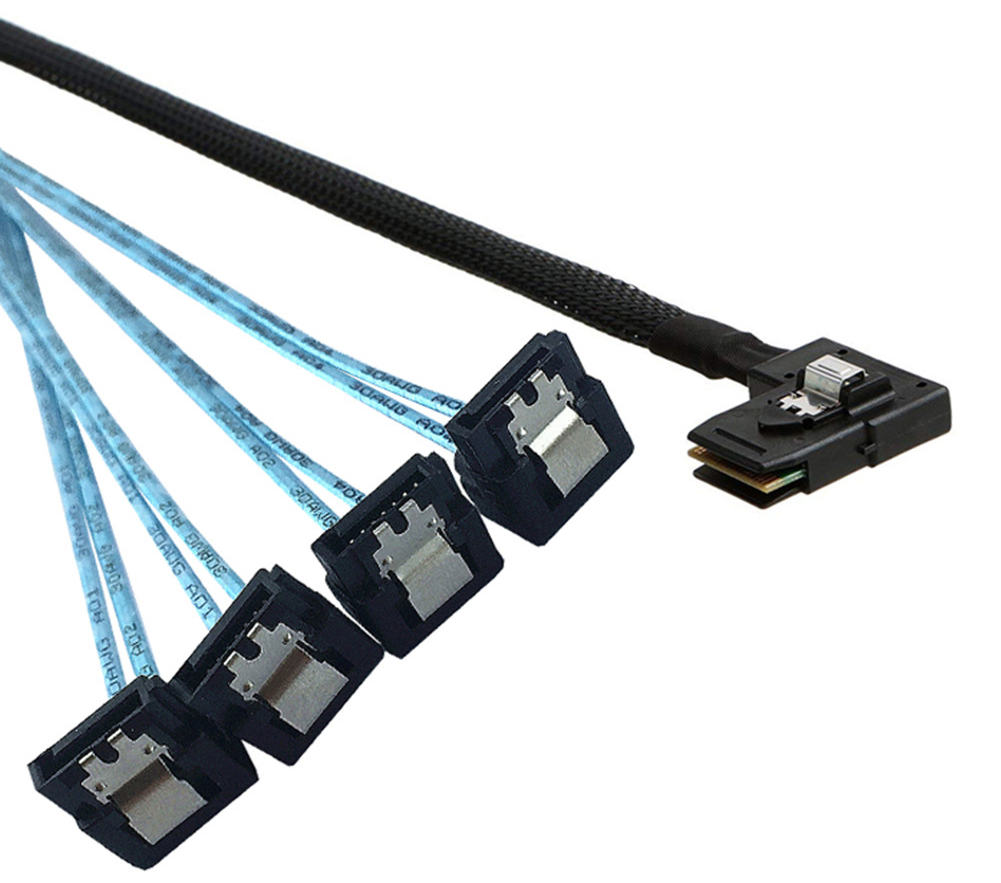

The MINI SAS 8087 TO SATA 7P right angle female cable typically contains four independent channels, with each channel capable of reaching a rate of 6Gbps or even 12Gbps. When the internal space of the server is limited, the right-angle female connector design of the MINI SAS 8087 TO SATA 7P right angle female cable can directly fit the hard drive backplane, avoiding excessive bending of the cable that could cause signal attenuation. In actual tests, a high-quality MINI SAS 8087 TO SATA 7P right angle female cable can stably transmit data over a distance of more than 1 meter. Additionally, the MINI SAS 8087 TO SATA 7P right angle female cable supports hot plugging and SGPIO sideband signals, facilitating the monitoring of hard drive status. When purchasing, it is important to pay attention to the wire gauge (such as 30AWG or 28AWG) of the MINI SAS 8087 TO SATA 7P right angle female cable; a thicker conductor can reduce voltage drop. Due to these advantages, the MINI SAS 8087 TO SATA 7P right angle female cable has become one of the preferred choices for expanding storage in rack servers.
II. General Forms of the MINI SAS 8087 CABLE

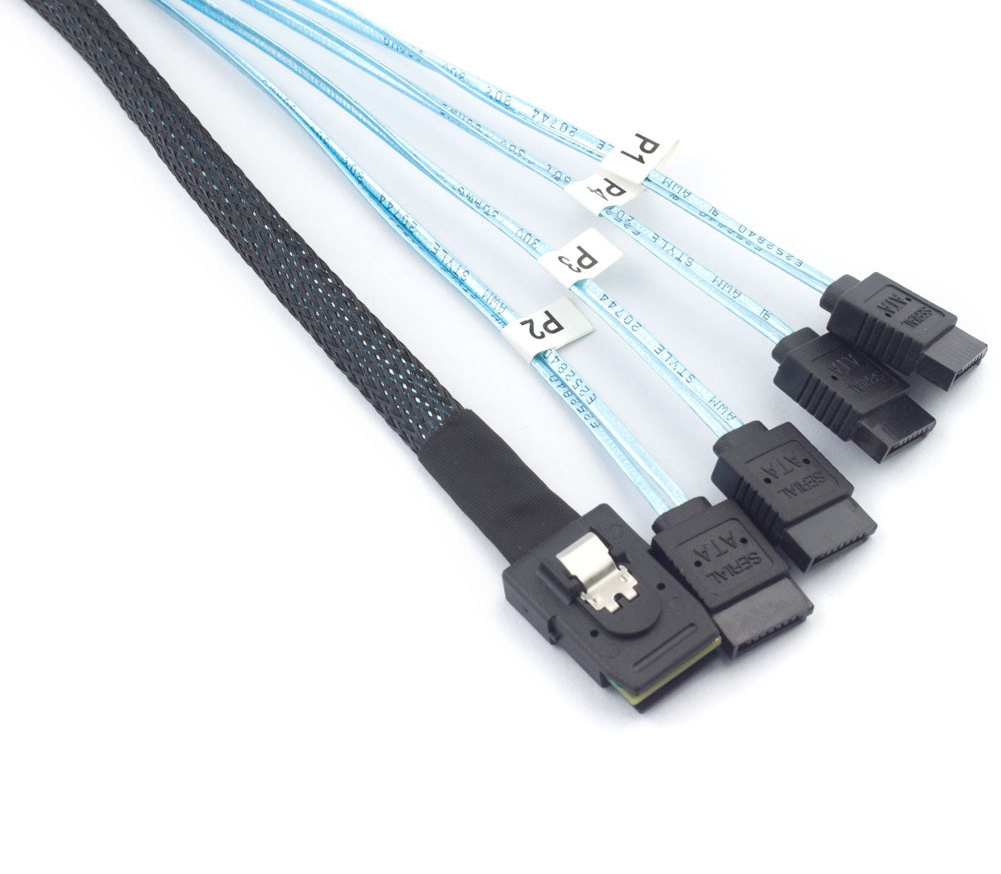

Compared to the above-mentioned dedicated cables, the MINI SAS 8087 CABLE is a broader category. It can be a one-to-four straight connector, a one-to-four right-angle connector, or an internal backplane cable for 8087 to 8087. The MINI SAS 8087 CABLE usually adopts a 36-pin (actual effective pins) plastic or metal interface, commonly used between RAID cards and hard drive backplanes. Many brand servers come with original MINI SAS 8087 CABLEs, and their shielding layers and twisting processes directly affect the suppression of crosstalk. It is worth noting that the MINI SAS 8087 CABLE is not necessarily for converting to SATA; it could also be for converting to SAS or directly connecting to an expander. Therefore, when users need a right-angle female SATA interface, simply purchasing a regular MINI SAS 8087 CABLE may not meet their requirements. Thus, when the specific demand is for a "right-angle SATA 7-pin female", it is necessary to choose the derived model of the MINI SAS 8087 CABLE with this terminal. In other words, MINI SAS 8087 CABLE is a general term, while the version with a right-angle SATA is a specific instance.
III. Details of the Differences of MINI SAS 36P to SATA 7p Right Angle Female Cable
The third keyword, MINI SAS 36P to SATA 7p right angle female cable, is almost the same in physical size as 8087 because "36P" refers to 36 pins, which actually corresponds to the SFF-8087 standard. Therefore, MINI SAS 36P to SATA 7p right angle female cable and the product referred to by the first keyword are often the same type of cable. However, in a few cases, MINI SAS 36P to SATA 7p right angle female cable may particularly emphasize the full definition of 36 pins, including ground and reserved pins. When purchasing, if you see the description of MINI SAS 36P to SATA 7p right angle female cable, you should verify whether its pin allocation complies with the SFF-8087 specification. For this reason, many suppliers use these two names interchangeably on labels, but the actual delivered MINI SAS 36P to SATA 7p right angle female cable and MINI SAS 8087 TO SATA 7P right angle female cable are the same material. To ensure compatibility, it is recommended that users request the detailed specification sheet of MINI SAS 36P to SATA 7p right angle female cable from the manufacturer and focus on checking the insertion force and retention force of the right-angle female connector.
IV. Application Scenarios and Selection Suggestions
When building a DIY storage server, MINI SAS 8087 TO SATA 7P right angle female cable can significantly improve the internal airflow organization of the chassis. For example, in a 2U chassis, if straight SATA cables are used, the side cover often cannot be closed, while the right-angle connector of MINI SAS 8087 TO SATA 7P right angle female cable can keep the cable bundle close to the side wall of the hard drive. Similarly, using the straight version of MINI SAS 8087 CABLE may cause cable damage, so the right-angle design is more popular. For hot-swappable backplanes, MINI SAS 36P to SATA 7p right angle female cable can be combined with metal clips to increase the lifespan of insertion and removal. It is recommended to choose the shielded version of MINI SAS 8087 CABLE for long-distance transmission (>0.8 meters), while the ordinary MINI SAS 8087 TO SATA 7P right angle female cable is sufficient for short distances within the chassis.
V. Common Issues and Troubleshooting
If the hard drive is not recognized, first check whether both ends of the MINI SAS 8087 TO SATA 7P right angle female cable are fully inserted, especially the right-angle end may not be locked due to chassis interference. Secondly, use a multimeter to measure whether each differential pair of the MINI SAS 8087 CABLE is conductive. For the cables marked as "MINI SAS 36P to SATA 7p right angle female cable", confirm whether the 11th pin on the SATA end (used to indicate the device type) is correctly connected. When deploying in bulk, it is recommended to uniformly purchase the same brand of "MINI SAS 8087 TO SATA 7P right angle female cable" to avoid the mixed use of MINI SAS 8087 cables with different impedances. Finally, each "MINI SAS 36P to SATA 7p right angle female cable" should undergo a simple high-speed signal test to ensure that the bit error rate is lower than 10^-12.
VI. Summary
To sum up, the MINI SAS 8087 TO SATA 7P right-angle female cable offers a reliable storage connection solution within a compact chassis with its compact right-angle female connector design. The broader category of MINI SAS 8087 CABLE encompasses various derivative models, and users need to precisely select based on the interface shape, orientation, and pin count. As for the MINI SAS 36P to SATA 7p right-angle female cable, it is essentially the same as the first type of cable, but the name emphasizes the 36-pin definition. Regardless of which description you ultimately choose, just remember the core parameters: 8087 interface, SATA 7-pin right-angle female connector, supporting SAS/SATA protocols, and you can ensure that the wiring work is twice as effective with half the effort. We hope this article is helpful to you when choosing the MINI SAS 8087 TO SATA 7P right-angle female cable and other types of cables.
