Industrial Camera Cable Assembly with JAE & Molex Connectors 1000mm
Applications:
Twisted-pair Molex terminal wires refer to a wiring harness structure in which two or more conductors are twisted together at a specific pitch and crimped with Molex series connectors. These are commonly used in high-speed signal transmission, power connections, industrial control, automotive electronics, and server equipment. Molex's high-speed harness solutions also emphasize enhancing signal integrity through differential structures and low-loss design.
- Detail:
The cables are made of special materials and through professional production processes, ensuring stable transmission and long-lasting durability.
Product Detail Specifications
Cable Length 0.3M /0.5M
Color Black or others
Connector Style Straight
Product Weight
Wire Gauge 28~32 AWG
Wire Diameter
Packaging InformationPackage
Quantity 1Shipping (Package)
Weight
Maximum Digital Resolutions
Product Detail Specifications
Connector(s)
Connector A JAE MX19004S51
Connector B Molex 347910040
Industrial Camera Cable Assembly with JAE & Molex Connectors
Gold Plated
Color Black or White
Specifications
|
Item |
Specification |
|
Product Type |
Industrial Camera Cable Assembly |
|

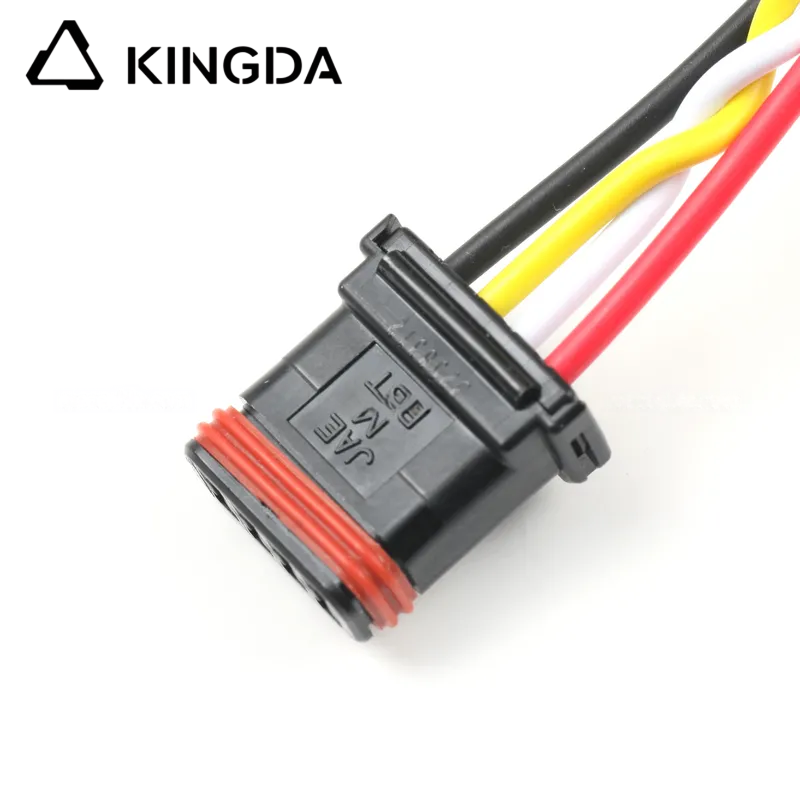

Connector P1 (Camera Side) |
JAE MX19004S51 |
|
Crimp Terminal (P1) |
JAE MX19S10K451 |
|

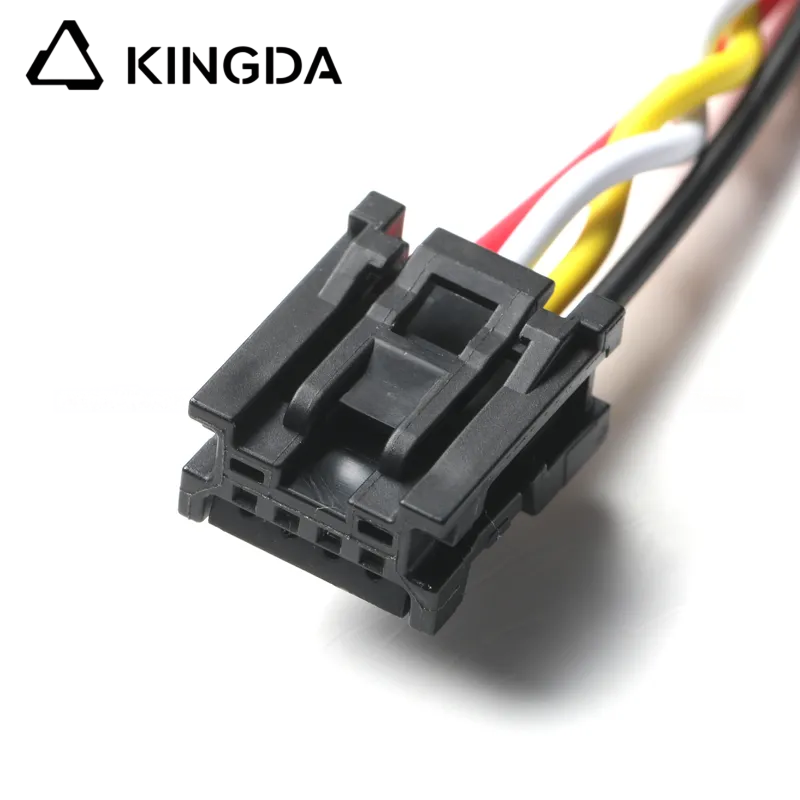

Connector P2 (Receiver Side) |
Molex 347910040 |
|
Crimp Terminal (P2) |
Molex 5600230750 |
|
Number of Positions |
4 Pins |
|
Cable Length |
1000 ±100 mm |
|
Signal Structure |
Twisted pair (4 twists/inch) |
|
Signal Type |
Power + Differential Data |
|
Wire Colors |
Red / White / Yellow / Black |
|
Manufacturing Standard |
IPC/WHMA-A-620 |
|
Compliance |
RoHS |
|
Customization |
Length, pinout, connector optional |
Major connector manufacturers
Connector is a bridge built between the blocked or isolated circuits within a circuit, enabling the flow of current and allowing the circuit to achieve its predetermined functions.
The major connector manufacturers worldwide are as follows. They lead the global development of connection technologies in various application domains.
1. TE Connectivity
TE Connectivity is the world’s largest connector supplier. TE positions itself as “supporting the Internet of Things” with the most basic parts such as connectors and sensors, and has launched various modular solutions. The solutions provided help in the fields of electric vehicles, aerospace, digital factories, and smart homes.
2. Molex Corporation
Molex is a global leading supplier of connection systems. Starting from terminals and plastic casings, it is currently the most sold product in China is terminals and plastic casings. Molex can be regarded as the world’s leader in consumer electronics connectors.
3. Amphenol Corporation
Amphenol is one of the largest connector manufacturers globally. It is very famous in the military, aerospace, aviation, and communication fields.
4. Samtec Group
Samtec is one of the largest connector manufacturers globally. Its most famous product is board-to-board products (jacks, motherboards, etc.).
5. JAE (Japan Aviation Electronics)
JAE is one of the top ten connector manufacturers worldwide. It mainly produces computer peripherals, automotive connectors, and communication connectors.
6. Yazaki Corporation
Yazaki is a Fortune 500 company, mainly producing automotive wiring components, various instruments, and equipment. The automotive wiring components account for 30% of the world market, ranking first in the same industry globally.
7. JST (Japanese Press Terminal)
JST has established the largest connector factory in the world in Malaysia. Its main production lines include line-to-line terminals, HSG (plastic casings), and line-to-board terminals, WAFER, etc.
8. KET (Korean Terminal Industry Corporation)
KET is one of the largest connector manufacturers in South Korea. Its most famous products are board-to-board products (jacks, motherboards, etc.).
9. Hirose
Hirose is a world-leading precision connector manufacturer. Its products are widely used in mobile phones, radio communications, measuring equipment, GPS, wireless transmission, Bluetooth devices, and other industries.
10. weidmueller
The Weidmueller Group is an international leading solution provider for power, signal, and data processing working conditions in the electrical connection, transmission fields, and industrial environments. Its product range includes connectors, PC board connectors, protective shell products, industrial Ethernet, basic I/O interfaces, and a full range of tool products.
11. Yeonho Electronics
Yeonho Electronics mainly includes connectors such as terminals, HOUSING, and WAFER. It mainly provides support services for major Korean and Chinese enterprises.
