20-Pin to 24-Pin IDC Ribbon Cable – UL2651 28AWG Flat Flex Cable Assembly
Applications:
This 20-pin to 24-pin ribbon cable assembly delivers reliable signal transmission for server
front-panel LEDs and switches. Precision IDC-terminated connectors ensure consistent
connectivity without soldering, ideal for high-volume applications.
- Detail:
The cables are made of special materials and through professional production processes, ensuring stable transmission and long-lasting durability.
Product Detail Specifications
Cable Length 0.3M /1M
Color Black
Connector Style Straight/Right angle
Product Weight
Wire Gauge 26~28 AWG
Wire Diameter
Packaging InformationPackage
Quantity 1Shipping (Package)
Weight
Maximum Digital Resolutions
Product Detail Specifications
Connector(s)

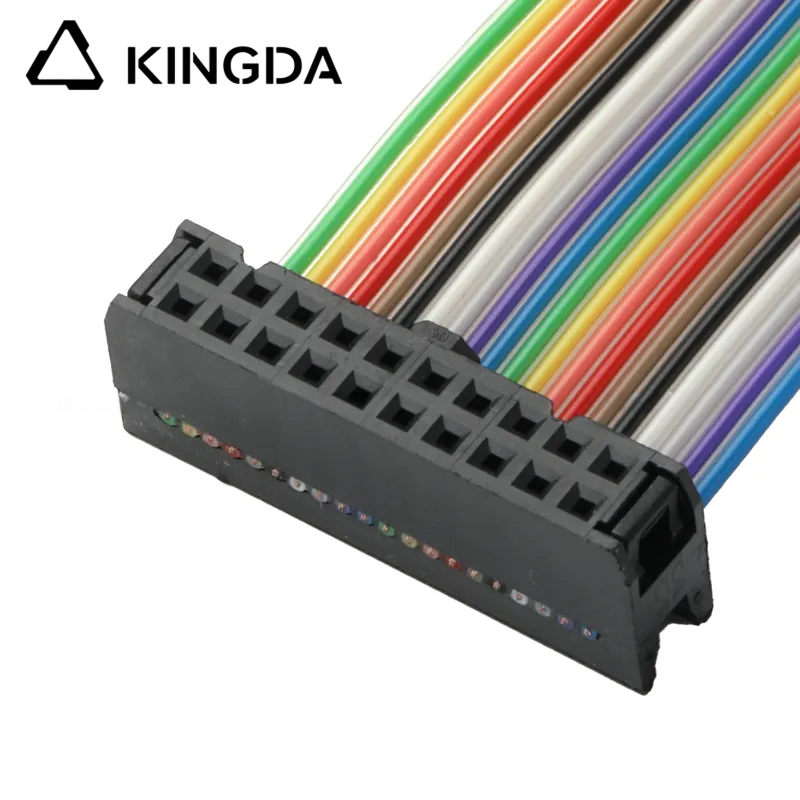

Connector A 20-Pin IDC Header

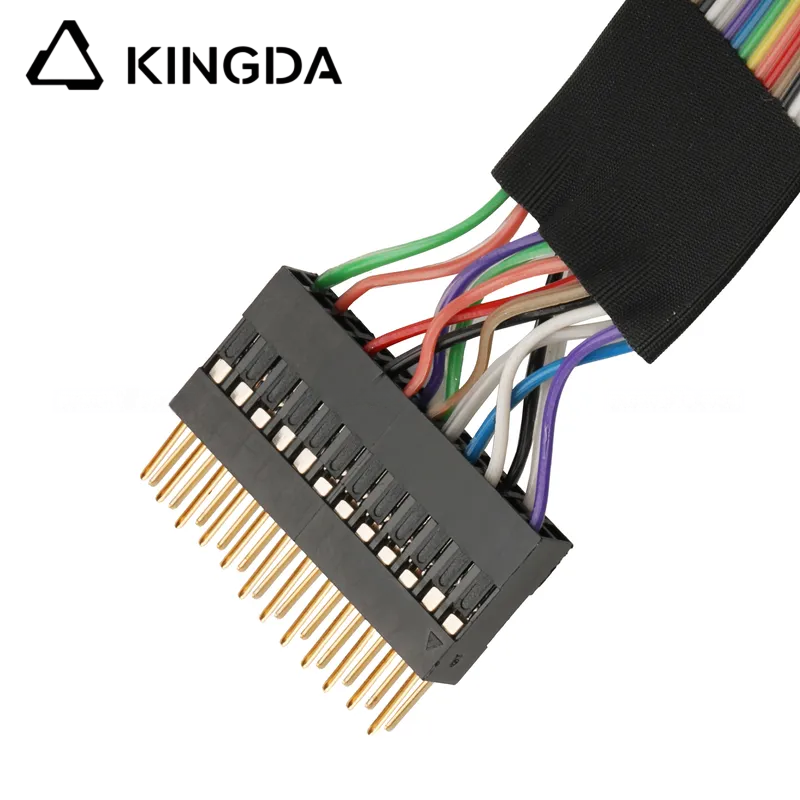

Connector B 24-Pin Dual Row Header (2.54mm Pitch)
20-Pin to 24-Pin IDC Ribbon Cable - UL2651 28AWG
Flat Flex Cable Assembly
Gold Plated
Color Black or White
Specifications
|
Parameter |
Specification |
|
Connector A |
20-Pin IDC Header (2.54mm Pitch, Center Polarized) |
|
Connector B |
24-Pin Dual Row Header (2.54mm Pitch) |
|
Cable Type |
20-Conductor Flat Ribbon Cable (UL2651 Recognized) |
|
Wire Gauge |
28AWG Stranded Tinned Copper |
|
Voltage Rating |
300V AC/DC |
|
Contact Type |
Insulation Displacement (IDC) Termination |
|
Operating Temp |
-20°C to +80°C |
|
Testing |
100% Continuity/Short/Open Test |
|
Compliance |
RoHS 3, UL Recognized |
Major connector manufacturers
Connector is a bridge built between the blocked or isolated circuits within a circuit, enabling the flow of current and allowing the circuit to achieve its predetermined functions.
The major connector manufacturers worldwide are as follows. They lead the global development of connection technologies in various application domains.
1. TE Connectivity
TE Connectivity is the world’s largest connector supplier. TE positions itself as “supporting the Internet of Things” with the most basic parts such as connectors and sensors, and has launched various modular solutions. The solutions provided help in the fields of electric vehicles, aerospace, digital factories, and smart homes.
2. Molex Corporation
Molex is a global leading supplier of connection systems. Starting from terminals and plastic casings, it is currently the most sold product in China is terminals and plastic casings. Molex can be regarded as the world’s leader in consumer electronics connectors.
3. Amphenol Corporation
Amphenol is one of the largest connector manufacturers globally. It is very famous in the military, aerospace, aviation, and communication fields.
4. Samtec Group
Samtec is one of the largest connector manufacturers globally. Its most famous product is board-to-board products (jacks, motherboards, etc.).
5. JAE (Japan Aviation Electronics)
JAE is one of the top ten connector manufacturers worldwide. It mainly produces computer peripherals, automotive connectors, and communication connectors.
6. Yazaki Corporation
Yazaki is a Fortune 500 company, mainly producing automotive wiring components, various instruments, and equipment. The automotive wiring components account for 30% of the world market, ranking first in the same industry globally.
7. JST (Japanese Press Terminal)
JST has established the largest connector factory in the world in Malaysia. Its main production lines include line-to-line terminals, HSG (plastic casings), and line-to-board terminals, WAFER, etc.
8. KET (Korean Terminal Industry Corporation)
KET is one of the largest connector manufacturers in South Korea. Its most famous products are board-to-board products (jacks, motherboards, etc.).
9. Hirose
Hirose is a world-leading precision connector manufacturer. Its products are widely used in mobile phones, radio communications, measuring equipment, GPS, wireless transmission, Bluetooth devices, and other industries.
10. weidmueller
The Weidmueller Group is an international leading solution provider for power, signal, and data processing working conditions in the electrical connection, transmission fields, and industrial environments. Its product range includes connectors, PC board connectors, protective shell products, industrial Ethernet, basic I/O interfaces, and a full range of tool products.
11. Yeonho Electronics
Yeonho Electronics mainly includes connectors such as terminals, HOUSING, and WAFER. It mainly provides support services for major Korean and Chinese enterprises.
