Micro Coaxial Cable Edp Flex Cable 0.4mm pitch 20728 20777 3298 3300 20729

Why Choose Micro Coaxial Cable?

Ultra-Fine Cable for High-Speed, High-Density Signal Transmission

Micro Coaxial Cable (Micro Coaxial Cable) is a precise signal transmission wire specifically designed for miniaturization, high-speed operation and high-density electronic devices. Through the coaxial structure, it achieves stable impedance control and excellent shielding performance, effectively reducing EMI, crosstalk and signal loss, and meeting the requirements of modern electronic devices for high-speed and high-reliability signal transmission.

With its features such as ultra-thin outer diameter, good flexibility, small space occupation and excellent high-frequency transmission performance, Micro Coaxial Cable is widely used in laptops, tablets, monitors, cameras, medical equipment, automotive electronics, industrial equipment and other high-density electronic products.

Product Structure

The typical Micro Coaxial Cable is mainly composed of the following components:

Center Conductor → Insulation → Shield → Outer Jacket

• Center Conductor: Utilizes conductors with high electrical conductivity. The choice of coated copper (tin-plated or silver-plated), or other high-performance conductors can be made according to application requirements.

• Insulation: Provides stable electrical insulation performance and helps control the characteristic impedance of the wire material.

• Shield: Uses woven, wound, or other shielding structures to effectively reduce external electromagnetic interference and signal crosstalk.

• Outer Jacket: Offers mechanical protection, wear resistance, and environmental protection. Different materials and structures can be selected based on the internal space of the equipment.

Key Advantages

1. Ultra-Fine Diameter

The Micro Coaxial Cable has an extremely small outer diameter, which can effectively save the internal space of the equipment. It is particularly suitable for lightweight, miniaturized and high-density electronic devices.

2. High-Speed Signal Transmission

The coaxial structure has excellent high-frequency electrical performance, which can meet the requirements for high-speed digital signal and high-frequency signal transmission, and is suitable for applications such as eDP, LVDS, MIPI, Camera, and RF.

3. Excellent EMI Shielding

The shielding layer can effectively reduce electromagnetic interference and radio frequency interference, while minimizing crosstalk between different signal channels and improving the signal integrity of the system.

4. Stable Impedance Control

By precisely controlling the structures of conductors, insulating layers and shielding layers, a stable characteristic impedance can be achieved, which helps to reduce reflections and distortions during the transmission of high-speed signals.

5. High Flexibility

The micro coaxial cable adopts a precise flexible structure, which can meet the complex bending and wiring requirements inside electronic devices and is suitable for connection environments with limited space.

6. High-Density Design

Multiple micro-coaxial lines can be arranged according to different pitches, enabling multi-channel signal transmission within a limited space and enhancing the internal connection density of the equipment.

Custom Cable Assembly

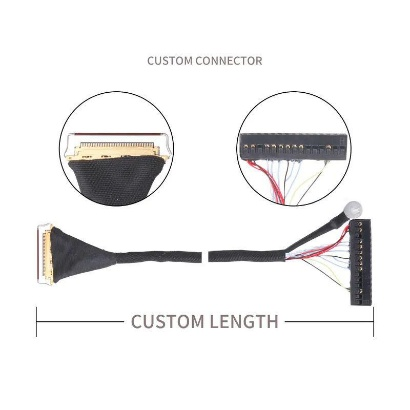

• · In addition to single Micro Coaxial Cable, we can also provide customized Cable Assembly based on the structure and electrical requirements of the customer’s equipment.
• · Customization can be done according to project needs:

• · Cable Length
• · Cable OD
• · Conductor Size
• · Characteristic Impedance
• · Shielding Structure
• · Number of Coaxial Cores
• · Pitch
• · Connector Type
• · Connector Orientation
• · Contact Plating
• · Jacket Material
• · Assembly Configuration
