85Ω impedance, 5ps deviation—how does the factory twist these numbers into the cable？
In today's era of data explosion, high-speed signal transmission within servers is undergoing a profound transformation—from parallel routing to high-speed serial, and from rigid backplanes to flexible cables. In this evolution, the SFF-8611 Oculink 8i connector has emerged as a key physical-layer interface for connecting computing and storage systems, thanks to its high density and high bandwidth. To fully understand the design essence and manufacturing challenges of this product, we must trace back to its foundational specification: the SAS (Serial Attached SCSI) standard.
I. Tracing the Origins: The "Parent-Child" Relationship Between SAS Specification and SFF Standards
To understand Oculink, it's essential to clarify two concepts: the SAS Specification and the SFF Specification.
SAS Specification (defined by the SCSI Trade Association): This is the protocol layer standard, defining how data is packaged, addressed, error-corrected, and flow-controlled. From SAS-1 (3 Gbps) to today’s SAS-4 (22.5 Gbps) and even SAS-5 (45 Gbps), it establishes the "language" and "traffic rules" for storage systems.
SFF Specification (developed by SNIA SFF TA TWG): This is the physical layer standard, specifying dimensions, pin definitions, and electrical performance requirements for connectors, cables, and PCB pads. SFF-8611 is one member of this series, defining the mechanical structure and electrical characteristics of the Oculink interface.
Key Conclusion: SFF-8611 is a physical carrier designed to support high-speed SAS protocols—and increasingly PCIe protocols. A qualified Oculink 8i cable must maintain exceptional differential signal integrity throughout its entire lifecycle, meeting the stringent requirements defined by the SAS specification.
II. Dissecting the SFF-8611 Oculink 8i: More Than Just a "Flattened Mini SAS"

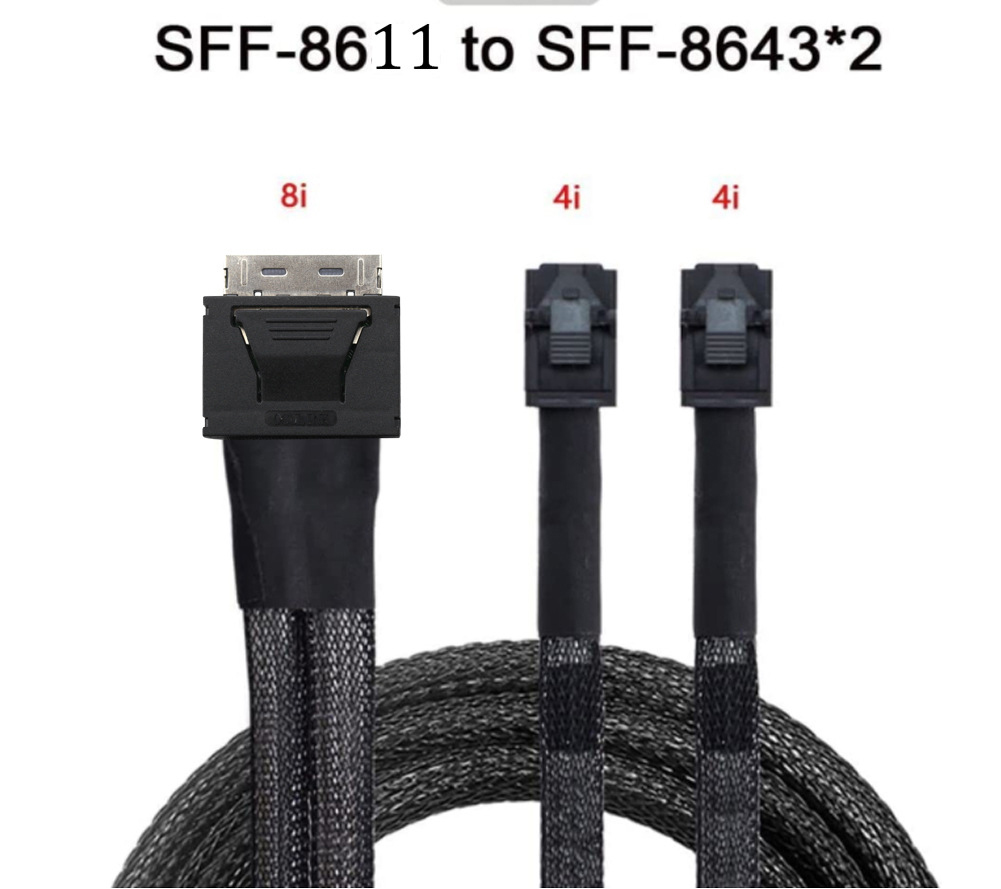

The SFF-8611, commercially known as Oculink (Optical Copper Link), represents a significant evolution from its predecessor, the Mini SAS HD (SFF-8643). Key differences are summarized below:
| Feature | Mini SAS HD (SFF-8643) | Oculink (SFF-8611) |
| Connection Mechanism | Plastic housing + metal spring contacts, high insertion force | Metal latching mechanism + pull-tab release, gentle insertion/removal (<45N) |
| Size | Larger, occupies more panel space | Ultra-thin and compact, ideal for internal short-distance direct connections |
| Pin Definition | Fixed to SAS or SATA signaling | Protocol-transparent; supports SAS, SATA, or PCIe (NVMe) over the same interface |
| Rate Support | Up to 24 Gbps (SAS-4) | Designed with ample margin to support 32 Gbps and beyond |

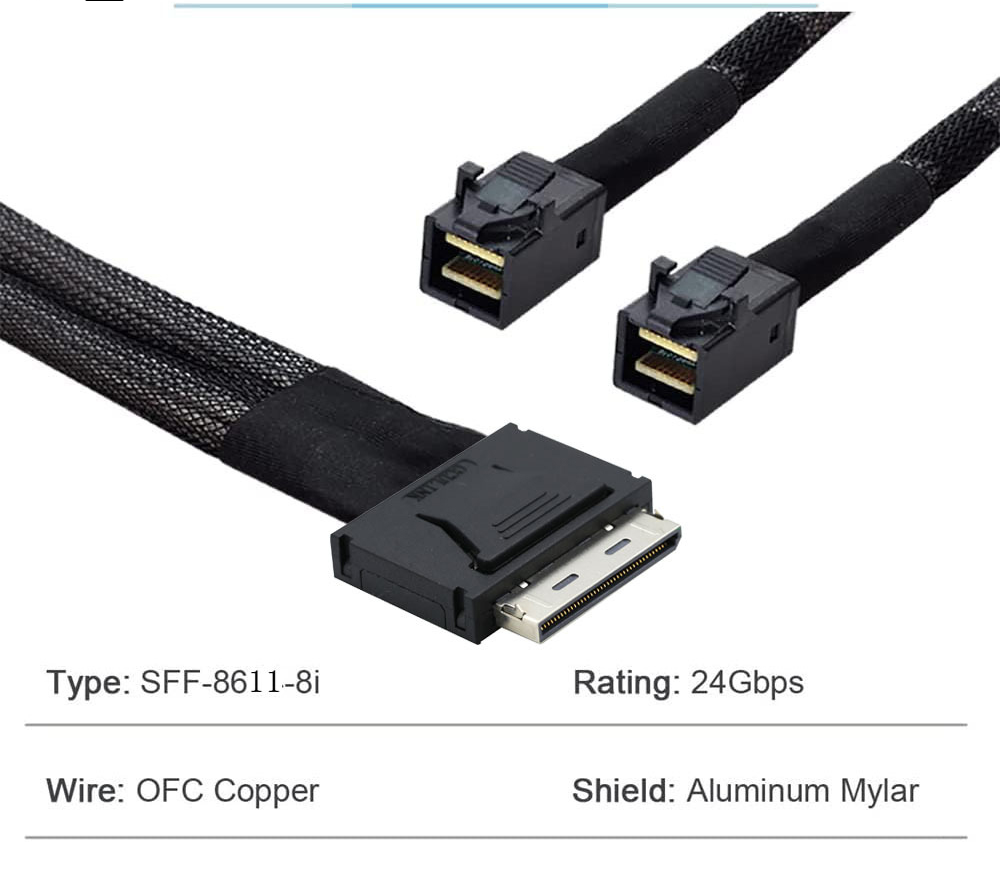

The "8i" designation indicates that this connector supports eight high-speed differential pairs (lanes)—four receive pairs and four transmit pairs (or eight bidirectional pairs, depending on protocol), delivering up to 64 GB/s total bandwidth under PCIe 4.0.
III. The Millimeter-Level Battle Under Specifications: Three Critical Electrical Metrics of SFF-8611
Due to the stringent physical layer requirements defined by SAS standards, SFF-8611 cable assemblies must pass three extremely demanding tests—directly reflecting the manufacturing precision of the factory.
1. Characteristic Impedance and Return Loss (TDR Test)
Specification Requirement: Differential impedance must be tightly controlled at 85Ω ± 10% (for PCIe) or 100Ω ± 10% (for SAS).
Manufacturing Challenge: Minor variations in insulation foam density, twist pitch, or shielding braid density can cause abrupt "step" changes in impedance. High-end manufacturers use time-domain reflectometry (TDR) to fully inspect every reel of cable, ensuring a perfectly flat impedance curve.
2. Insertion Loss and Crosstalk (Frequency-Domain Testing)
Specification Requirement: At Nyquist frequency (e.g., 16 GHz for PCIe 5.0), insertion loss must remain below specified limits, while near-end and far-end crosstalk (NEXT/FEXT) must stay below -35 dB.
Manufacturing Challenge: The eight differential pairs inside an Oculink 8i are densely packed. To meet SAS's low-crosstalk requirements, factories must employ a triple-shielding structure combining twisted pairs, aluminum foil longitudinal wrap, and braided mesh. Additionally, during terminal soldering, inter-pair skew must be strictly controlled within 5 ps.
3. Passive Equalization and Connector Retention Force
Connector terminals must have a gold plating thickness exceeding 15 μinches to ensure stable contact resistance (<30 mΩ) after repeated insertions and removals.
The precision of the terminal stamping process and injection-molded insert components directly determines the flatness of the mating surface. Even a 0.1 mm burr can cause severe signal reflections at the connection point, degrading high-speed performance.
IV. Entering the Factory: The "Three Highs" Barriers of SFF-8611 Oculink 8i Manufacturing
Not all wire harness factories can produce Oculink. A qualified SFF-8611 Oculink 8i cable factory must possess three capabilities: "high-precision equipment, high-cleanliness environment, and high consistency quality control".
The first layer: Fully automatic laser stripping vs mechanical stripping
The outer insulation layer of high-speed cables is extremely thin (usually <0.3mm). Top-notch factories use ultraviolet laser stripping machines, which perform non-contact ablation of the insulation layer without damaging the silver plating layer of the inner conductor. While low-end factories use mechanical blades, which are prone to leaving scratches - these can become "signal radiation antennas" at 32Gbps rates.
The second layer: Hot-bar welding or ultrasonic welding
Welding 8 pairs of extremely thin coaxial lines (with a wire diameter of AWG 30-34) to the Oculink PCB or terminal pads is the biggest killer of yield.
Excellent factories use the Hot-bar (thermal pressure welding) process, using precise temperature control curves (preheating → soldering → cooling) to avoid "cold welding" or "solder droplet splashing".
More advanced factories introduce ultrasonic welding, which does not require flux and eliminates the parasitic capacitance impact of residues on high-frequency signals.
The third layer: 100% high-frequency performance testing (not only continuity tests)
A genuine SAS-compliant factory will not only conduct simple "multimeter short-circuit tests". Their factory test station is equipped with:
Vector Network Analyzer (VNA): Testing S parameters (SDD11, SDD21), ensuring that the insertion loss curve of each cable matches the "channel budget" in the SAS specification.
Eye diagram tester (scope): Sending PRBS code patterns in real SAS or PCIe links to verify whether the eye height and width at the receiving end have sufficient margin.
V. Future Outlook: Oculink Challenges in the SAS-5 and PCIe 6.0 Era
As the SAS specification evolves to 24Gbps (SAS-4) and 45Gbps (SAS-5), and PCIe 6.0 introduces PAM4 modulation, SFF-8611 Oculink 8i is facing unprecedented physical limits.
Future qualified factories must plan ahead:
Material upgrade: From the traditional FEP insulation layer to foamed PE or micro-porous PTFE with a lower dielectric constant.
Structural optimization: Introducing air gap frameworks to minimize coupling between differential pairs to counter the extreme sensitivity of PAM4 signals to noise.
Active component integration: Some forward-looking factories have integrated retimers (Retimer) chips in the Oculink plug, using active compensation to counter high-frequency losses, which is a disruptive innovation over purely passive cables.
From the textual definition of the SAS specification to the physical dimensions of SFF-8611, and to the welding precision of every micrometer in the factory workshop, this is a long transformation chain from "standard" to "product". A qualified Oculink 8i cable is essentially converting the cold electrical parameters in the SAS specification into the ultimate respect for materials science, precision manufacturing, and high-frequency measurement.
