Why can the SFF-8654 cable support both SAS and NVMe？
At the physical layer of data centers, cables and connectors are often the most overlooked yet decisive components. When discussing storage interfaces, attention frequently focuses on protocols such as NVMe or SAS, while the physical entities carrying these signals are easily neglected.
SFF-8482 (with power), Slimline SAS connectors, and SFF-8654 cables together form a complete signal chain during the transition from traditional enterprise hard drives to modern NVMe all-flash arrays. Understanding the relationship among these three is not only about parsing interface specifications—it's also an excellent opportunity to grasp the philosophy behind storage backplane design.
SFF-8482 with Power: The "Universal Socket" for Traditional Hard Drives
SFF-8482 is a physical interface specification defined by SNIA (Storage Networking Industry Association) and belongs to the "multi-channel interconnect" family established by the SFF (Small Form Factor) committee. Physically, it is often mistaken for a SATA connector, but upon closer inspection, there are clear differences—beyond the standard 7-pin SATA signal pins, it features an additional row of densely packed power and ground pins.
This is precisely what "with Power" signifies.
Physical Compatibility: An SFF-8482 socket can physically accept a standard SATA drive, but conversely, a standard SATA female connector cannot insert into a SAS drive due to a built-in anti-misinsertion block. This ensures safety in dual-port configurations.
Enhanced Power Delivery: The extra pins provide higher current-carrying capacity, meeting the surge requirements of enterprise-grade 3.5-inch drives that demand over 2.0A at 12V during startup.
Dual-Port Design: SFF-8482 defines two ports—Primary and Secondary—which form the foundation for path redundancy (multipath I/O) in SAS architecture. On typical storage backplanes, the gold-finger interfaces seen on hard drives are, in most cases, fundamentally based on the SFF-8482 physical definition.
Key Pain Point: SFF-8482 is a device-side interface. While it has been highly successful on the drive side, it is less favored on the host side (HBA/RAID card side) due to its large footprint—consuming excessive PCB area and hindering port density improvements.
Slimline SAS: A Density-Driven "Slimming Revolution"
To address the bulky size of SFF-8482 on the host side, the SAS standards organization introduced Slimline SAS (Slim SAS), a family of compact, high-density physical connector specifications. Slimline SAS eliminates redundant power pins from SFF-8482—since power is supplied via backplanes or separate power lines—and retains only high-speed differential signal pairs and minimal grounding.
Among the Slimline SAS family, Mini-SAS HD (e.g., SFF-8643) is the most well-known. However, the one that truly pushes thinness to its limit and bridges the gap with PCIe lanes is SFF-8654.
A Transitional Role:
During the SFF-8482 era, backplane routing was wide and fixed in pin count (7+15 pins).
With the advent of Slimline SAS, backplanes and midplanes began adopting more compact layouts, compressing 4x, 8x, or even 16x high-speed channels into connectors no larger than a palm.
In essence, Slimline SAS solved the engineering challenge of fitting more physical links into limited panel space. It laid the physical foundation for later developments such as NVMe over SAS and pure NVMe architectures.
SFF-8654 Cable: The Physical Bridge Between Two Eras
Now comes the critical question: how do we connect an SFF-8482 interface on the backplane side (device side) to a Slimline SAS interface (such as SFF-8654) on the host side?

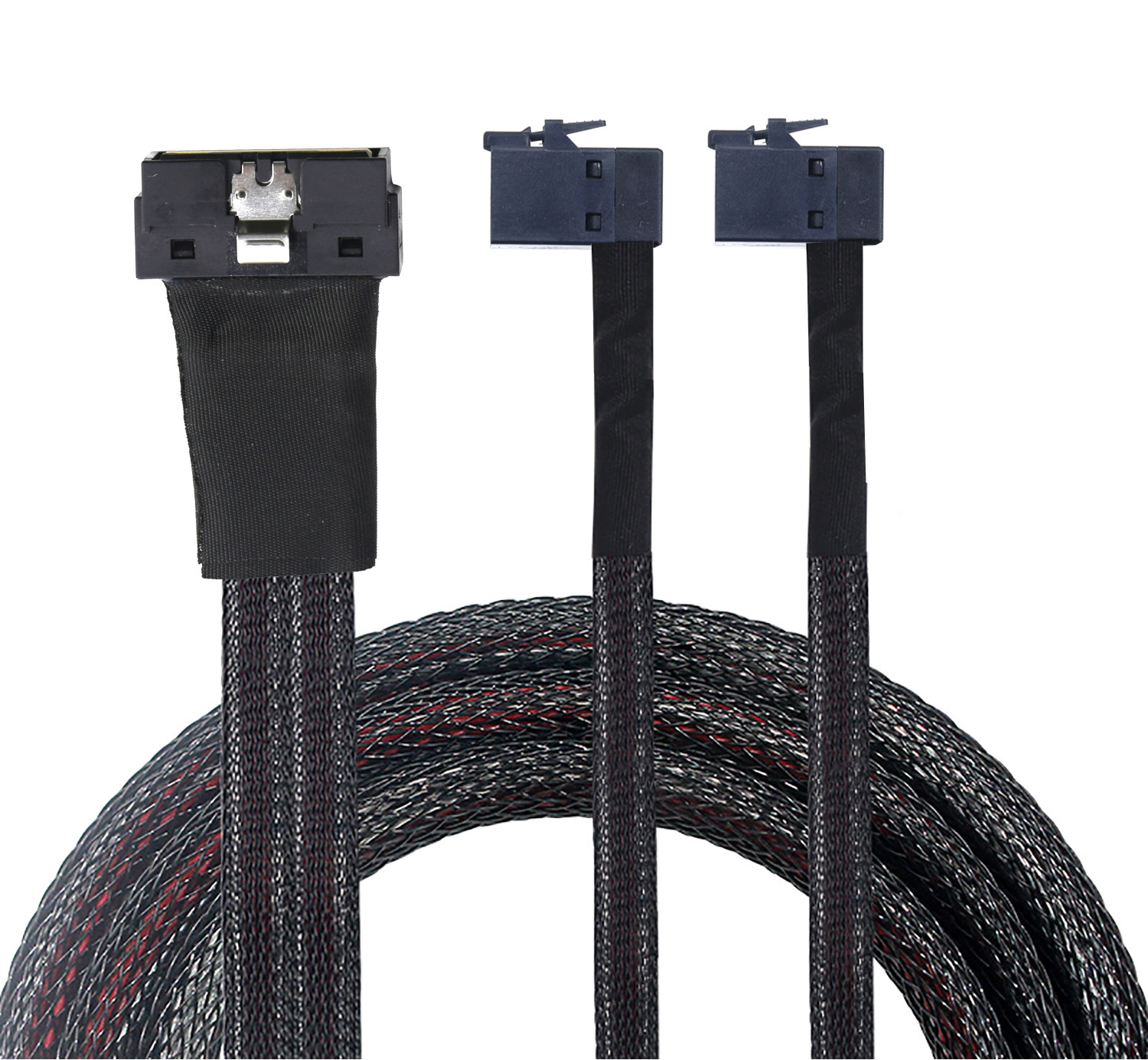

The answer lies in the SFF-8654 cable—typically referring to a straight-through SFF-8654 4x/8x cable or adapter cable.
The SFF-8654 specification defines two main types:
Type A: Primarily used for external cables (with a metal shielding shell).
Type B: Primarily used for internal cables (usually without a locking shell, more flexible).
In practical engineering scenarios, this SFF-8654 cable plays the role of a protocol conversion adapter. Its two ends are typically like this:
Host end: SFF-8654 connector (narrow strip-shaped, similar to a more flat Mini SAS HD), directly inserted into the HBA card or the Slimline SAS interface on the backplane.
Device end: SFF-8680 or SFF-8639 (U.2) adapter, but often, the end of the cable directly branches out into 4 independent SFF-8482 power supply connectors for direct connection to traditional SAS/SATA hard drive cages.
The logical link of the three
Let's take a typical hybrid storage server as an example and draw the signal flow:
The HBA card emits SAS signals, which are output through the onboard Slimline SAS connector (SFF-8654 female socket).

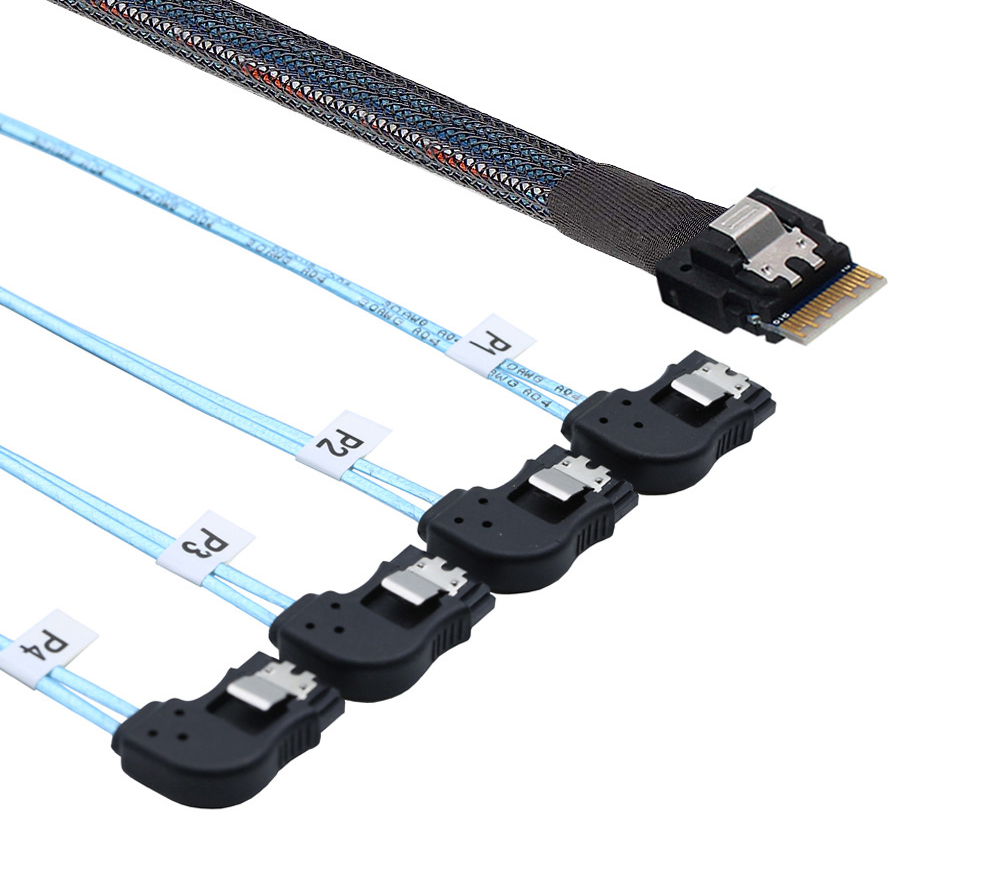

Engineers select a SFF-8654 to 4 SFF-8482 power supply fan-out cable (Fan-out Cable).
The SFF-8654 end of the cable is locked onto the HBA card; the 4 SFF-8482 (with Power) male connectors at the other end are respectively inserted into the tails of 4 enterprise-level SAS hard drives.
The hard drives obtain 12V power supply and high-speed differential signals through SFF-8482, and use its dual-port feature to connect to another HBA card to achieve high availability.
During this process:
SFF-8482 is the "hand" (grabbing the hard drive).
Slimline SAS is the "wrist" (flexible turning, saving space).
The SFF-8654 cable is the "arm skeleton" (connecting the wrist and fingers, transmitting the original signal).
Evolution trend: The "unification" ambition of SFF-8654
It is particularly worth noting that SFF-8654 is not only a SAS cable, but also the favorite of the NVMe era. According to the signal integrity requirements of PCIe 4.0/5.0, SFF-8654 defines a transmission capacity of up to 32Gbps (PCIe 5.0).
Therefore, the SFF-8654 cables we see today have versions for connecting traditional SAS backplanes (SFF-8482) and versions directly connecting U.2/E3.S NVMe SSDs (the end is SFF-8639 interface). Conclusion:
SFF-8482 (with power) defines the power supply and signal contacts of the storage medium;
Slimline SAS defines the high-density interface form of the host panel;
The SFF-8654 cable is the physical channel that spans the backplane and the hard drive.
These three together represent the inevitable path of storage interfaces evolving from "wide and heavy" to "high-speed miniaturization". For storage engineers, when you pick up an SFF-8654 cable, what you are holding is not just a copper cable, but also the bridge connecting the stability of mechanical hard drives and the speed of solid-state drives.
