Blind insertion terminal? How does SFF-8654 correct misalignment?
Inside servers, cables are the invisible "blood vessels." As PCIe Gen5 (32GT/s) and Gen6 (64GT/s) become standard, signal integrity engineers focus on insertion loss and return loss. However, at the system level, operations engineers often face more primal nightmares: cables becoming loose due to snagging, or physical damage caused by misalignment during blind mating.
To address these two pain points, the SFF-8654 (SlimSAS) specification has introduced elegant hardware solutions through its "Scoop-proof" and "Anti-misalignment Insert" designs in its latest technological evolution.

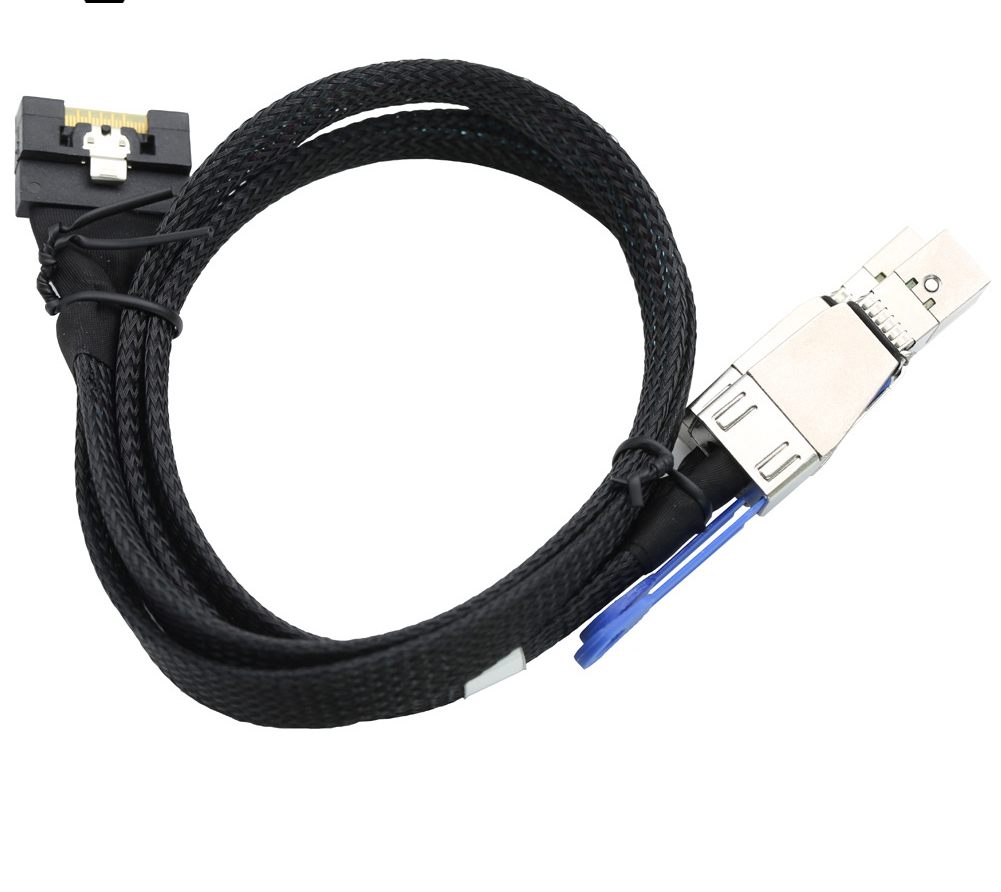

1. Scoop-proof (Anti-snag): Armoring the Connector Terminals
Traditional internal connectors—such as older Mini SAS models—often use open-style latches. In the confined spaces of a server, cable management can easily cause the edges of zip ties, metal heat sinks, or even an operator’s fingers to snag the side latch spring of the connector.
Structural Weakness: Once the spring is accidentally "scooped" or hooked, it loses tension, rendering the latch unable to secure properly, leaving the connector in a "false lock" state.
The Cost of Gen5: At 32GT/s data rates, even a mere 1mm of micro-motion gap can trigger impedance discontinuities, causing a dramatic rise in bit error rate.
The SFF-8654's Scoop-proof design does not simply raise the housing height. Instead, it incorporates an embedded hook-lock mechanism in both 8i and 4i form factors. The latch is concealed within the cut surface of a metal shield, with only a smooth, sloped entry surface exposed externally.
Physical Effect: Any pulling force parallel to the cable axis or lateral contact first engages the robust zinc alloy housing rather than the fragile plastic spring. This ensures that even under constant forces exceeding 10N, the latch retention force—typically required to be over 45N—remains unaffected by external interference.

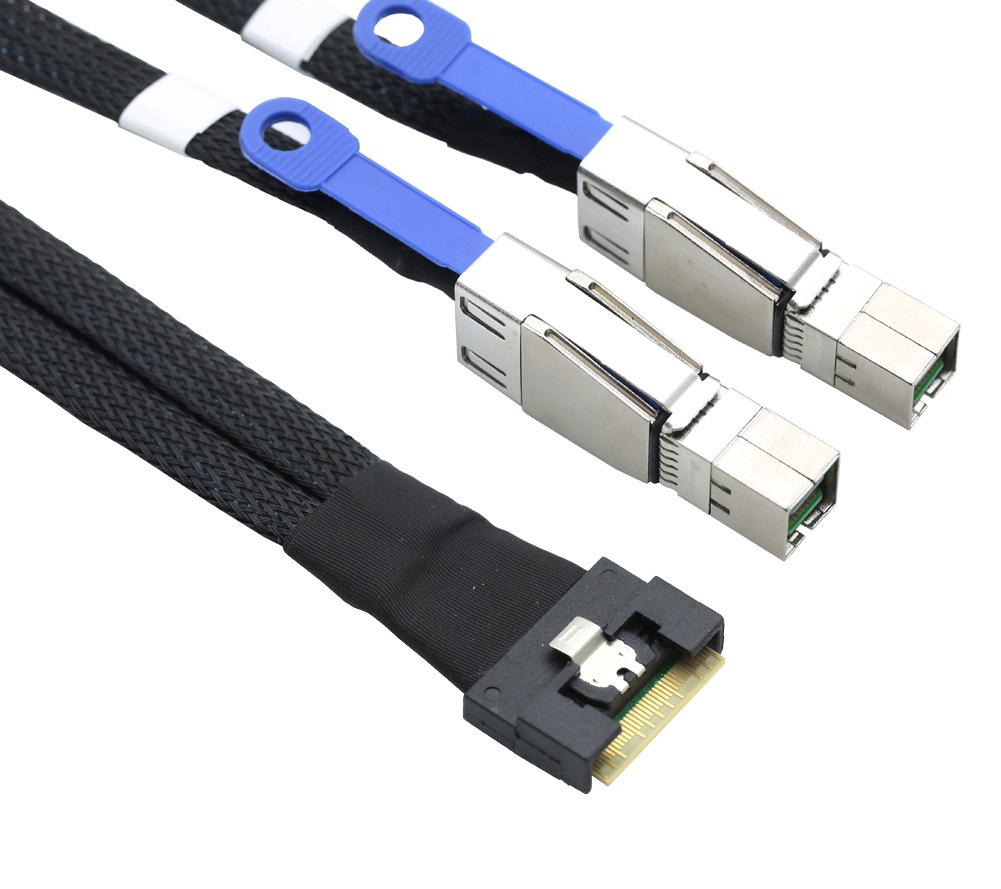

2. Anti-misalignment Insert (Misalignment Prevention Frame): The "Alignment Master" for Blind Insertion
For SFF-8654 8i (supporting 8 high-speed lanes, typically used in x8 slots or dual-port NVMe backplanes) and 4i (used for x4 links), insertion alignment accuracy is critical—make-or-break.
Challenge: When operators perform blind insertions deep inside a rack, the plug often enters the socket at an angle. If the guide pins first contact the signal terminal area, it easily causes terminal bridging or root fractures.
Solution: The Anti-misalignment Insert does not refer to movable components within the plug, but rather to a rigid guiding frame pre-installed on the receptacle side.
This frame is injection-molded from LCP (Liquid Crystal Polymer), with its front edge extending 1.2mm to 1.5mm beyond the signal terminals. This creates a leading guidance effect:
Angle correction: Regardless of whether the plug is inserted at an angle of ±5° or ±10°, the eight-shaped guide slots on the frame will first come into contact with the plug, thereby forcing the plug body to be aligned along the neutral axis direction parallel to the socket.
Terminal Isolation: During this correction process, the plug's plastic housing slides along the inner walls of the frame until the final 0.5mm of travel, at which point the signal terminals begin to make contact. This completely eliminates the risk of micro-scratches caused by the tip of a tilted plug piercing the socket’s spring blades.
III. Mechanical Tolerance Competition between 4i and 8i
In specific application scenarios, these two mechanical designs have different strategic significance for 4i and 8i:
SFF-8654 4i (Single Channel): Often used for direct connection of a single U.2 SSD to the motherboard. Due to the thin wire diameter and small bending radius, Scoop-proof is the core requirement - thin wires are more prone to being pulled during wiring, and protecting the latch is the top priority.
SFF-8654 8i (Dual Channel / Wide Port): Often used for connecting PCIe adapters or dual-port backplanes. Its width is close to 8.5mm, and the wider size increases the probability of uneven force on the left and right during insertion. Therefore, Anti-misalignment Insert is a necessity here. Without this framework, the "springboard effect" of the wide 8i would severely damage the expensive SMT connectors at the motherboard end. Conclusion
Today, AI servers often require 36 to 48 NVMe hard drive backplanes. The SFF-8654 is not merely a pipeline with a 128GB/s bandwidth.
"Scoop-proof" is a mechanical fuse that uses structural redundancy to resist human errors. "Anti-misalignment Insert" is a geometric scale that replaces visual aiming with physical laws.
When we talk about the signal quality of PCIe 6.0, please don't overlook - a carbon black anti-hooking cover and a guide slope precisely to 0.2mm are the last line of defense to ensure those precious data packets land safely. This is an important footnote for the connector industry's evolution from "electrical performance priority" to "system robustness priority".
