Can an M.2 slot support SAS drives？
In the toolkits of DIY enthusiasts and server administrators, an M.2 interface typically signifies the ultra-fast experience delivered by NVMe SSDs. However, when dealing with an aging data center server or needing to connect a large number of SAS mechanical drives, the M.2 slot reveals its limitations—physical incompatibility and protocol mismatch.
At this point, the M.2 (M-Key) SFF-8643 emerges quietly as a bridge. But where does this bridge lead? Is it connecting to an SFF-8643 four-lane backplane, branching into four independent SAS 8482 ports, or supporting the enduring SFF-8087 standard? These three seemingly similar terms actually represent entirely different storage topology architectures.
First stop: Understanding the core—What exactly is "M.2 (M-Key) SFF-8643"?
Before breaking down these combinations, let's first anchor on the core components.
M.2 (M-Key): This is the physical interface standard. Designed for PCIe x4 lanes, it offers theoretical bandwidth up to 32 Gbps (PCIe 3.0) or 64 Gbps (PCIe 4.0). It serves not only as the physical carrier for NVMe protocols but, through adapter chips, can also output SATA or SAS signals—depending on controller support.
SFF-8643: This is the Mini SAS HD standard, featuring an internal four-lane high-speed link. Commonly found on server motherboards, it connects storage array cards (RAID/HBA cards) to drive backplanes.

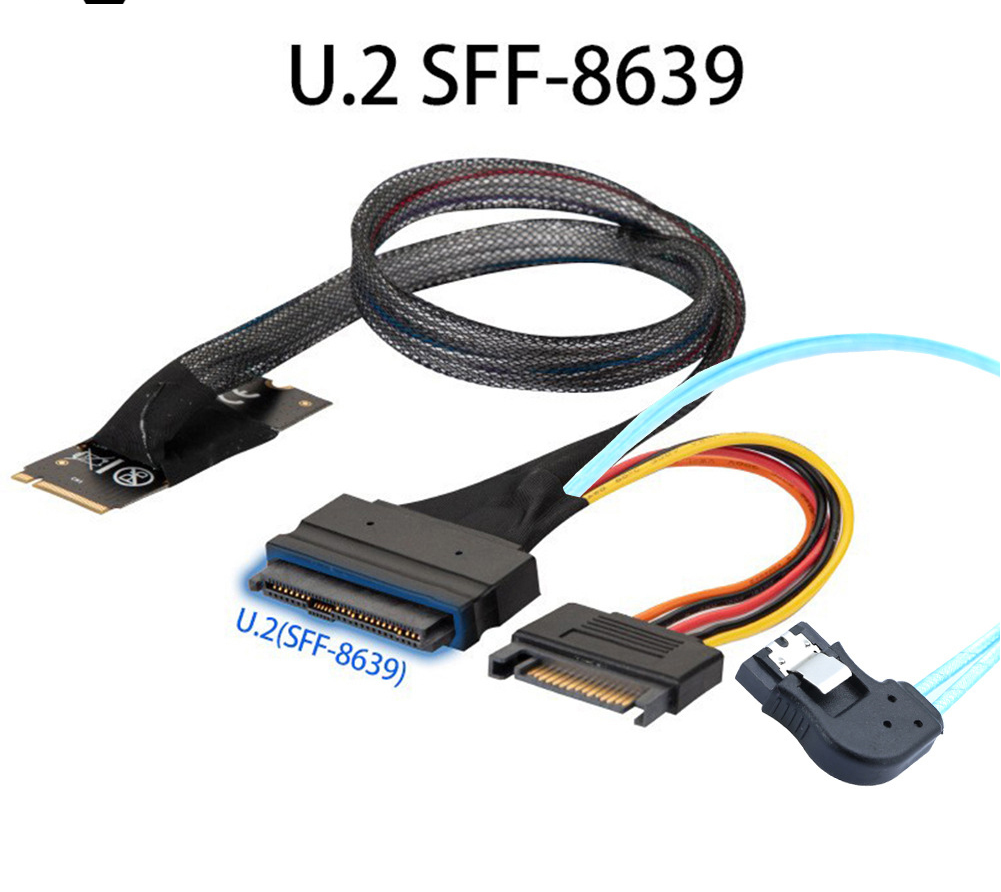

Key logic: For an M.2 slot to output SFF-8643 signals, the adapter card must integrate a PCIe-to-SAS/SATA bridge chip (such as Marvell 88SE9230 or ASM1062 series). A purely physical adapter cable without such a chip can only support NVMe U.2 SSDs and cannot power traditional SAS hard drives.
Second Stop: Solution Comparison – Three Paths, Three Destinies
1. M.2 SFF-8643 to Four SAS 8482 (Direct Multi-Disk Connection, Power is King)
Physical Form: The adapter card inserts into an M.2 slot on one end and outputs four independent SAS 8482 cables on the other. Each cable ends with an SAS 8482 connector (compatible with both SAS and SATA drives, featuring dedicated auxiliary power pins).
Use Case: Direct connection to external disk enclosures or distributed deployment within a chassis. Ideal for connecting multiple 3.5-inch SAS mechanical drives for cold storage, where each drive requires its own independent power supply.
Key Advantages: Flexible cabling—each cable can be up to 1 meter long; excellent power isolation, so a single drive failure won’t affect the entire bus.
Critical Drawbacks: Expensive due to built-in independent power design; occupies significant chassis space. The adapter must provide sufficient 12V/5V power conversion. If the motherboard’s M.2 port lacks adequate power (typically only 3.3V at 3A), you’ll need to plug in a separate SATA power cable to the adapter; otherwise, all four enterprise-grade SAS drives cannot be powered on simultaneously (startup current may reach up to 2A per drive).
2. M.2 SFF-8643 to SFF-8087 (Backward Compatibility, Backplane Preferred)
Physical Form: The adapter converts PCIe signals from the M.2 interface into SAS signals, outputting them to an SFF-8643 female socket. A data cable then connects this to the server’s SFF-8087 backplane interface.
Use Case: Reviving older servers. When you have an older tower server equipped with an SAS backplane (SFF-8087 interface) but lacking PCIe slots on the motherboard, use an unused M.2 Wi-Fi slot (confirming PCIe lane availability) to extend SAS storage capability.
Key Advantages: Excellent compatibility—SFF-8087 is a common standard for previous-generation SAS 2.0 (6Gbps) and SAS 3.0 (12Gbps). One cable handles four drive channels, clean and efficient.
Important Note: This solution supports only data transmission. Since the backplane is typically powered by the server’s main power supply, there’s no need to worry about power delivery on the adapter. However, confirm that the motherboard’s M.2 interface supports PCIe lanes (some Wi-Fi slots support only USB/SATA and cannot convert to SAS).
3. M.2 SFF-8643 to SFF-8643 (Straight-Through Backplane, Modern Standard)
Physical Form: This is the simplest solution—the adapter directly converts M.2 to a standard SFF-8643 interface, enabling direct connection to modern server backplanes or U.2 NVMe drive cages.
Use Case: Building all-flash arrays or connecting to 12Gbps SAS/SATA backplanes supporting Tri-Mode operation.
Key Advantages: No signal loss via adapters; best signal integrity. Supports direct PCIe NVMe protocol passthrough (if bridge chip is bypassed), offering lowest latency.

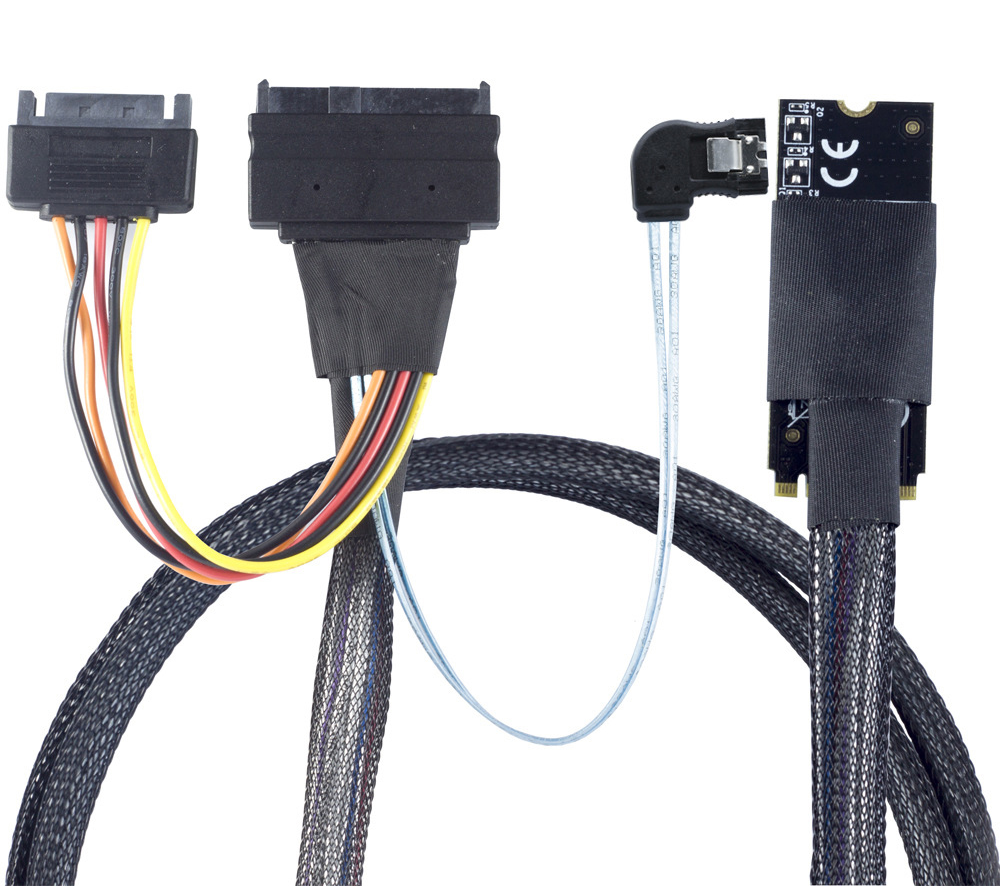

Purchasing Pitfall: Many low-cost cards on the market are purely physical adapters (supporting only NVMe U.2) and cannot recognize SAS drives. Always check product details to confirm whether it explicitly states “supports SATA/SAS drives” or includes a bridge controller chip.
Third Stop: The Battle of Protocols and Speeds—Don’t Be Misled by "Physical Compatibility"
Behind these three keywords lie fundamental differences in protocol stacks:
| Keyword | Output Signal Type | Max Rate (SAS) | Power Dependency | Suitable Drive Type | M.2 → SFF-8643 PCIe / SAS (bridging) 12 Gbps (SAS 3.0) Requires external power supply (typically) U.2 NVMe / SAS/SATA (chip-dependent)
M.2 → Quad SAS8482 SAS (forced bridging) 6 Gbps (mainstream) or 12 Gbps Must use external SATA power SAS/SATA only (NVMe not supported)
M.2 → SFF-8087 SAS (forced bridging) 6 Gbps (SAS 2.0) Backplane power supply SAS/SATA only
Decision rule: If your drive is a 12 Gbps SAS enterprise drive, you must choose a bridge chip supporting the SAS 3.0 standard (e.g., LSI SAS3008); otherwise, it will be downgraded to 6 Gbps.
Stop 4: Practical Guide - How to Avoid "Purchased but Not Usable"?
Identify the "soul" of the M.2 slot: Not all M.2 ports support PCIe. Refer to the motherboard manual to ensure that this slot uses the PCIe channel (at least PCIe 3.0 x2). If it uses SATA or is only for WiFi, none of these three adapter cards will work.
Power supply is the hidden killer: Especially for the "to four SAS8482" solution, when connecting four 7200 rpm SAS drives, the peak startup power consumption can reach over 40W. Make sure to choose an adapter card that comes with a large 4-pin or SATA power input; otherwise, it is very likely to cause the M.2 slot to burn out or lose the drive.
Heat dissipation considerations: The bridge chip generates significant heat during continuous data read and write (up to 70°C+). It is recommended to choose an adapter card with a heat sink or add a ventilation channel in the case to assist in cooling.
Conclusion: There is no best interface, only the most appropriate topology.
If you are renovating an old rack server, choose M.2 → SFF-8087 (backplane compatible champion).
If you need external expansion of multiple independent hard drives and don't mind the complicated wiring, the four-way SAS8482 is the only choice.
If you pursue ultimate simplicity and are oriented towards the future, the direct M.2 → SFF-8643 is the best entry point to 12Gbps SAS or NVMe hybrid arrays.
