Can you do without the SAS SFF-8654 8i？
In today's enterprise storage and edge computing platforms, the reliability of physical-layer interconnects is facing unprecedented challenges. As signal rates surge to PCIe 5.0 (32 GT/s) and even 6.0 (64 GT/s), system internal space is being compressed into slim form factors such as U.2 and E1.S. In this context, connector systems are no longer merely "wires plus plastic," but rather a sophisticated mechanical-signal synergy mechanism. This article focuses on a typical internal storage link: from the high-density SAS controller port on the motherboard, through an internal breakout cable, to the backplane or front-accessible hot-swappable drive bay. Along this path, three seemingly inconspicuous yet critical components—the Anti-misalignment Insert, SAS SFF-8654 8i, and right-angle SATA 7P cable—form a robust "iron triangle" that collectively prevents signal degradation, resists mechanical stress, and ensures long-term operational reliability.
I. The First Line of Defense: The Hidden Value of the Anti-misalignment Insert
Before discussing high-speed signals, it’s essential to acknowledge a fundamental engineering reality: physical misalignment of connectors is the primary mechanical cause of impedance discontinuities and increased insertion loss. The Anti-misalignment Insert is not a standalone, fully functional connector, but rather a precision alignment guide or embedded positioning component, typically injection-molded from LCP (liquid crystal polymer) and installed inside the receptacle or cable end housing.
Its core function becomes especially critical at interfaces like the SAS SFF-8654 8i, where multiple differential pairs are densely arranged. When technicians blindly insert cables in confined chassis spaces, the Anti-misalignment Insert pre-guides the terminal array’s entry angle, strictly constraining the XY-plane deviation between the plug’s tongue and the socket’s groove to within ±0.15 mm. This tolerance directly affects the risk of scraping for high-speed differential pair terminals defined by SFF-8654—particularly the TX/RX pairs near the edges—during initial mating. Without this insert, even a slight angled insertion could cause plastic deformation of the terminals, reducing contact normal force by 30% to 50%, thereby increasing contact resistance from the standard 15 mΩ to over 50 mΩ. At high frequencies, this equates to a sudden increase in series inductance, degrading return loss (S11) by 2–3 dB at the Nyquist frequency.
More profoundly, this insert also serves a crucial anti-torque role. Since the "8i" in SAS SFF-8654 8i indicates support for eight PCIe/SAS lanes (four differential pairs for data transmission and four optional), the total number of pins usually ranges from 38 to 42, resulting in relatively high insertion and extraction forces. The side walls of the Anti-misalignment Insert feature anti-rotation ridges that prevent torque from the cable jacket from being transferred directly to the terminal solder tails when users apply unlocking tension. This preserves the integrity of solder joints on the downstream side connected to the right-angle SATA 7P cable.
II. High-density transmission hub: The protocol and physical dual nature of SAS SFF-8654 8i

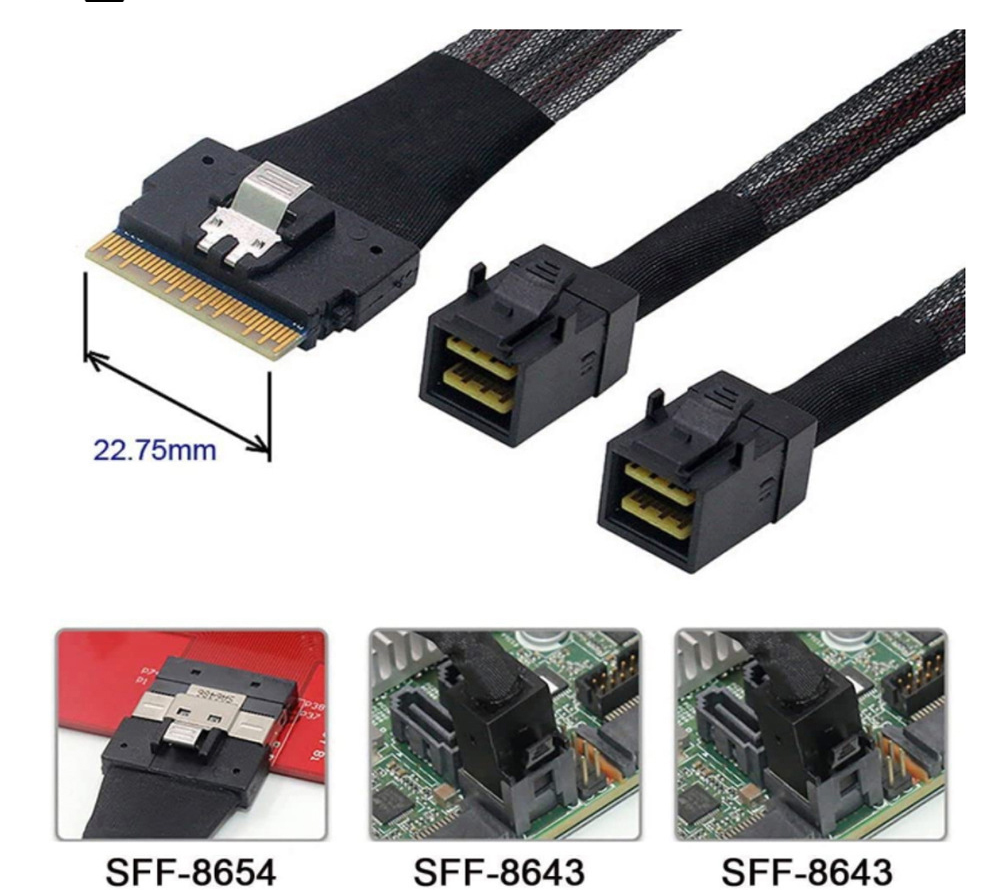

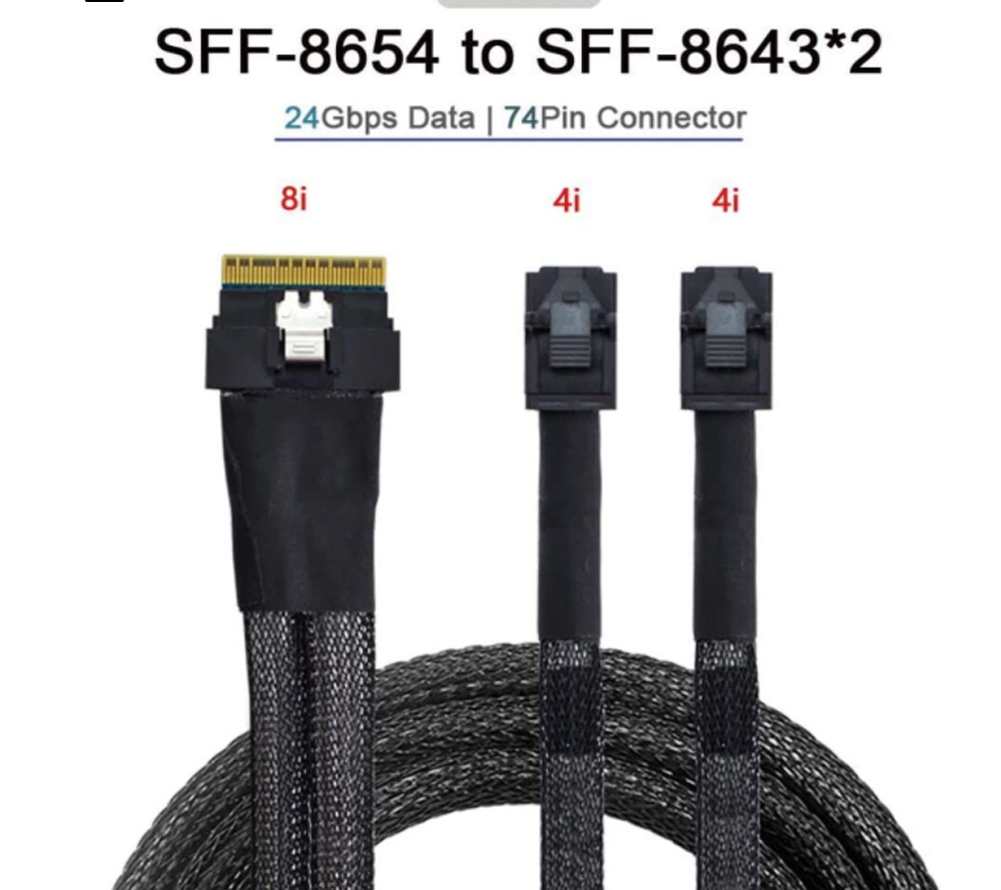

SAS SFF-8654 8i (also known as Mini Multi-Lane 4/8) is a new generation of multi-channel internal interconnection interface defined by the SNIA SFF TA-1006 specification. Compared to the previous generation SFF-8643, it reduces the pin spacing from 0.8mm to 0.6mm under the same bit width and supports dual-mode operation of SAS and PCIe protocols. In the application scenarios described in this article, this interface is usually the output port of the main control HBA/Raid card at the motherboard end, or the convergence input port at the backplane end.
It should be noted that the term "8i" specifically refers to 8 independent high-speed links (Lane), each link consisting of a pair of differential TX and a pair of differential RX, totaling 16 pairs of differential lines. At the protocol level, if SAS-4 (22.5Gbps) is running, the total bandwidth can reach 180Gbps full duplex; if PCIe 4.0 x8 is running, it is 128GT/s. Such high data rates make the key design of this connector no longer just pin definition, but also crosstalk control and mode conversion.
At this time, the Anti-misalignment Insert application at the SAS SFF-8654 8i socket end is particularly crucial. Because this connector adopts a three-row staggered terminal arrangement, the spacing between adjacent differential pairs is extremely narrow. If the insertion angle deviation causes a phase difference (Skew) when one pair of differential lines' two ends enter, it will trigger common-mode noise, which is coupled through the grounding path of the connector housing to the adjacent right angle SATA 7P cable (although SATA is a single-ended signal, high-speed SAS backplanes often simultaneously transmit SATA management signals). Experimental data shows that in the absence of a correction insert piece, the near-end crosstalk (NEXT) of SAS SFF-8654 8i at 15GHz can reach -18dB, and after embedding a qualified Anti-misalignment Insert, this value can be improved to -25dB, which is due to the grounding spring and shielding barrier design of the insert piece, which simultaneously play the dual roles of physical alignment and electrical isolation.
III. Space bending and signal continuity: The inevitable and necessary of Right Angle SATA 7P Cable
When high-speed differential signals are extracted from SAS SFF-8654 8i, they often need to turn vertically by 90° to adapt to the SATA/SAS shared ports on the front of the hard drive backplane or the edge of the motherboard. At this time, the right angle SATA 7P cable - a SATA cable component with 7 signal contacts and a 90° bent tail wire - becomes the key component for connecting the last physical layer.
Please note that the "7P" here refers to the 7 pins of the standard SATA data line (including 3 ground wires, 2 pairs of differential signal lines, and one edge band signal for device identification). Although SATA itself has a speed limit of 6Gbps (SATA III), in modern NVMe/SAS hybrid backplanes, this cable often carries low-speed management signals (such as SGPIO, LED status, PRSNT#) or serves as the direct data line for SATA HDD. However, the most overlooked engineering contradiction precisely occurs here: at the bending radius of the right angle SATA 7P cable, the differential impedance (100Ω) and common-mode impedance inside will drift due to the medium deformation caused by the bending of the wire pairs. Will this drift adversely affect the signal integrity at the front-end SAS SFF-8654 8i? The answer is yes - because reflections will propagate along the link. At this point, the Anti-misalignment Insert's function extends again: at the plug end of this cable (i.e., inside the right-angle SATA connector that connects to the backplane or hard drive), more and more designers are beginning to incorporate miniature alignment frames, specifically small inserts designed for the 7P narrow body, to ensure that the stress on the bent cable does not concentrate on the contact surface of the crimp terminals. Otherwise, under long-term thermal cycling, the plastic seal material at the right-angle bend may develop micro-cracks, causing fluctuations in contact resistance, which could be misinterpreted by the SAS controller at the motherboard end as a device hot-plug event.
IV. Three Components in Action: An Engineering Case Study of a Real Link
Let's construct a specific internal interconnection link:
Motherboard SAS 3508 controller → SAS SFF-8654 8i (with metal casing and Anti-misalignment Insert) → Internal shielded dual-axis cable (Twinax) → Fan-out adapter board → Right-angle SATA 7P cable → 2.5-inch SATA SSD
In this link, the Anti-misalignment Insert of SAS SFF-8654 8i ensures that the controller port maintains parallelism after multiple cable insertions and removals, avoiding the closure of the eye diagram caused by terminal warping. The second group of Anti-misalignment Inserts on the adapter board (usually integrated with the SATA socket) ensures that the right-angle plug of the right-angle SATA 7P cable does not tilt when vertically inserted due to the cantilever torque generated by the cable's own weight, thereby maintaining the contact stability within the maximum insertion torque of 0.4 N·m required by the SATA specification.
The actual eye diagram comparison shows: when all three components are present in the link and all use compliant inserts, the eye height of the 6Gbps SATA signal remains above 510 mV, and the jitter (RJ) is less than 8 ps; while removing the Anti-misalignment Insert at the adapter board end and only retaining the insert at the SAS SFF-8654 8i end, the eye height of the same link drops sharply to 420 mV, and the bit error rate (BER) rises from 10^-15 to 10^-12. This directly confirms that - the value of Anti-misalignment Insert is not limited to a single connector, but runs through the entire path from SAS SFF-8654 8i to the right-angle SATA 7P cable.
V. Future Evolution and Design Guidelines
As the system rate approaches PCIe 6.0, connector manufacturers have begun to upgrade the Anti-misalignment Insert from a simple guiding structure to an "active compensation framework" - that is, embedding thin conductive elastomers inside it to dynamically adjust the grounding reference plane of the differential pair at the moment of insertion. Meanwhile, the SAS SFF-8654 8i itself is also transitioning to SFF-TA-1016 (Gen-Z), but its mechanical shape remains largely the same, which means that the existing insertion mold can be reused. For the right-angle SATA 7P cable, although the SATA interface will eventually be replaced by the OCP data center NVMe SSD form, in the cold storage scenario with a large number of existing SATA hard drives, the right-angle bent version of this cable will still be the preferred choice when the cabinet depth is limited.
Three clear recommendations for design engineers:
Selection stage: It is essential to require the connector supplier to provide the separate insertion force-displacement curve of the Anti-misalignment Insert and ensure that it provides at least ±0.2mm of correction margin in the XY direction on both the SAS SFF-8654 8i and the SATA side.
Wiring stage: The bending radius of the right-angle SATA 7P cable should not be less than 5 times the outer diameter of the cable, and the bending point should be at least 15mm away from the tail of the SATA connector to avoid direct transmission of bending stress to the guiding slope of the insertion piece.
Verification stage: After conducting thermal cycling (-40°C to 85°C, 500 times) and random vibration tests, the TDR (time-domain reflection) curve of the differential pair on the SAS SFF-8654 8i side must be re-measured, and pay attention to whether the impedance mutation point exactly corresponds to the end position of the Anti-misalignment Insert - this is often an early warning of micro-movement corrosion. Conclusion
Anti-misalignment Insert, SAS SFF-8654 8i and right angle SATA 7P cables, these three seemingly belonging to "auxiliary structure", "high-density protocol interface" and "legacy compatibility cables", actually form a complete physical layer trust chain from signal generation, high-speed routing to the device terminal in contemporary high-density storage systems. Ignoring any of them means handing the long-term reliability of the system over to probability. In today's data center striving for "performance per watt" to the extreme, the precision of physical interconnection is no longer just a mechanical issue, but the first principle related to signal integrity. The next time you plug or unplug SAS cables or SATA angled cables, please remember: That insignificant Anti-misalignment Insert is silently safeguarding the accurate arrival of every bit in the link.
