Can SFF-8654 replace Mini SAS HD？
In the field of high-speed data storage and server interconnects, interface and cable specifications directly determine the upper limit of system performance.
1. SAS Cable Speed: From Base Rates to Generational Evolution
The speed of SAS (Serial Attached SCSI) cables is not fixed but has continuously evolved with each standard iteration. Current mainstream SAS cable speed grades include:
SAS-2 (6Gb/s): 600MB/s per lane actual bandwidth, commonly found in early 6G SAS disk backplanes.
SAS-3 (12Gb/s): 1.2GB/s per lane, currently the most widely deployed SAS speed in data centers.
SAS-4 (22.5Gb/s / 24Gb/s): Approximately 2.4GB/s per lane, backward compatible with 12Gb/s, but requires corresponding transceiver support.
SAS-5 (~45Gb/s): Under development, designed for future NVMe hybrid scenarios.
It's important to note that SAS cable speed typically refers to the raw signal rate per lane. The actual total cable bandwidth equals "number of lanes × per-lane rate." For example, a 4-lane 12Gb/s SAS cable can achieve up to 4.8GB/s total throughput (higher in full-duplex mode).

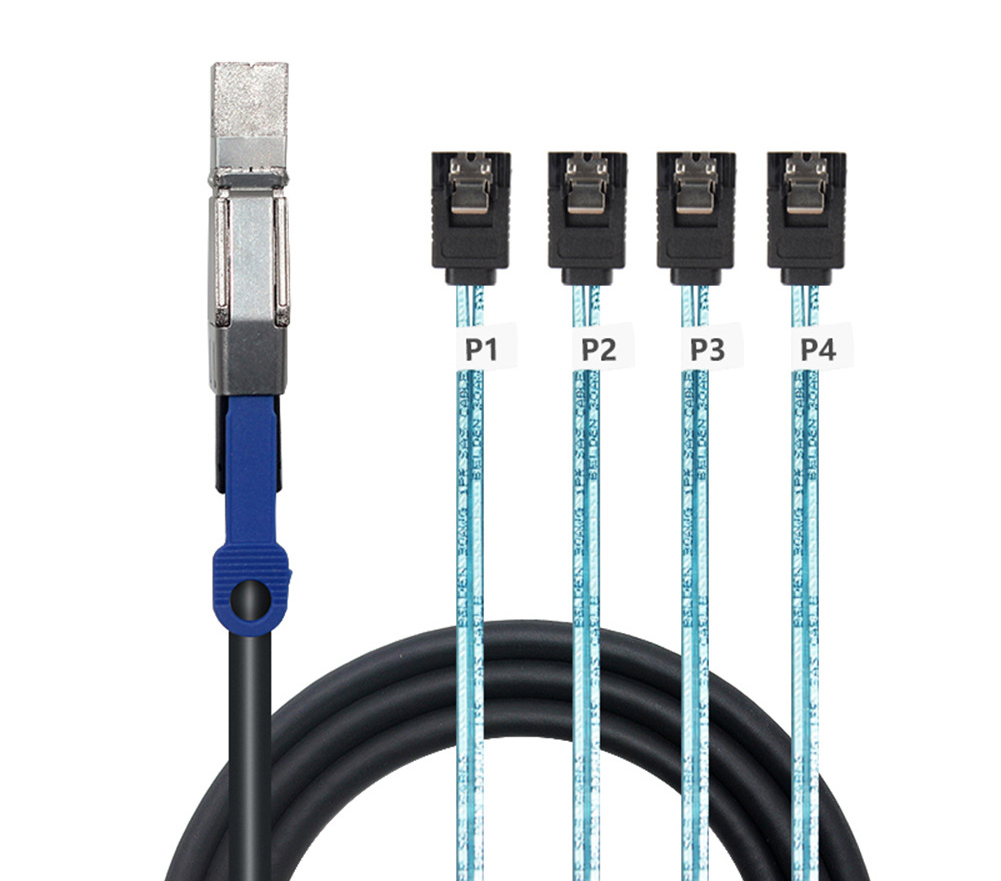

2. Mini SAS HD: The Physical Form Factor for High-Density Applications
Mini SAS HD (High Density) is a miniaturized SAS connector series defined by the SFF Committee, intended to replace earlier Mini SAS connectors (SFF-8086/8087/8088). Common specifications include:
SFF-8643: Integrated Mini SAS HD connector (commonly used on HBA cards and backplanes), supporting 4-lane or 8-lane (dual-port) configurations.
SFF-8644: External Mini SAS HD connector (used for rack-to-rack interconnects), typically paired with passive or active copper cables or optical modules.
In terms of SAS cable speed, the Mini SAS HD physical layer can reliably support:
SAS-3 (12Gb/s) over passive copper cables up to approximately 6–8 meters.
SAS-4 (22.5Gb/s) requiring low-loss cables or active solutions (retimers/cable equalizers).
Thus, Mini SAS HD itself does not define speed; instead, through its excellent signal integrity design, it enables compatibility across the evolution from SAS-2 to SAS-4.
3. SFF-8654 Specification: A Key Standard for PCIe/SAS Convergence
The SFF-8654 specification is the standard most commonly confused with Mini SAS HD, yet there are clear differences between them:
Feature SFF-8654 Mini SAS HD (SFF-8643/8644)
Primary Application PCIe (NVMe) + SAS dual protocol Pure SAS / SATA protocol
Number of Lanes 4i / 8i (internal), 4x / 8x (external) Mainly 4i / 4x, with limited 8i support
Speed Grade Up to 32Gb/s (PCIe 5.0) or even higher Mature at 12Gb/s, limited support for 22.5Gb/s
Connector Form Factor Narrower and more compact plug-in structure Relatively wider with metal latch
According to the official definition in the SFF-8654 specification (SFF TA Working Group), this standard primarily addresses two issues:
Protocol independence: A single connector can carry SAS or PCIe signals, adapting to the era of "triple-mode controllers."
Increased density: Achieves more channels within the same panel area, such as the SFF-8654 8i having a width similar to that of the SFF-8643 4i.
However, in practical applications, the SAS cable speed performance of SFF-8654 cables depends on the electrical characteristics of both the cable and the transceivers. When using qualified low-loss cables, SFF-8654 performs comparably to Mini SAS HD in 12Gb/s SAS-3 environments; in 24Gb/s SAS-4 environments, SFF-8654 typically offers better performance due to its updated design.
4. Engineering Collaboration and Selection Recommendations for the Three Components
If the system is a pure SAS environment (hard drives, tape libraries, SAS expanders) with a speed of ≤ 12 Gb/s: prefer Mini SAS HD connectors paired with SAS cables of the corresponding speed rating (passive copper cables are cost-effective and reliable).
If the system requires a mix of SAS and NVMe, or plans to evolve beyond 24Gb/s in the future: design the backplane and cables according to the SFF-8654 specification, and clearly specify the supported SAS cable speed (it is recommended to require test reports demonstrating performance above 22.5Gb/s).
Cable length is critical: at 12 Gb/s SAS, whether using Mini SAS HD or SFF-8654, passive copper cables experience a significant increase in bit error rate beyond 5–6 meters, at which point active cables or fiber-optic solutions should be used instead.
Summary
SAS cable speed is a performance target, Mini SAS HD is a mature and widely validated physical interface, while the SFF-8654 specification serves as the standard blueprint for future-converged storage interfaces. Understanding the hierarchical relationship among these three—speed standards, interface types, and detailed specifications—helps engineers make informed decisions balancing cost, density, and scalability when designing server storage subsystems. As SAS-4 and higher speeds become more widespread, the significance of SFF-8654 will gradually increase, yet Mini SAS HD will continue to be present in a large number of existing and mid-to-low-end designs for an extended period.
