Don't be fooled anymore! Understand once and for all what Type-C really is.？
"Why doesn't my C port work with the monitor?"
"Why is file transfer so slow with this C cable?"
If you have these questions, it means you still think of Type-C as just a charging port.
Today, let's talk about that small, flat oval-shaped port that can be plugged in either way - USB Type-C.
Many people think Type-C is all about fast charging, high speed, and being a universal port.
The truth is: it's just a shape.
I. What exactly is Type-C?
In a nutshell:

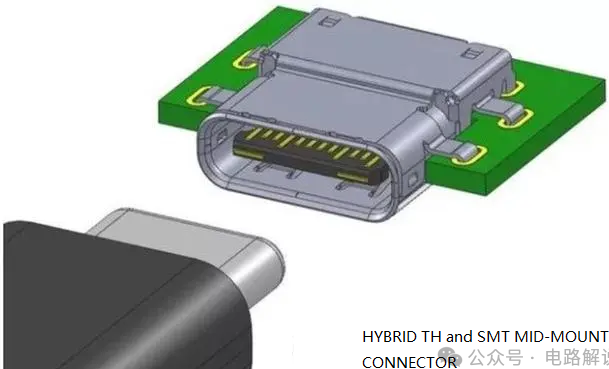

Type-C only specifies the shape, size, and pin arrangement of the port.
How fast it can transfer data, whether it can connect to a monitor, and how much power it can deliver all depend on the protocol inside the device.
Just like electrical sockets:
All wall sockets look the same, but what you plug in could be a lamp or an air conditioner.
II. Why has it become so popular worldwide?
✅ Blind insertion in either direction, no more fumbling
Before Type-C: "The three-time rule" for USB-A.
Now with Type-C: Just plug it in, it's always right.
✅ Small size, perfect for thin laptops and mobile phones
About 8.3 × 2.5 mm, smaller than the old USB, allowing laptops to become thinner.
✅ 24 pins, capable of many functions
Power, data, video, audio... all in one port.
III. What can Type-C do? (It depends on the protocol)
Function Explanation
Charging (USB-PD) Up to 240 W, can power laptops, phones, and even small appliances
Data transfer From the "snail pace" of USB 2.0 to the "blazing speed" of USB4 / Thunderbolt 4
Video output Connect directly to a monitor with one cable, no need for a dedicated HDMI port
Audio Replace the 3.5 mm headphone jack (requires digital decoding)
⚠️ Important reminder:
Not every Type-C port supports all these functions. Many phone C ports only support charging and USB 2.0.
IV. Those confusing labels
When buying cables or devices, you'll see these terms:
USB 2.0 / 3.2 Gen 1 / Gen 2
These represent speed grades, ranging from 480 Mbps to 20 Gbps. USB4
Unified high-performance standard, up to 40 Gbps, based on Thunderbolt 3.
Thunderbolt
Intel's own child, with the icon ⚡️, it is the fastest and most feature-rich, but not all C ports support it. DP Alt Mode
It can output DisplayPort video signals, and it's this that connects to the monitor.
Five. The place where you are most likely to be deceived: Cables
"Why can the original cable run at full speed, but the one I bought can't?"
Because Type-C cables ≠ the same cable.
