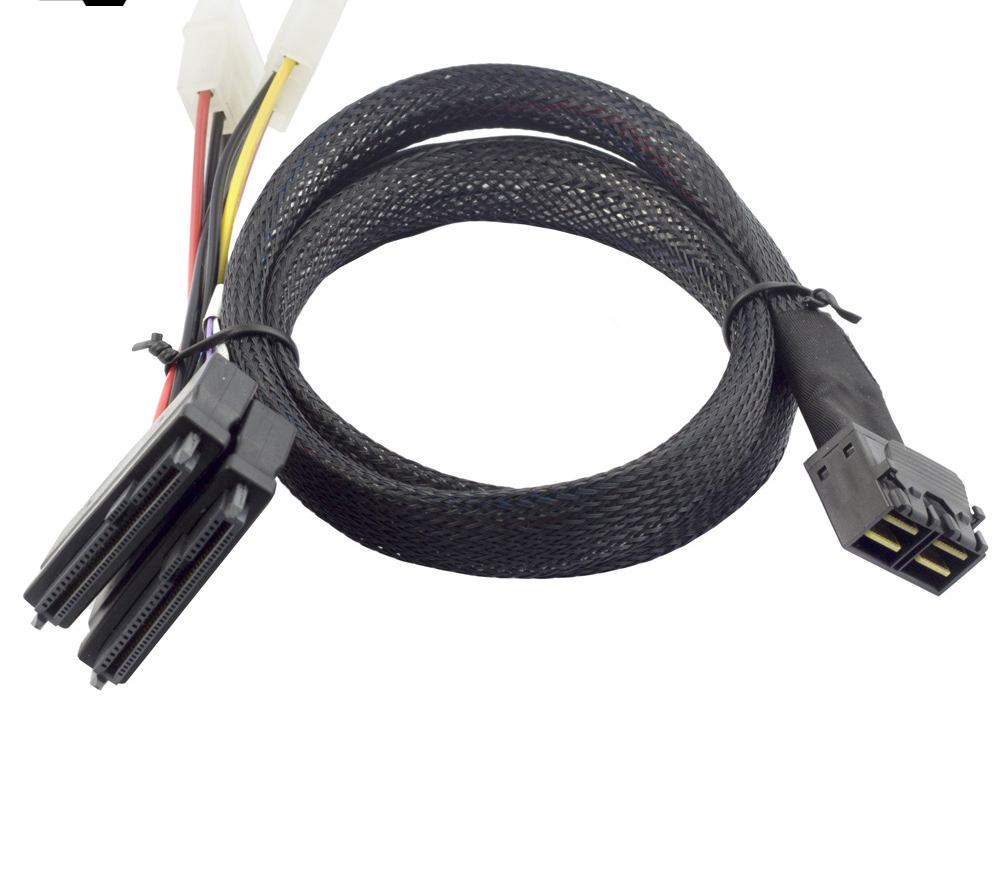

This wire extends the life of the old SAS card by three more years.
Deep within data center racks or between the backplanes of high-performance workstations lies an unassuming yet crucial "vein"—the server cable. When connecting an older-generation HBA (Host Bus Adapter) card to a modern NVMe (Non-Volatile Memory Express) backplane, or building a DIY all-flash NAS, cables like the 2-Port SAS SFF-8643 to SFF-8654 8i often represent the final critical link—literally the "last meter" that determines project success.
This article will delve into the technical logic, physical design, and selection pitfalls behind this essential cable.
1. Decoding the Key Terms: The Evolution of Connectors
To understand this cable, we must first grasp the interface standards at both ends:
1. SFF-8643 (Host/Controller Side)
This is the "king of standard interfaces" from the SAS (Serial Attached SCSI) era, commonly found on 12Gb/s SAS HBA and RAID cards from vendors such as LSI/Broadcom and Microchip. Physically, it's a Mini-SAS HD connector, typically supporting four high-speed lanes (x4). In the context of a "2-Port" cable, this means the internal circuitry aggregates eight physical lanes (x8 bandwidth), enabling higher aggregated throughput.
2. SFF-8654 8i (Device/Backplane Side)
This is the SlimSAS connector introduced in the PCIe Gen 4/5 era. Though more compact than SFF-8643, it features extremely high pin density. The "8i" suffix indicates it supports eight independent high-speed differential signal channels. A common point of confusion: the SFF-8654 8i does not carry protocol itself—it can support either SAS (backward compatible) or PCIe (used for direct connection to NVMe U.2/U.3 drives).
2. What Exactly Is This Cable "Converting"?
Connecting an SFF-8643 (SAS card side) to an SFF-8654 8i (backplane side) involves more than just a physical shape change—it requires protocol transmission and lane mapping:
Lane Mapping: The two ports on the SFF-8643 end (each x4) are precisely routed via internal PCB traces or coaxial cables to the corresponding eight pins on the SFF-8654 8i. This ensures that the 12Gb/s signals from the SAS controller are transmitted without loss to the backplane.
Protocol Transparency: This is a passive direct attach cable (DAC). It contains no signal repeater chips, so it doesn't care whether the data being transmitted is SAS commands or SCSI instructions. As long as impedance matching (typically 85Ω or 100Ω) is maintained, it can operate at SAS-3 (12 Gbps) or even SAS-4 (22.5 Gbps) speeds.
Quick Use Case Summary:
Scenario: You have an older 12Gb/s SAS 9361-8i RAID card with an SFF-8643 interface, but your new server chassis only provides SFF-8654 8i ports. This cable acts as the bridge, allowing you to keep using your existing, expensive RAID card while still powering eight SAS/SATA drives inside the chassis.
III. The "Life and Death" Cable for Server Connections: Three Golden Rules for Selection
In server operations, faults in these cables are extremely difficult to diagnose (often mistaken for disk dropouts). Please pay close attention to the following three points:
Pinout Must Be Precisely Matched
While the SFF Standards Association defines physical dimensions, pin sequences vary by manufacturer (e.g., Intel vs. Broadcom vs. Huawei). Before purchasing, confirm whether your SFF-8654 8i backplane follows the SFF-TA-1001 standard (generic) or a specific OEM custom definition. Incorrect wiring may result in simple issues like unrecognized drives, or worse, damage to the backplane's power layer.
Length Is the "Enemy"
For passive copper cables, SAS-3 (12G) signals typically have an effective transmission distance of no more than one meter when using 30 AWG wire gauge. If the rack span exceeds 0.8 meters, we strongly recommend using active cables or fiber optics; otherwise, bit error rate (BER) will sharply increase, leading to frequent drive rebuilds.
Beware the Compatibility Trap with "8i"
Some SFF-8654 8i interfaces support only PCIe NVMe protocols. If your backplane is dedicated to NVMe but you connect a SAS HBA card—even if the physical interface matches—the link layer will fail to establish communication. Ensure your backplane supports Tri-Mode operation, meaning it can automatically detect and handle SAS/PCIe/SATA signals.
IV. Industry Trends: How Long Will This Cable Survive?
With the widespread adoption of PCIe 5.0 and SAS-4 (24 Gbps), SFF-8654 has gradually replaced SFF-8643 as the dominant interconnect standard for next-generation servers. However, this "adapter cable" still holds irreplaceable value during the transition period:
Legacy Asset Protection: Preserves enterprises' significant investments in 12Gb/s SAS RAID cards from earlier eras.
Hybrid Storage Pools: Enables a single physical server to manage both traditional HDD arrays (via SAS cards) and high-end NVMe SSDs (provided the backplane supports protocol separation). Conclusion
The 2-Port SAS SFF-8643 to SFF-8654 8i cable is more than just a cable—it's the "translator" bridging generations of storage technology. The next time you bend down before your server to plug in this cable, remember: you're not merely connecting two interfaces, but also achieving the delicate balance between data center performance and cost efficiency.
Buying Tip: Look for the "SAS-3 Compliant" certification mark on the cable, and prefer silicone sheathing (soft and heat-resistant) over PVC material to ensure optimal airflow within racks and long-term reliability.
